APPLICATION EXAMPLE
P485 MODBUS TO PROFIBUS CONVERTER – USER GUIDE 9–5
System configuration

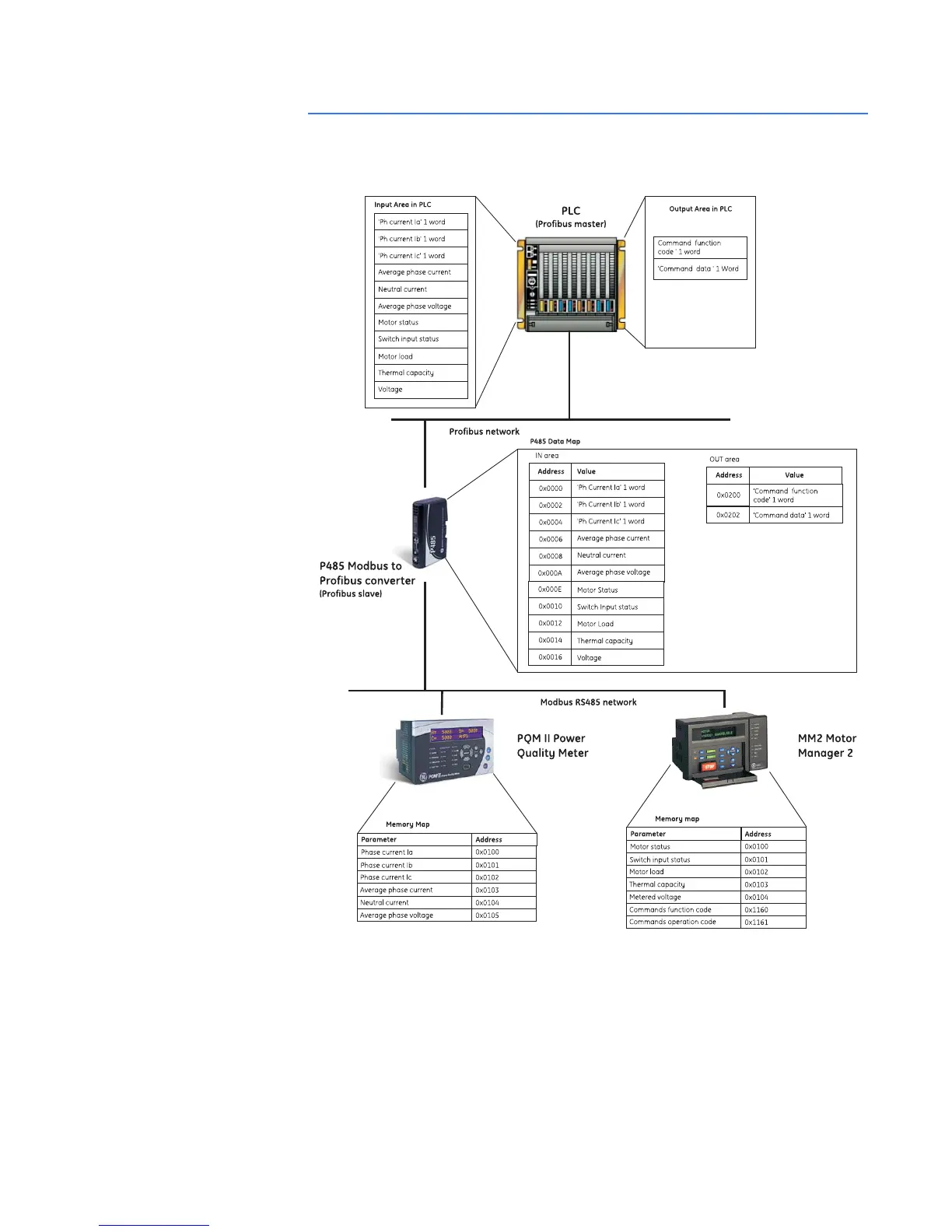

OVERVIEW An overview of the system configuration described in this document is shown below.
Figure 9-3: System configuration
The following procedures describe how to configure for the P485 with the PQMII and MM2.
It is assumed that the reader has some basic knowledge of the Modbus RTU protocol and
Profibus communication protocol.
