INSTALLATION INSTRUCTIONS
Installation Instructions
FINAL ASSEMBLY
20

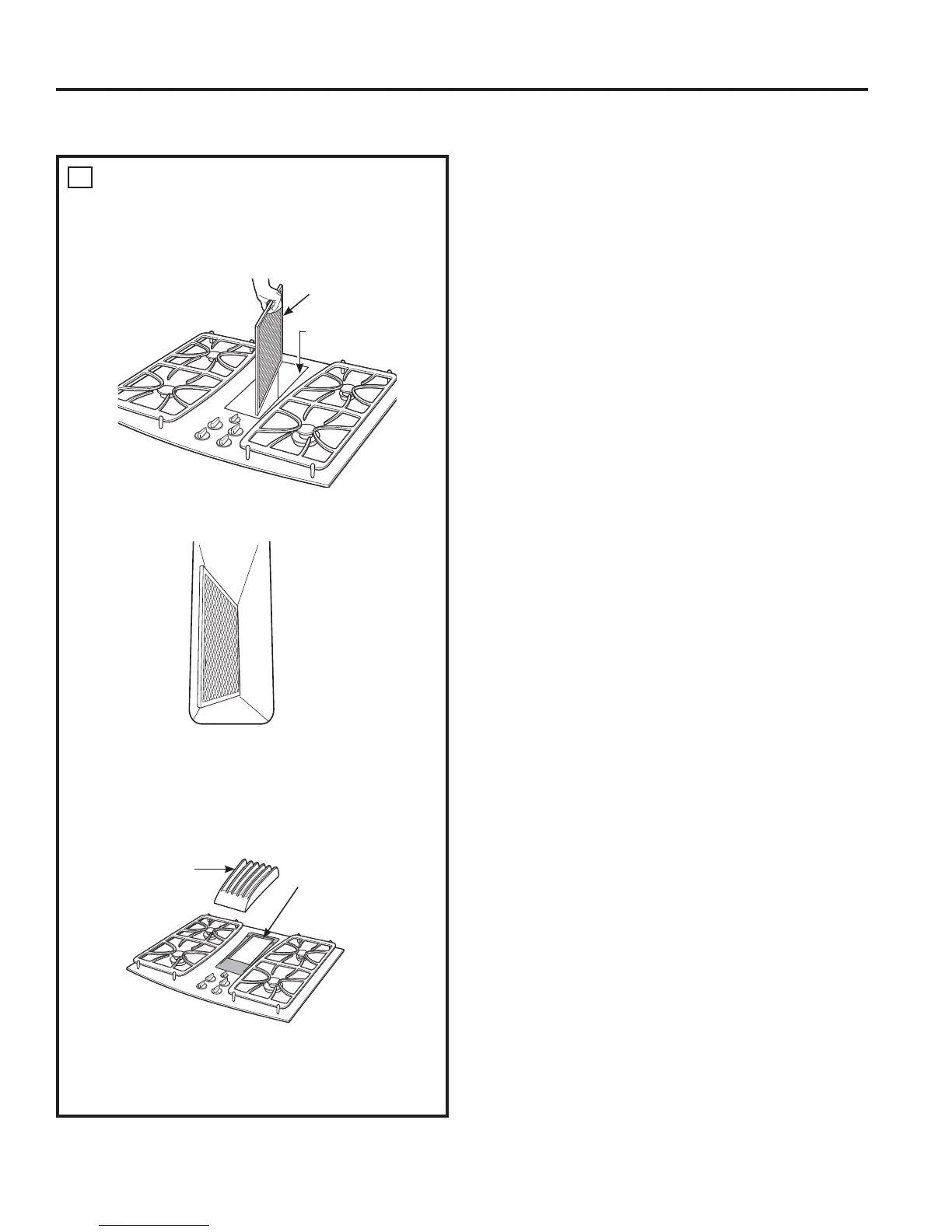

INSTALL DOWNDRAFT FILTER, VENT
GASKET AND VENT GRILLE
Do not operate the vent without the filter in place.
• Place the filter diagonally through the vent opening.
• Make sure it rests, at an angle, on the supports in the vent
opening.
• Fit the vent grille gasket around the edge of the downdraft
vent opening. Make sure the front of the gasket is installed
toward the front of the cooktop.
• Carefully place the vent grille onto the gasket on the
downdraft opening.
CHECK OPERATION OF DOWNDRAFT
• Turn the vent fan speed control to HI,MED and LO to
make sure all speeds operate correctly.
Vent Filter
Vent
Chamber
Grille
Vent Grille
Gasket
