GE Profile J2S968 SERIES User Manual

– 35 –
6. Disconnect the wiring harness connector
from the motor.
7. Remove the 3 mounting hex-head screws and
the motor.
Dual Fuel Range Fan Motor
All Gas Range Fan Motor
2
L
2L
1
L-1
CONVECTION
BAKE ELE.
2500W
CONVECTION BAKE
240V.
10.4A
10.4A
CONV-1
DLB
RELAY
N
L1-1
DOOR
SW
NO C
CONVEC
M
CONVECTION
FAN
CW
CCW
BROIL-1
L
2
L1
N
L-1
L1-1
DOOR
SW
BROIL
4000W
14.4A
CONVECTION ROAST
NO C
240V.
15A
15A
CONVEC
DLB
RELAY
M
CONVECTION
FAN
CW
CCW
L
1
N
CONVECTION BAKE
DBL RELAY
LOW SPEED
HI SPEED
M
CONVECTION
FAN

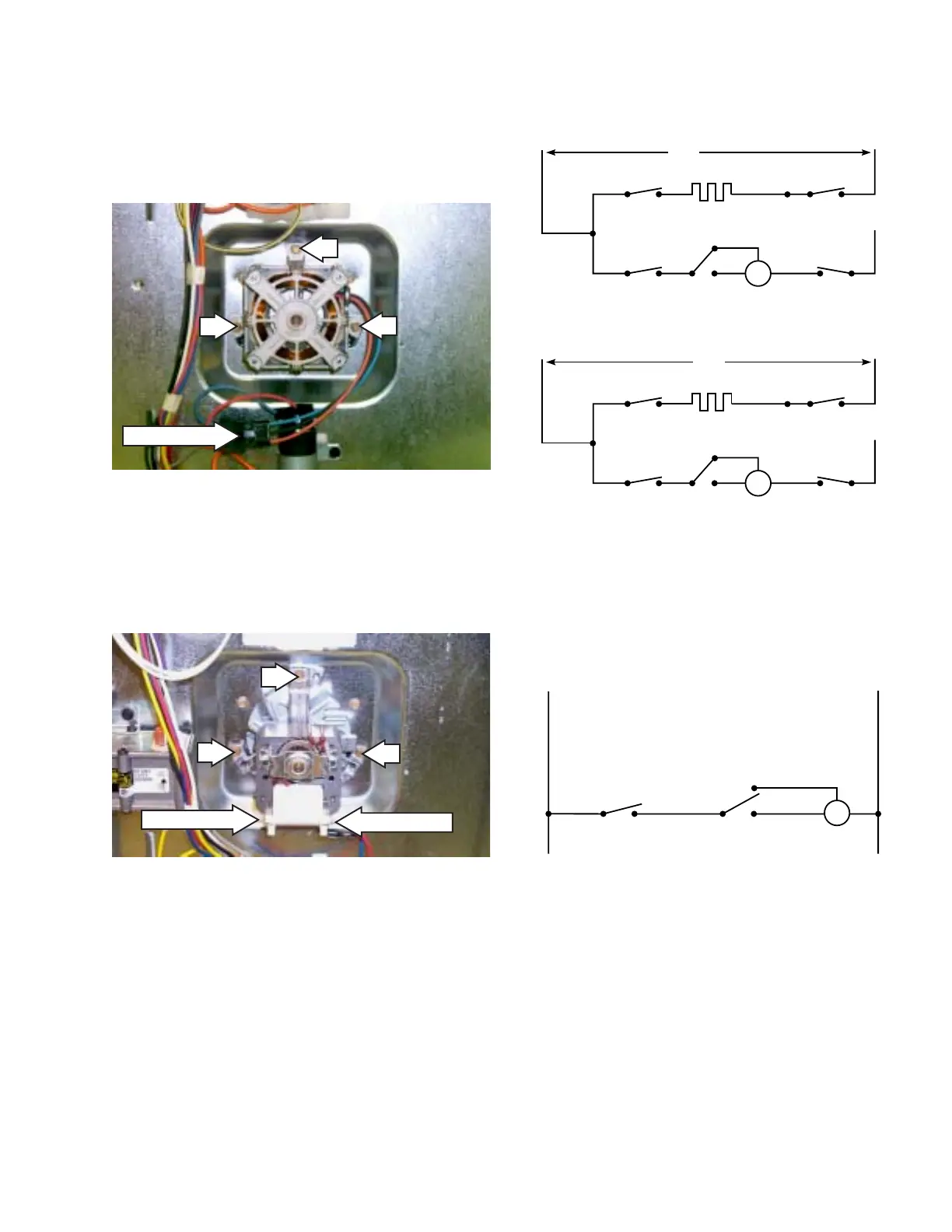

Dual Fuel Range Convection Fan Circuit
Disconnect
Disconnect
All Gas Range Convection Fan Circuit
If convection fan is not working, make the
following checks:
• Check the voltage from terminal (CF) to (N) on
control—it should read 120V in Convection
Bake or Roast mode. If not, replace the
control.
• If voltage is OK, check the convection fan
motor. It reads approximately 15 Ω to 20 Ω at
room temperature. Check to make sure the
fan shaft is not rubbing on the oven liner.
Disconnect
The dual fuel convection fan motor has an
approximate resistance value of 58 Ω.
The all gas convection fan motor has an
approximate resistance value of 19 Ω - 25 Ω.
Note: Make sure the anti-tip bracket is installed
correctly when pushing the range back into place.
