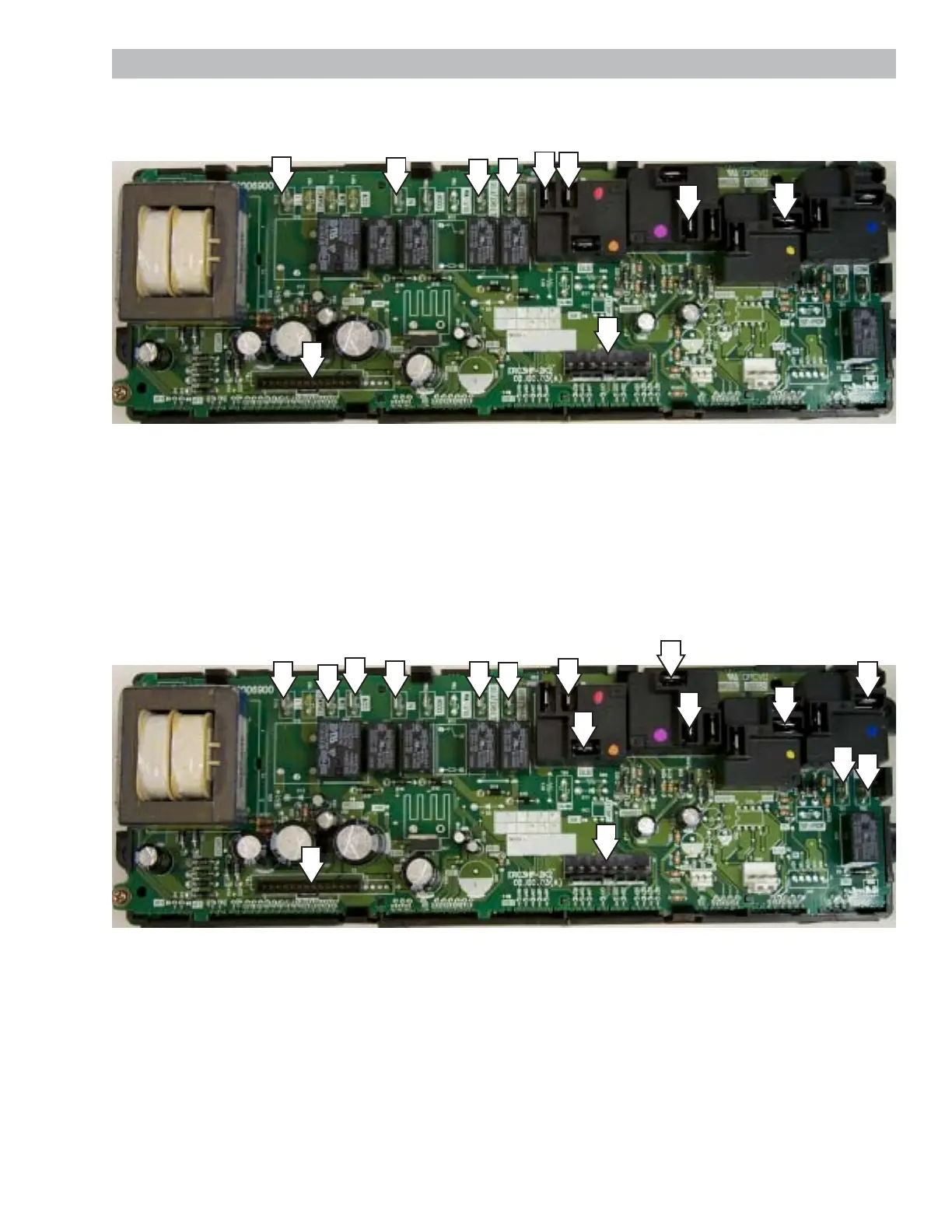

Electronic Oven Control (ERC) Pin Locator
All Gas Range with Convection Fan
Dual Fuel Range with Convection Fan
1
1
2
3
4
4
5
6
7
8
1
2
2
3
4
5
6
8
9
7
12
13
11
10
15
14
1 - 120 VAC Power In
2 - Convection Fan
3 - Power In (White)
4 - Cooling Fan
5 - Oven Light
6 - Power In (Red)
7 - Bake, Broil, and
Convection Element
8 - Power In (Black)
9 - Broil Element
10 - Bake Element
11 - Convection Element
12 - Door Lock Motor
13 - 120VAC Power In
14 - Keypanel Ribbon
15 - Meat Probe, Oven Sensor,
Door Lock/Unlock Switches
1 - 120-VAC Power In
2 - Cooling Fan
3 - Oven Light
4 - Convection Fan
5 - Broil Burner Glow-bar Igniter
6 - Bake Burner Glow-bar Igniter
7 - Meat Probe, Oven Sensor, Door Lock/Unlock Switches
8 - Keypanel Ribbon
