14
4

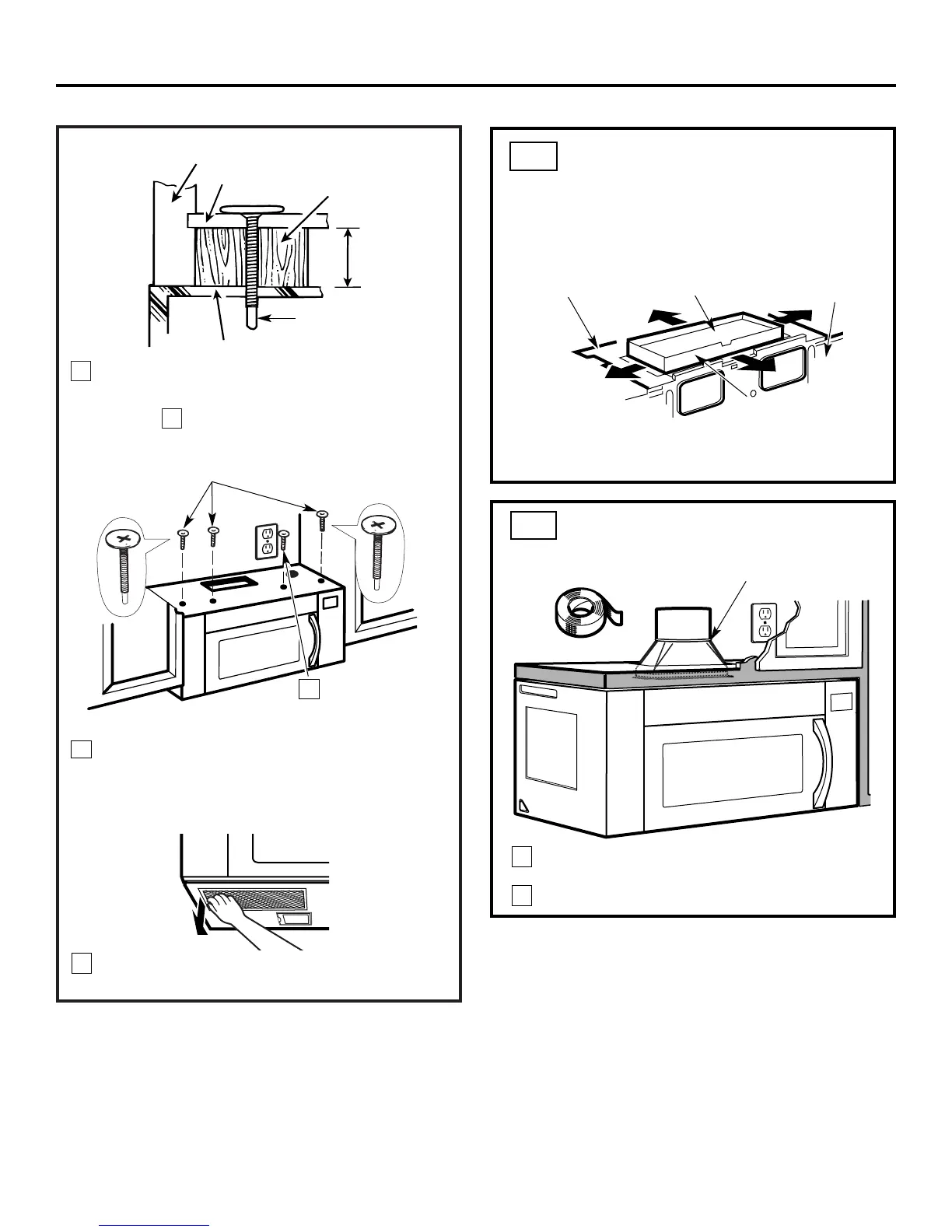

Attach the microwave oven to the top cabinet.
8
7
6
Cabinet Front
Cabinet Bottom Shelf
Tighten the remaining three screws to the top
of the microwave oven. (While tightening screws,
hold the microwave oven in place against the wall
and the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent to
Depth
of Cabinet
Recess
Insert 3 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
Tighten right
center screw
completely.
Install grease filters. See the Owner’s Manual
packed with the microwave.
Installation Instructions
ADJUST THE EXHAUST
ADAPTOR
A5.
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Microwave
For Front-to-Back or
Side-to-Side
Adjustment, Slide the
Exhaust Adaptor as
Needed
Blower Plate
Damper
CONNECTING DUCTWORK
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
A6.
House Duct
Self-Aligning Screw
5
To Next Page
