GE Profile Spacemaker JVM3670 User Manual

USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
C2.
19

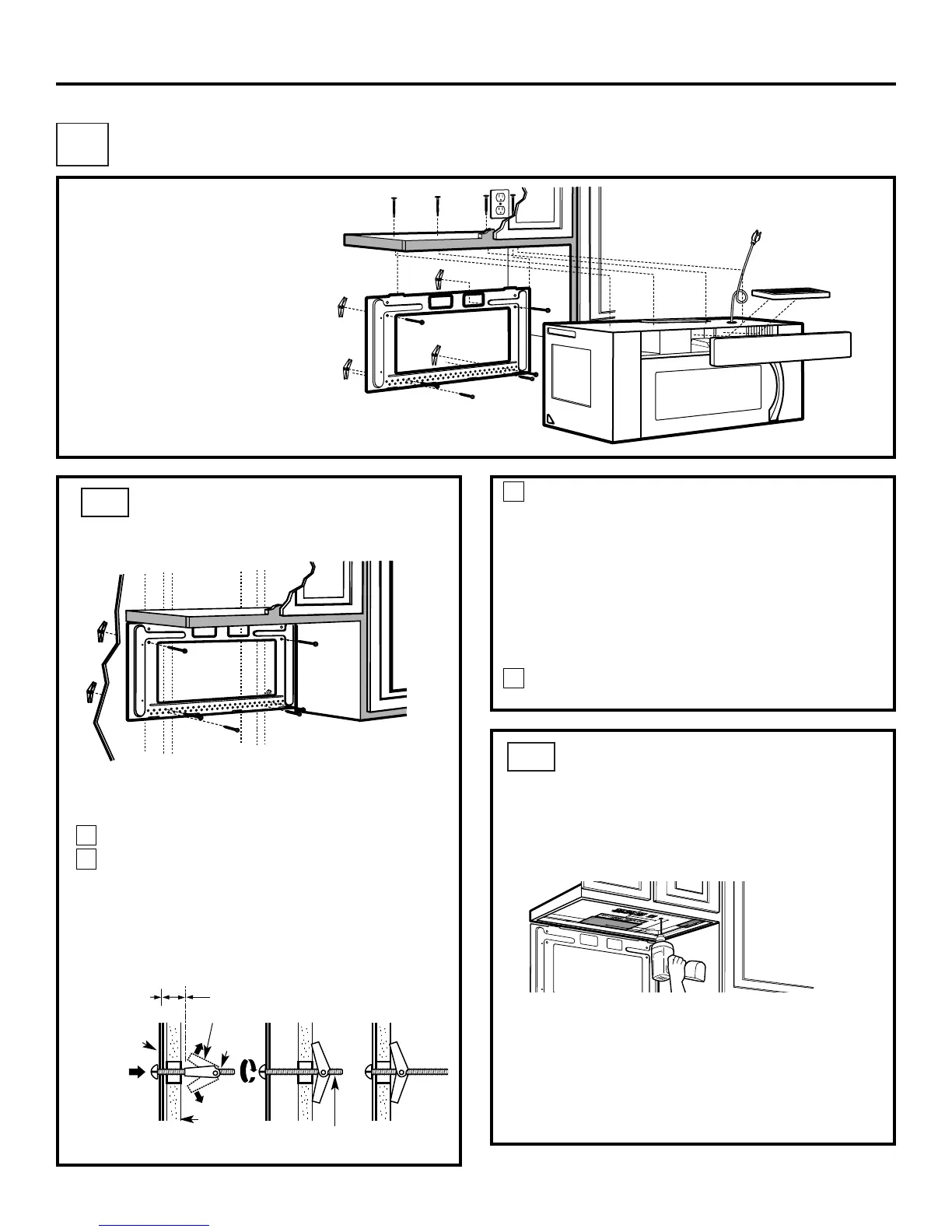

RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Microwave Assembly
C4. Adjust Blower
C5. Mount the Microwave Oven
C6. Install Charcoal Filter
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
Installation Instructions
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
C
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
4
3
ATTACH THE MOUNTING
PLATE TO THE WALL
C1.
Attach the plate to the wall using toggle bolts. At
least one wood screw must be used to attach the
plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to
3
⁄4″ onto each bolt.
1
Wall
Mounting
Plate
Spacing for Toggles
More Than Wall
Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
2

GE Profile Spacemaker JVM3670 Specifications

General

Brand	GE Profile
Model	JVM3670
Category	Microwave Oven
Type	Over-the-Range
Power	1000 Watts
Control Type	Electronic Touch
Turntable	Yes
Ventilation Fan	Yes
Sensor Cooking	Yes
Exhaust Fan	Yes
Color	Stainless Steel
Cooking Modes	Reheat, Defrost

Summary

BEFORE YOU BEGIN

IMPORTANT SAFETY INSTRUCTIONS

ELECTRICAL REQUIREMENTS

HOOD EXHAUST

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

Details one possible ductwork installation for top exhaust.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

Details one possible ductwork installation for back exhaust.

DAMAGE – SHIPMENT/INSTALLATION

PARTS INCLUDED

ADDITIONAL PARTS

TOOLS YOU WILL NEED

MOUNTING SPACE

PLACEMENT OF THE MOUNTING PLATE

REMOVING THE MICROWAVE OVEN FROM THE CARTON/ REMOVING THE MOUNTING PLATE

Instructions for safely removing the oven and its mounting plate from packaging.

FINDING THE WALL STUDS

Methods to locate wall studs for secure mounting plate installation.

DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

How to position the wall plate correctly under the cabinet.

ALIGNING THE WALL PLATE

Steps for accurately aligning the mounting plate on the wall.

INSTALLATION TYPES

OUTSIDE TOP EXHAUST (VERTICAL DUCT)

Instructions for venting exhaust upwards through a vertical duct.

OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)

Instructions for venting exhaust horizontally through a back duct.

RECIRCULATING (NON-VENTED DUCTLESS)

Instructions for non-vented, recirculating air installation.

BEFORE YOU USE YOUR MICROWAVE
