28
Installation Instructions

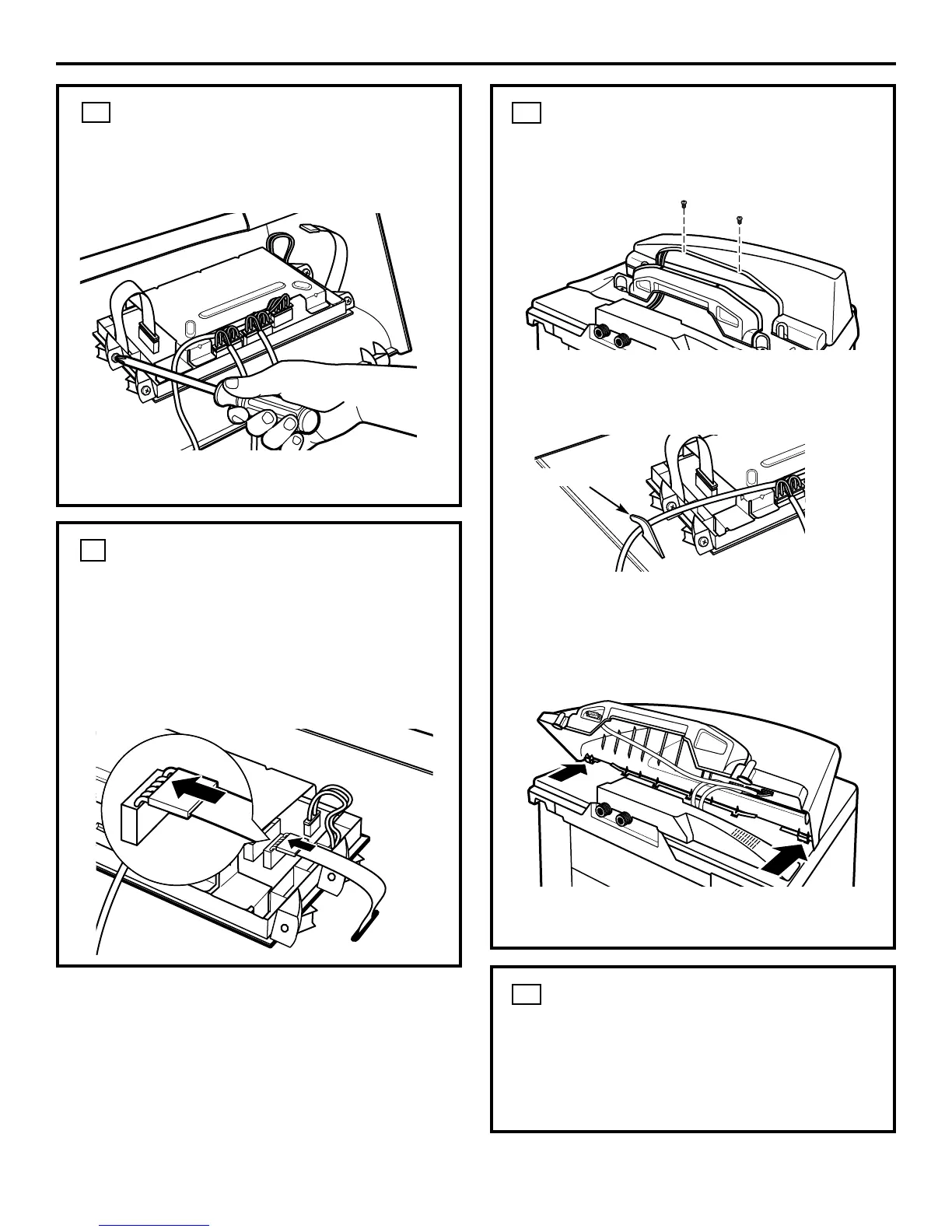

RECONNECT WASHER
CONTROL BOARD
Connect the washer control board to the
new backsplash by sliding the ribbon
connector on the new backsplash onto the
metal pins on the control board and pushing
in. Make sure the ribbon is not twisted
before inserting the connector.
ATTACH WASHER CONTROL
BOARD TO NEW BACKSPLASH
Replace the four screws removed from the
control board earlier.
The control board will now be on the
opposite side of the washer backsplash.
ATTACH WASHER BACKSPLASH
Insert the tabs on the bottom front of the
backsplash into the slots on the washer and
rotate the backsplash into place. Press the
rear of the backsplash down to make sure it
fits properly.
Secure the new backsplash to the washer
using the two long screws removed earlier.
Using the two small screws removed earlier,
screw the new washer backsplash onto the
rear cover.
RECONNECT POWER SUPPLY
TO WASHER AND DRYER
Screws
12
13
15
14
Strain Relief
Place the gray wire from the serial port under
the strain relief on the new backsplash.
• Plug the washer and dryer back in.
• Press the POWER buttons on both the
washer and dryer to make sure both
control boards are properly connected.
