GE PTWN8055MMS - Page 72

Copyright 2011
72

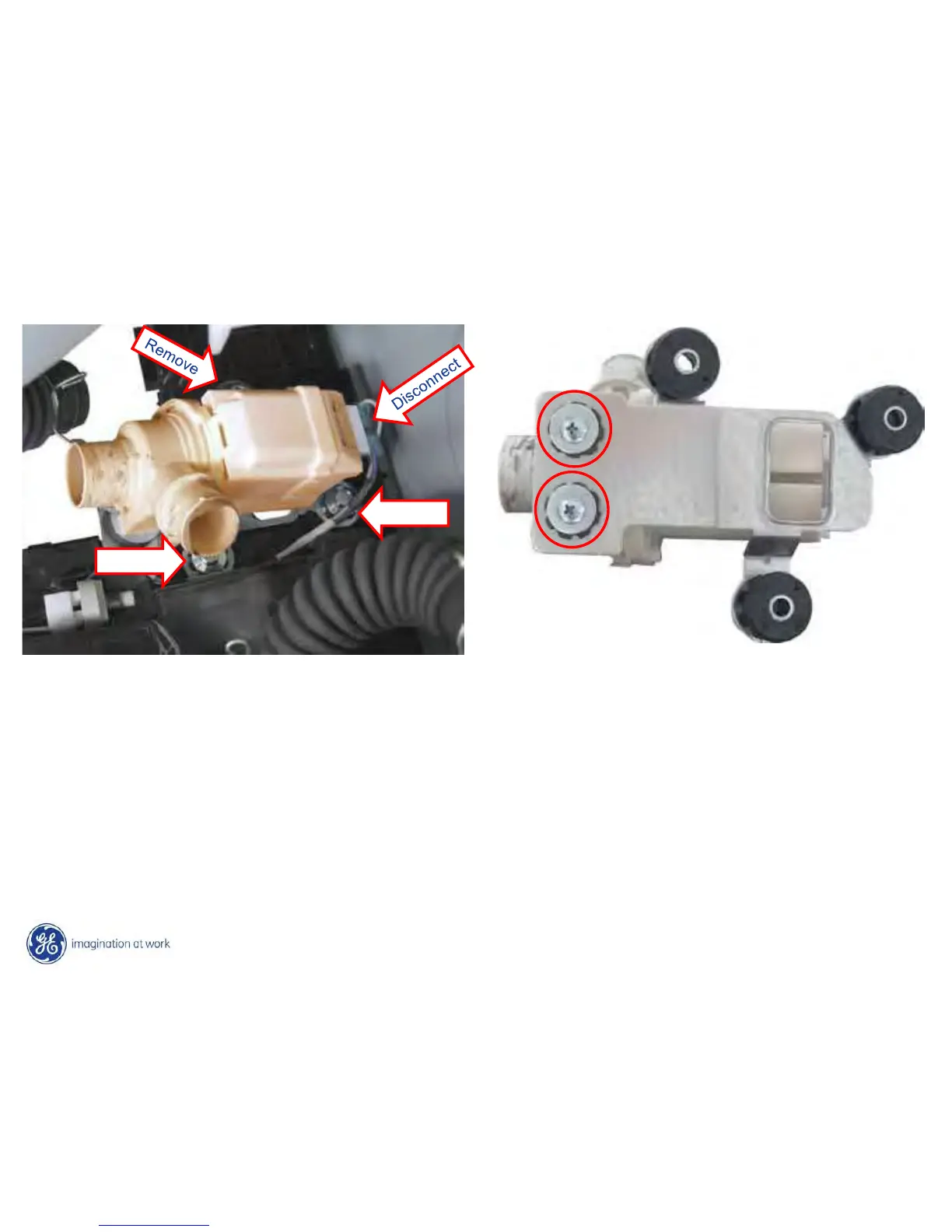

Drain Pump Removal
• Disconnect the drain pump wires.
• Remove (3) 10mm bolts that hold the drain pump to the washer frame.
• Remove the drain pump.
• When installing, apply a thin coat of sealing compound (WH60X15) to the
inner surface of the drain hoses to prevent leaks.
• Remove the 2 Phillips-head screws that hold the drain pump to the
mounting plate. Remove the drain pump.
Remove
Remove
