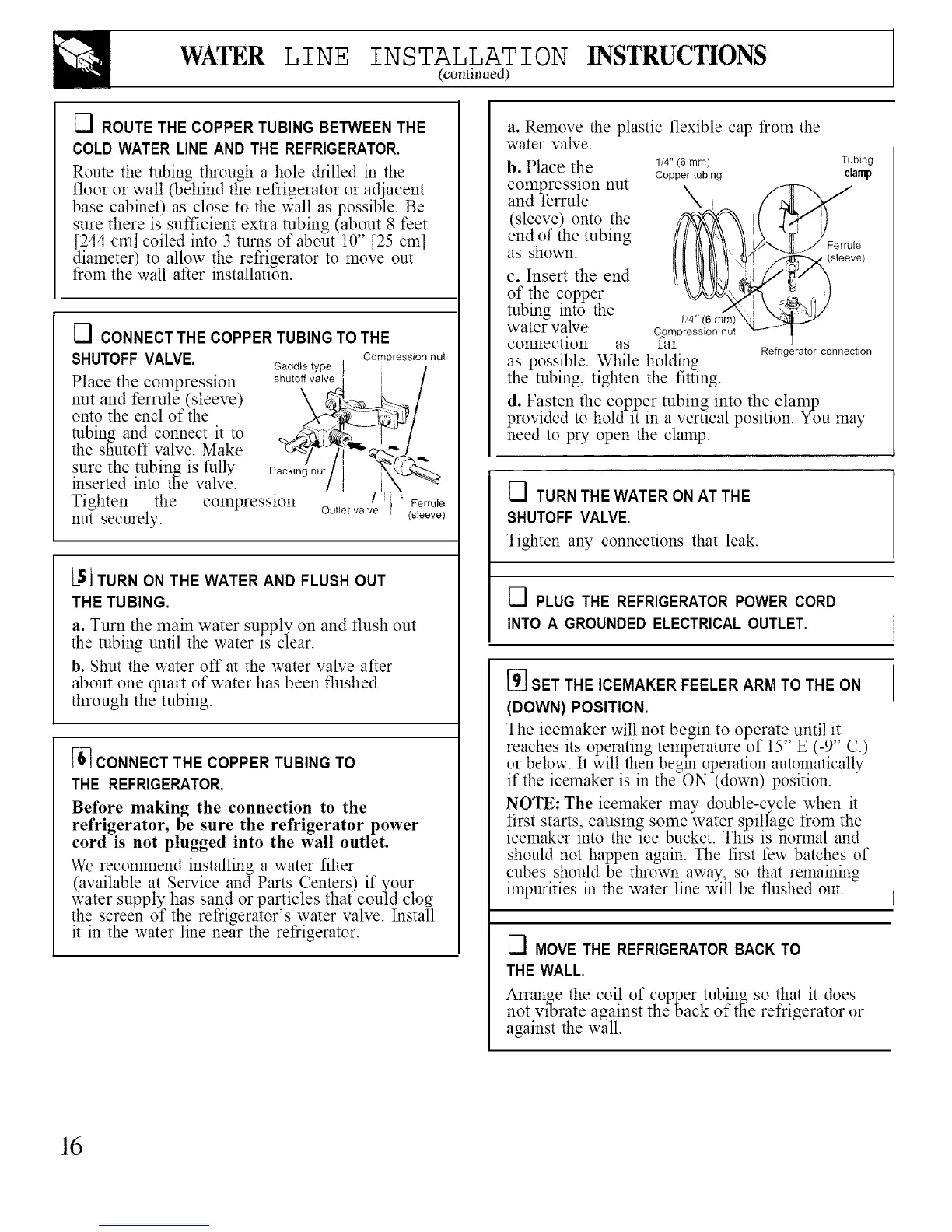

WATER LINE INSTALLATION INSTRUCTIONS
(continued)
L...I ROUTE THE COPPER TUBING BETWEEN THE
COLD WATER LINE AND THE REFRIGERATOR.
Route the tubing through a hole drilled in the
floor or wall (behind the refrigerator or adjacent
base cabinet) as close to the wall as possible. Be
sure there is sufficient extra tubing (about 8 feet
[244 cm] coiled imo 3 turns of about 10" [25 cm]
diameter) to allow the refrigerator to move out
from tile wall alter installation.
[] CONNECT THE COPPER TUBING TO THE
SHUTOFF VALVE.
Place the compression
nut and ferrule (sleeve)
onto the encl of the
tubing and connect it to
the shutoff valve. Make
sure the tubing is fully
inserted into the valve.
Tighten the
nut securely.
Compression nut
Saddle type _tu_l
shutoff valve I
Packing nut
Ferrule
Outlet valve (sleeve)
compression
5L_ TURN ON THE WATER AND FLUSH OUT
THE TUBING.
a. Turn the main water supply on and flush out
the tubing until the water is clear.
b. Shut the water off at the water valve after
about one quart of water has been flushed
through the tubing.
r-z]
CONNECT THE COPPER TUBING TO
THE REFRIGERATOR.
Before making the connection to the
refrigerator, be sure the refrigerator power
cord is not plugged into the wall outlet.
Vv_ recommend installing a water filter
(available at Service and Parts Centers) if your
water supply has sand or particles that could clog
the screen of the refrigerator's water valve. Install
it in the water line near the refrigerator.
a. Remove the plastic flexible cap from the
water valve.
b. Place the 1/4" (6 mm) Tubing
Copper tubing clamp
compression nut
and ferrule
(sleeve) onto the
end of the tubing Ferrule
as shown. , (sleeve)
c. Insert the end
of the copper
tubing into the
t i4" (6 mm)
water valve Compression nut
connection as far
as possible. While holding Refrigerator connection
the tubing, tighten the fitting.
d. Fasten the copper tubing into the clamp
provided to hold it in a vertical position. You may
need to pry open the clamp.
[] TURN THE WATER ON AT THE
SHUTOFF VALVE.
Tighten any connections that leak.
[] PLUG THE REFRIGERATOR POWER CORD
INTO A GROUNDED ELECTRICAL OUTLET.
[_ SET THE ICEMAKER FEELER ARM TO THE ON
(DOWN) POSITION.
The icelnaker will not begin to operate until it
reaches its operating temperature of 15" E (-9" C.)
or below. It will then begin operation automatically
if the icemaker is in the ON (down) position.
NOTE: The icemaker may double-cycle when it
first starts, causing some water spillage t_om the
icemaker into the ice bucket. This is normal and
should not happen again. The first few batches of
cubes should be thrown away, so that remaining
impurities in the water line will be flushed out.
[] MOVE THE REFRIGERATOR BACK TO
THE WALL.
Arrange the coil of copper tubing so that it does
not wbrate against the back of the refrigerator or
against the wall.
16
