49-1000610 Rev. 0 17
INSTALLING THE DOOR PANEL (Cont)

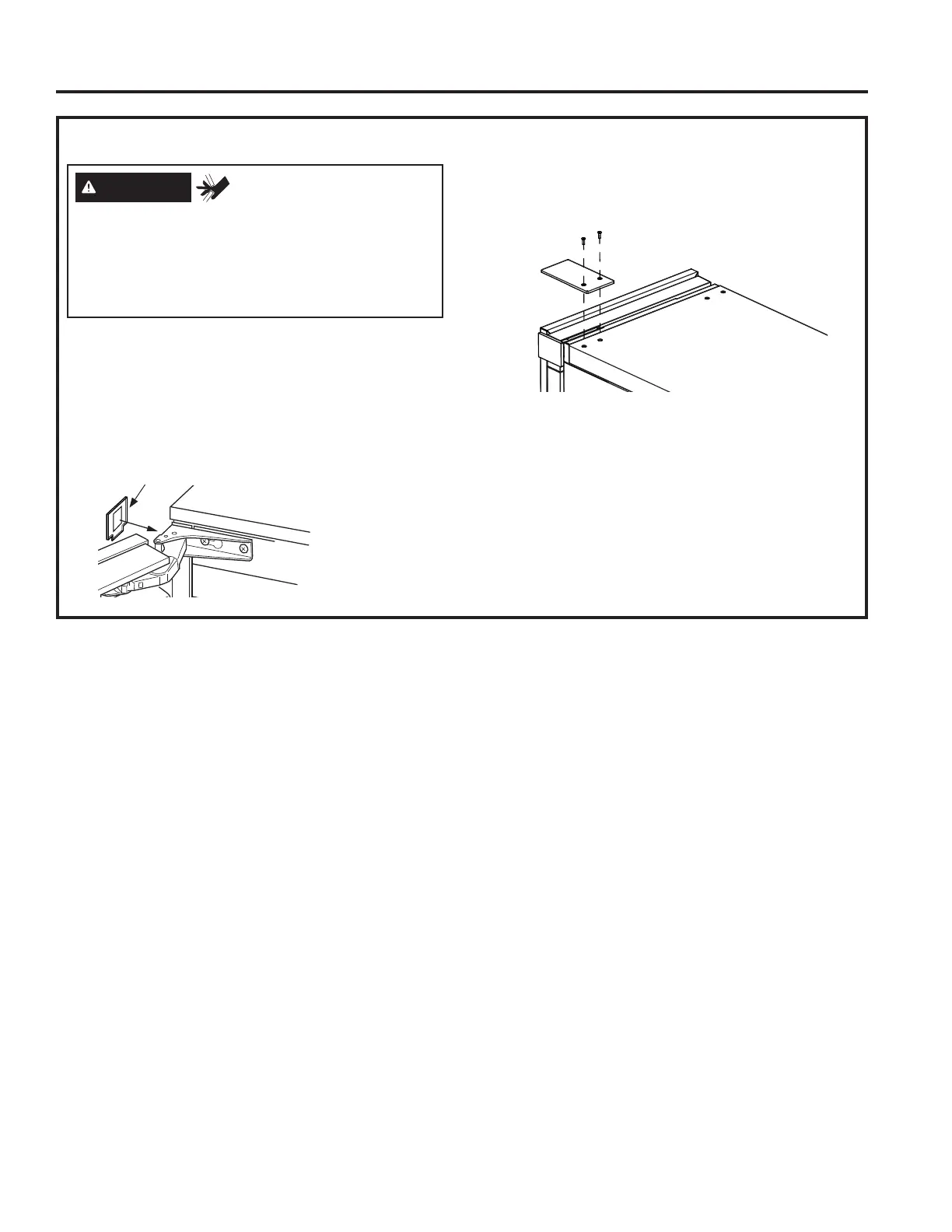

8. On free-standing locations, attach the side covers
from the hardware packet over the hinge by peeling
off the covering over the adhesive and placing it
over the side of the hinge. Note:,IWKHXQLWLVEHLQJ
built-in, a screw can be used to screw into the
cabinet instead on installing the side covers.
9. Also on free standing applications, attach the top
hinge cover from hardware packet with the
2 screws provided.
Side Cover
Installation Instructions
INSTALLATION INSTRUCTIONS
WARNING
Door Hinge Pinch Point
Hazard
,PSURSHULQVWDOODWLRQFDQOHDGWRDILQJHUSLQFKSRLQW
KD]DUGQHDUWKHKLQJHZKHQRSHUDWLQJWKHGRRU
For installations that are not under a counter, follow
the installation instructions. A protective guard is
provided for limiting access to the door hinge.
