49-80797 15
Installation
INSTALLATION

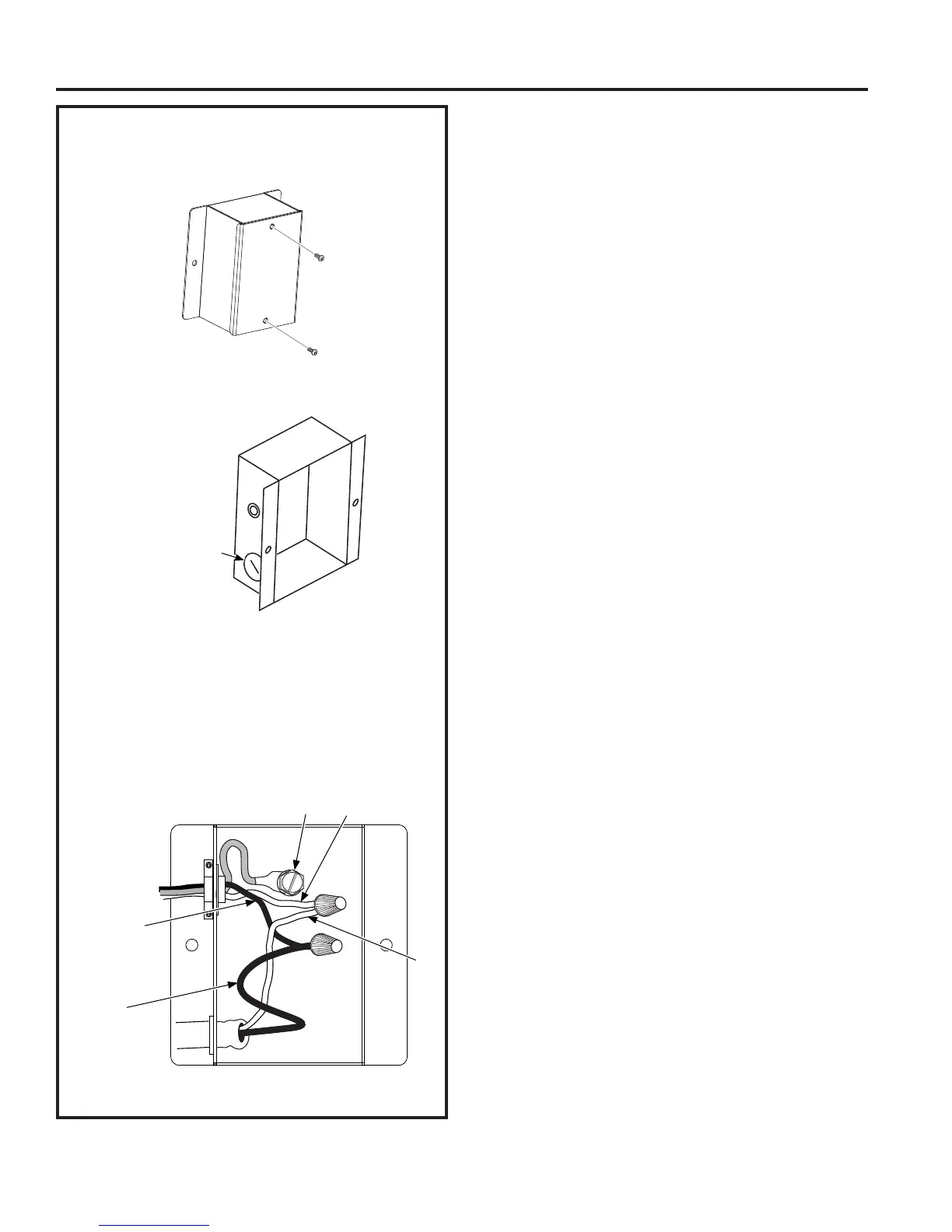

ELECTRICAL CONNECTION
1. Remove the electrical junction box cover.
2. Remove the electrical box knockout.
3. Feed the Power Supply Cable through the hole
and secure with a strain relief.
4. Attach the white lead of the power supply (A) to
the white lead of the range hood (D) with a wire
nut. Attach the black lead of the power supply (B)
to the black lead of the range hood (C) with a wire
nut. Connect the house ground wire under the
green grounding screw (E).
5. Reattach the electrical junction box cover.
House Wiring
A
E
D
C
B
Hood Wiring
Electrical Box
Knockout with
Strain Relief
To Next Page
