IC200ACC302
Input Simulator
The VersaMax Input Simulator (IC200ACC302) has 16 switches that can be
used to easily turn on or off any input on a 24 V DC VersaMax discrete input or
mixed I/O module.
+24 0V
OFF
SW1
OFF
SW2
OFF
SW3
OFF
SW4
OFF
SW5
OFF
SW6
OFF
SW7
OFF
SW8
OFF
SW9
OFF
SW10
OFF
SW11
OFF
SW12
OFF
SW13
OFF
SW14
OFF
SW15
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
SW16
9.5mm
(0.375in)
28.6mm
(1.125in)
94mm (3.7in)
The module must be installed on an I/O Carrier with Box Style Terminals
(IC200CHS002) or on a Connector-Type I/O Carrier with Box-Type Interposing
Terminals (IC200CHS012) or Auxiliary Terminals (IC200TBM002). It can be
installed in either the A or B terminals of the carrier.

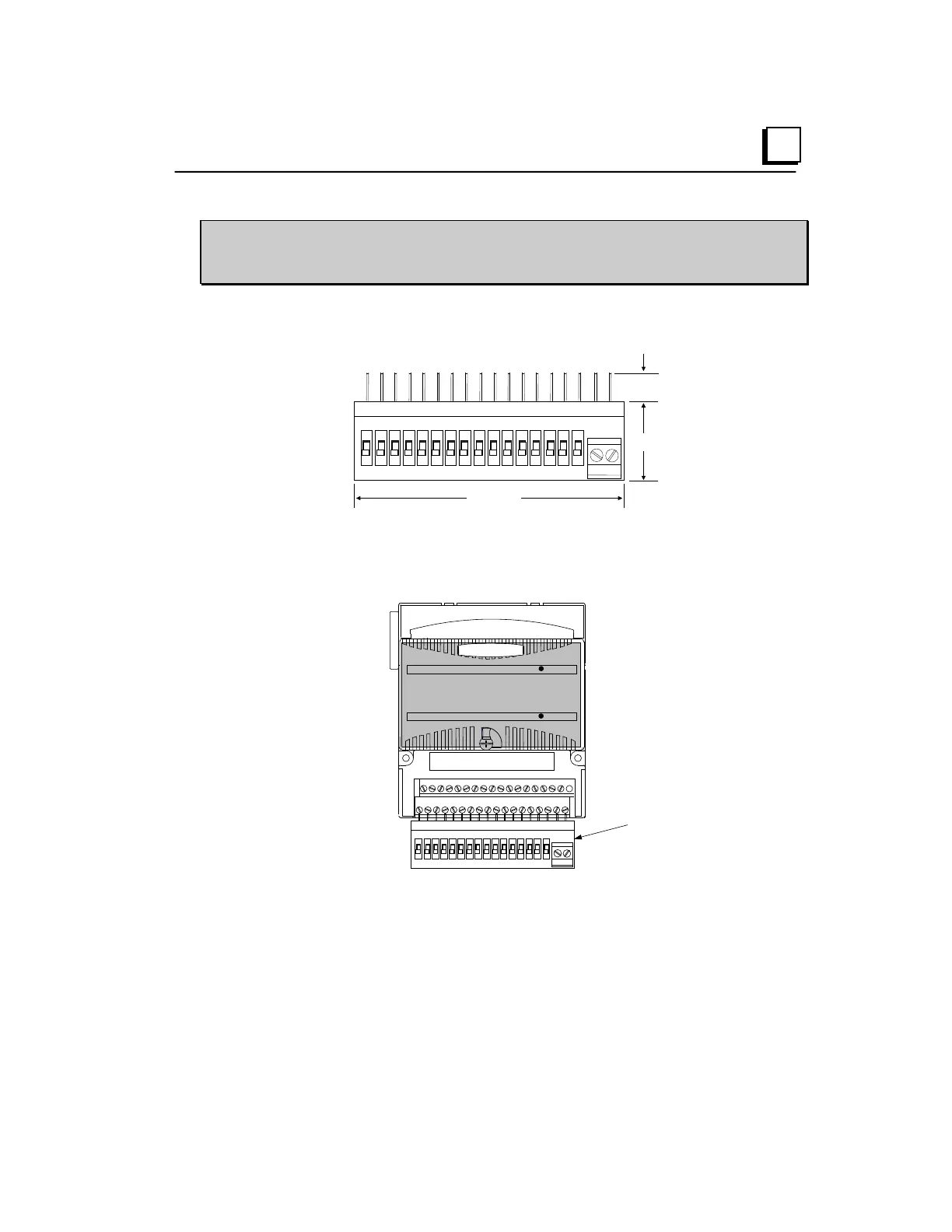

Input Simulator Installed
on B Terminals
of CHS002
The Input Simulator can be installed in either the A or B terminals of the carrier,
depending on which module inputs should be controlled. After inserting the pins
of the Input Simulator, tighten down the screws on the carrier.
A separate external source of 24 V DC power is required. The power supply
must be appropriate for the I/O module being controlled. The power supply
connection terminals on the Input Simulator accommodate one solid or
stranded AWG #14 (avg. 2.1mm
2
cross section) to AWG #22 (avg. 0.36mm
2
cross section) wire, or two wires up to AWG #18 (avg. 0.86mm
2
cross section).

GE VersaMax IC200MDL240 Specifications

General

Voltage	24 VDC
Number of Inputs/Outputs	16 Inputs / 16 Outputs
Series	VersaMax
Humidity	5 to 95% non-condensing
Product Type	Digital I/O Module
Input Current	4 mA
Isolation	1500 VAC
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40 to 85 °C
