GE Voluson 730Expert - Section 5-12 Mechanical Descriptions

GE HEALTHCARE - KRETZTECHNIK VOLUSON® 730EXPERT (BT03)
D
IRECTION 105899, REVISION 3 DRAFT (APRIL 29, 2008) SERVICE MANUAL
Chapter 5 - Components and Functions (Theory) 5-45
Section 5-12
Mechanical Descriptions
5-12-1 Physical Dimensions

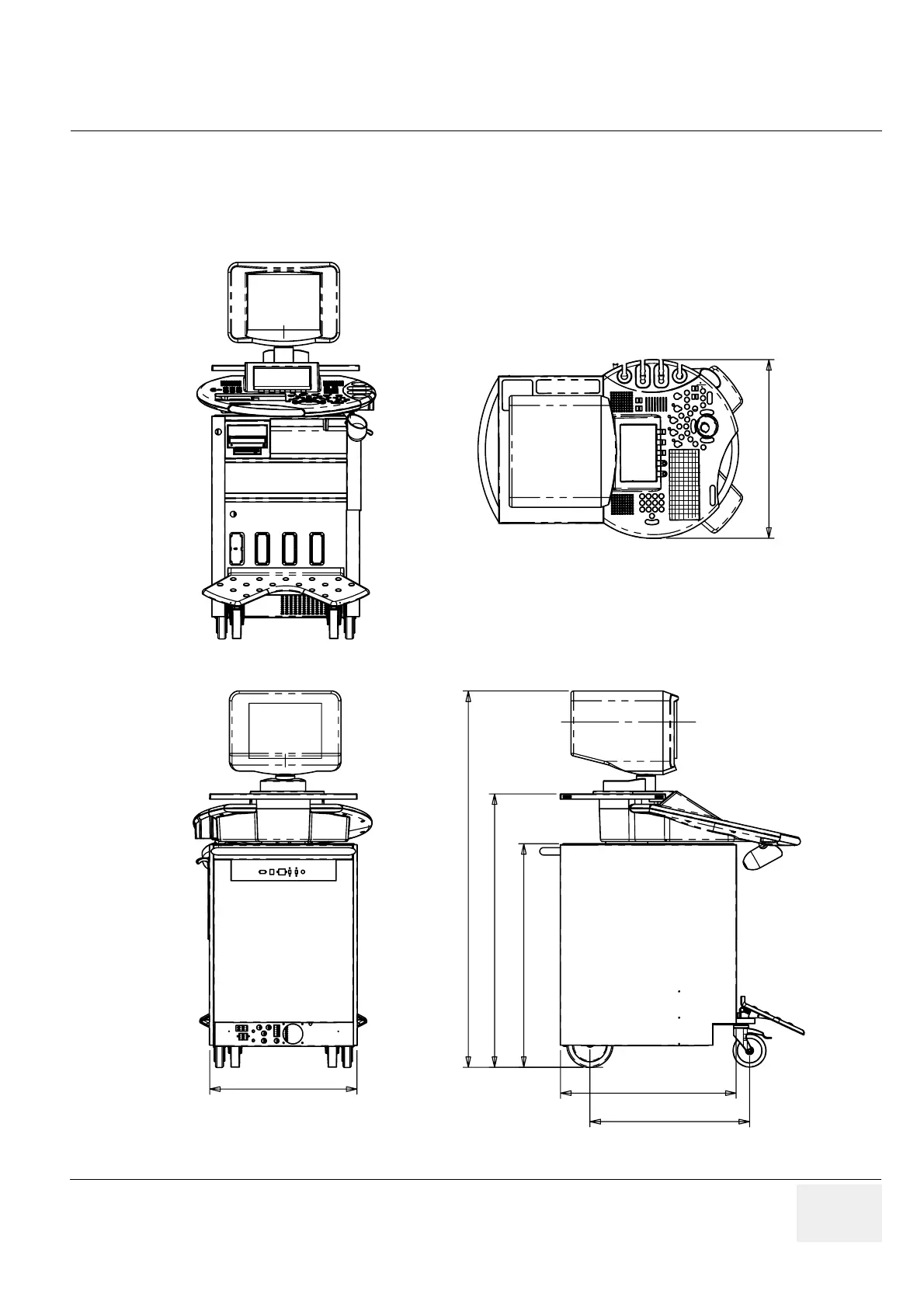

Figure 5-29 Physical Dimensions
668
607,6
8
5
1
,
5
1
0
4
1
,
1
1
4
1
5
6
7
8
,
3
560,5
