GE HEALTHCARE - KRETZTECHNIK VOLUSON® 730EXPERT (BT03)
D
IRECTION 105899, REVISION 3 DRAFT (APRIL 29, 2008) SERVICE MANUAL
Chapter 1 - Introduction 1-5

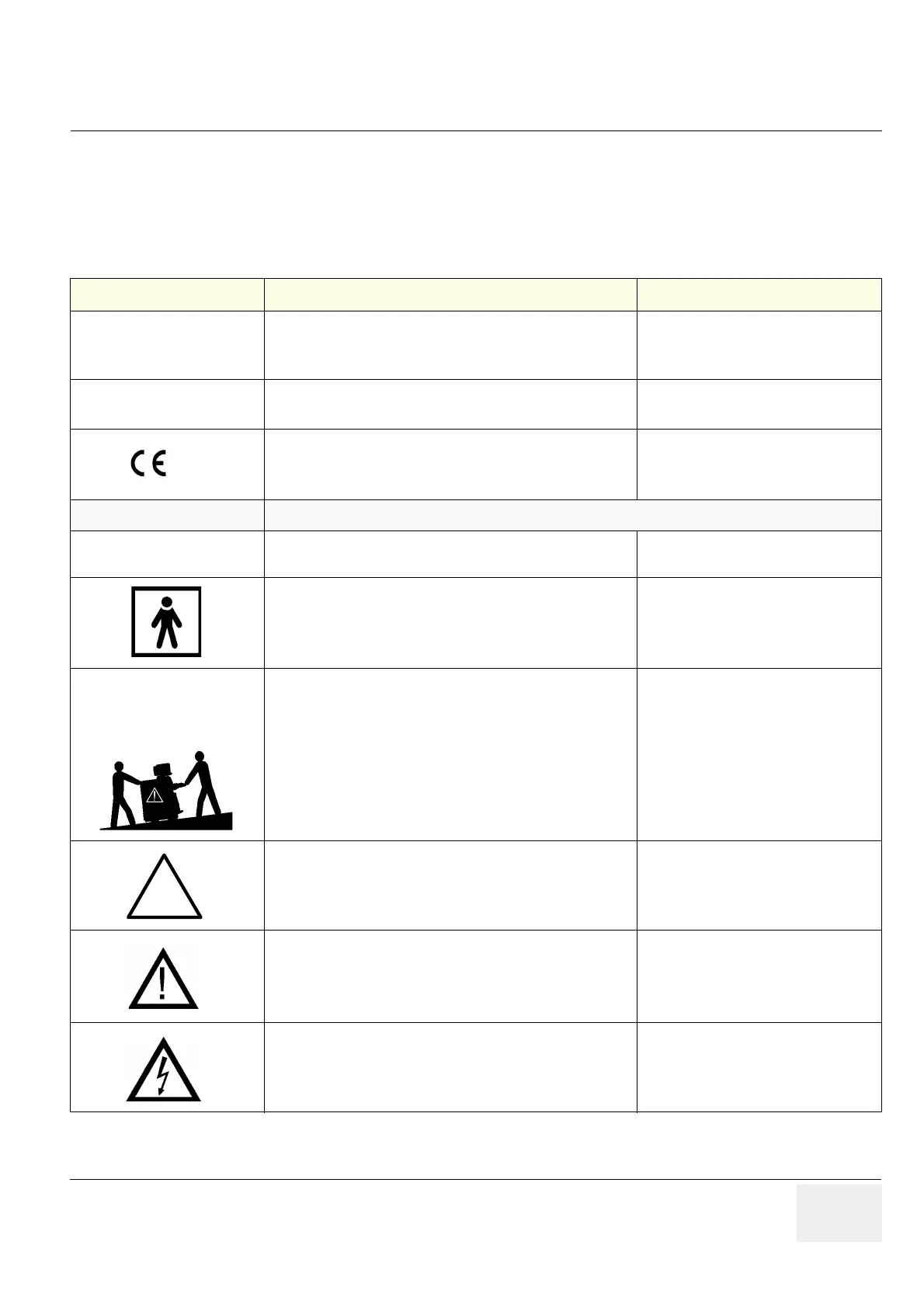

1-2-3 Product Icons
The following table describes the purpose and location of safety labels and other important information
provided on the equipment.
Table 1-5 Product Icons
LABEL/SYMBOL PURPOSE/MEANING LOCATION
Identification and Rating Plate
Manufacturer's name and address
Model and serial numbers
Electrical ratings
Rear side of the unit
Monitor rear side
On each probe
Device Listing/Certification
Labels
Laboratory logo or labels denoting conformance with industry
safety standards such as UL or IEC.
Rear side of the unit
Rear side of the monitor
Council Directive 93/42/EEC concerning medical devices:
The CE mark affixed to the equipment testifies compliance to the
directive.
Rear side of the unit
on the plug of each probe
Type/Class Label
Used to indicate the degree of safety or protection.
IP Code (IPX 1)
IP Code (IPX 7)
Indicates the degree of protection provided by the enclosure per
IEC 529. IPX 1 and IPX 7 indicates drip proof.
Footswitch
Probes
Equipment Type BF (man in the box symbol) IEC 878-02-03
indicates B Type equipment having even more electrical isolation
than standard Type B equipment because it is intended for
intimate patient contact.
Probe connectors
Front side of the ECG-preamplifier (MAN)
Rear of Power Supply
“CAUTION
This unit weighs...
Special care must be used to
avoid..."
This precaution is intended to prevent injury that may result if one
person attempt to move the unit considerable distances or on an
incline due to the weight of the unit.
Used in the Service and User Manual
which should be adjacent to equipment at
all times for quick reference.
"CAUTION" The equilateral triangle is usually used in
combination with other symbols to advise or warn the user.
Various
ATTENTION - Consult accompanying documents " is intended to
alert the user to refer to the operator manual or other instructions
when complete information cannot be provided on the label.
Rear side of Power Supply
"CAUTION - Dangerous voltage" (the lightning flash with
arrowhead in equilateral triangle) is used to indicate electric
shock hazards.
Rear side of Monitor
0123
