GE HEALTHCARE - KRETZTECHNIK VOLUSON® 730EXPERT (BT03)
D
IRECTION 105899, REVISION 3 DRAFT (APRIL 29, 2008) SERVICE MANUAL
1-6 Section 1-2 - Important Conventions
"Mains OFF" Indicates the power off position of the mains power
switch.
Rear of system at mains switch (F1)
"OFF/Standby" Indicates the power off/standby position of the
power switch.
CAUTION
This Power Switch DOES NOT ISOLATE Mains Supply
Adjacent to On-Off/Standby switch left
below the Control panel.
"Mains ON" Indicates the power on position of the mains power
switch.
Rear of system at mains switch (F1)
ON switch of the isolation transformer for auxiliary devices.
Rear of system at the switch for auxiliary
devices (F2)
OFF switch of the isolation transformer for auxiliary devices.
Rear of system at the switch for auxiliary
devices (F2)
"Protective Earth" Indicates the protective earth (grounding)
terminal.
Internal, Rear of Power Supply
"Equipotentiality" Indicates the terminal to be used for connecting
equipotential conductors when interconnecting (grounding) with
other equipment.
Rear of Power Supply
DANGEROUS ELECTRIC VOLTAGE.
Pull the mains plug before opening the unit!
Rear of Power Supply
(if “new” version of CPN80-81 is installed)
Waste Electrical and Electronic Equipment (WEEE) Disposal.
This symbol indicates that waste electrical and electronic
equipment must not be disposed as unsorted municipal waste
and must be collected separately. Please contact an authorized
representative of the manufacturer for information concerning the
decommissioning of your equipment.
Rear side of the unit
on the plug of each probe
(availability depends on delivery status)
These symbols indicate that at least one of the six hazardous
substances of the China RoHS Labelling Standard is above the
RoHS limitation.
The number inside the circle is referred to as the Environmental
Friendly Use Period (EFUP). It indicates the number of years that
the product, under normal use, will remain harmless to health of
humans or the environment.
EFUP = 10 for Short Use Products
EFUP = 20 for Medium Use Products
Rear side of the unit
on the plug of each probe
(availability depends on delivery status)
This product consists of devices that may contain mercury, which
must be recycled or disposed of in accordance with local, state,
or country laws. (Within this system, the backlight lamps in the
Touch Panel contain mercury.)
Rear side of the unit
on rear side of the Touch Panel
(availability depends on delivery status)

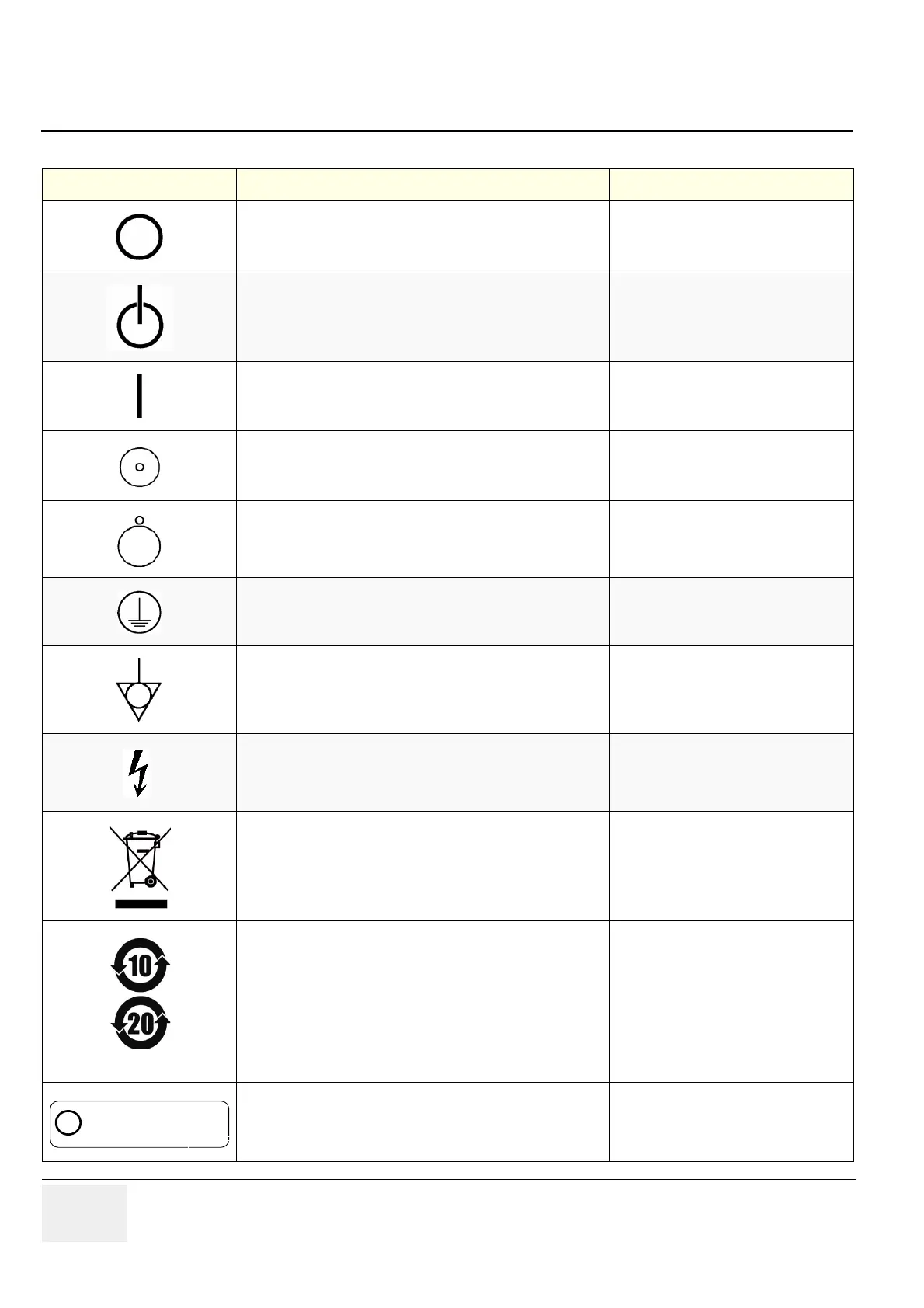

Table 1-5 Product Icons (Continued)
LABEL/SYMBOL PURPOSE/MEANING LOCATION
LAMP CONTAINS MERCURY,
DISPOSE ACCORDING TO
STATE/LOCAL LAW
+J
KTD100272_2
