GE HEALTHCARE - KRETZTECHNIK VOLUSON® 730EXPERT (BT03)
D
IRECTION 105899, REVISION 3 DRAFT (APRIL 29, 2008) SERVICE MANUAL
3-10 Section 3-5 - Connection of Auxiliary Devices
3-5-2 Monitor Connection
NOTE: The monitor comes already installed with the system.
3-5-3 Foot Switch Connection
NOTE: After physical connection, adjust the Footswitch (Left/Right) as described in
Section 3-7-5 "Remote Control Selection" on page 3-40.

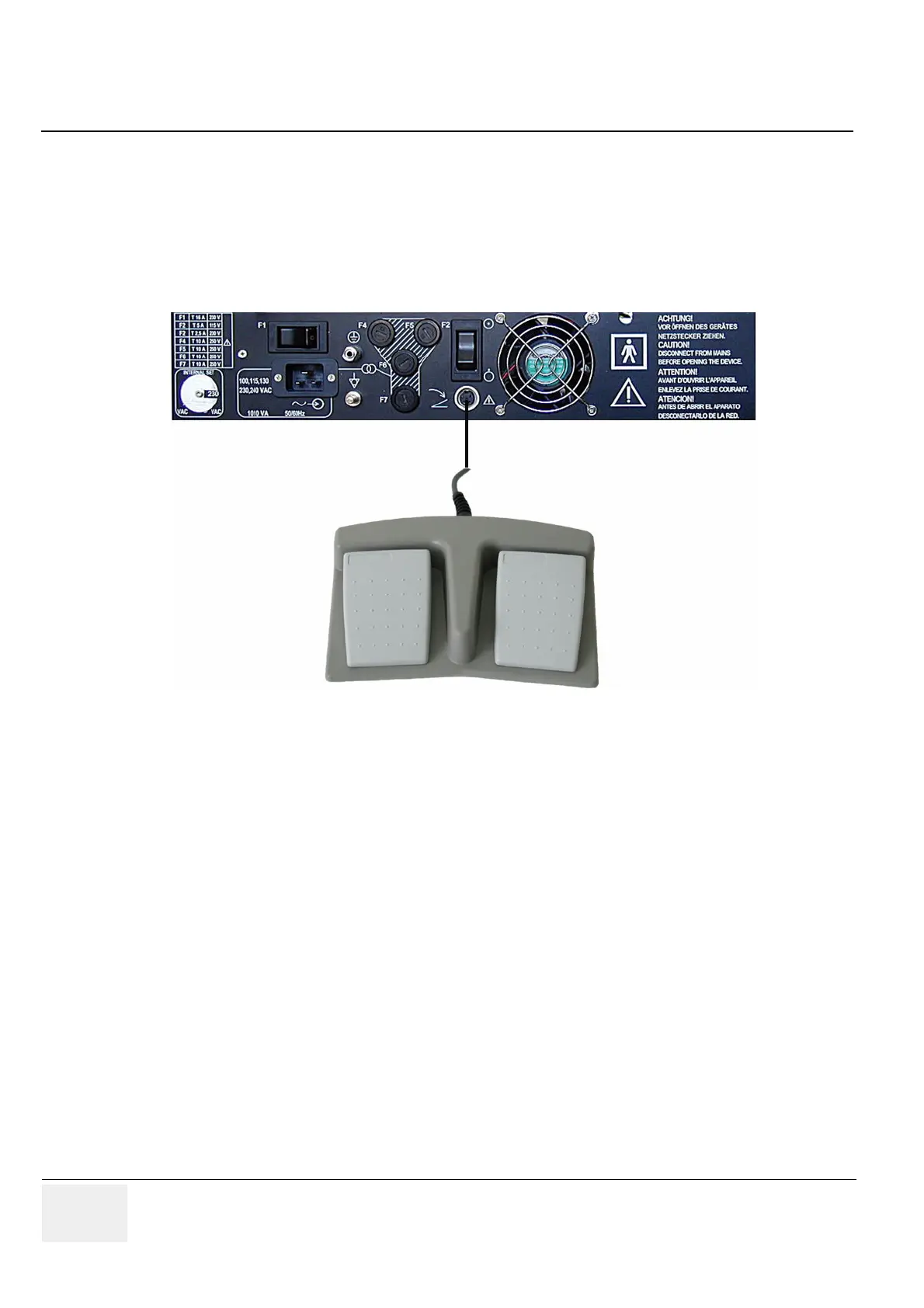

Figure 3-7 Foot Switch Connection Scheme
