GE HEALTHCARE - KRETZTECHNIK VOLUSON® 730EXPERT (BT03)
D
IRECTION 105899, REVISION 3 DRAFT (APRIL 29, 2008) SERVICE MANUAL
3-44 Section 3-8 - System Configuration
3-8-3 External I/O Connection Panel (GES)

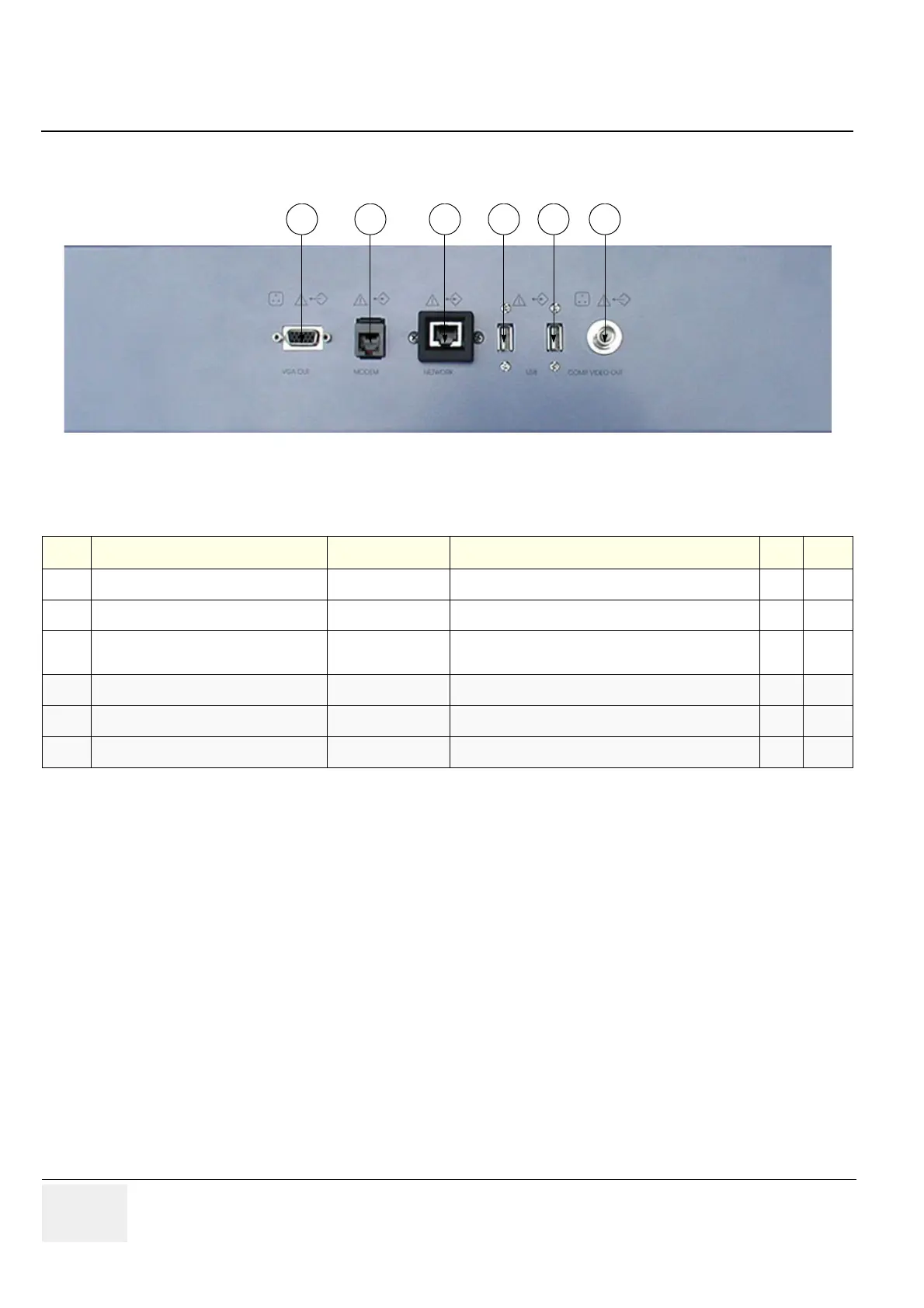

Figure 3-49 External I/O Panel Connectors
Table 3-8 External I/O Connector Descriptions
Item Connector Name Table Number Description
1
VGA OUT
Table 3-9 print out VGA signal with monitor/printer
2
MODEM
Table 3-10 RJ-11 with global adapter kit for modem connection
3
NETWORK
Table 3-11
DICOM input/output
twisted pair RJ-45 10/100 megabit/s
4
USB-1
Table 3-12 USB-2.0 port
5
USB-2
Table 3-12 USB-2.0 port
6
COMP VIDEO OUT
Table 3-13 BNC Connector, Color Video Output
1 2 3 4 5 6
