GE Zenith Controls MX150 User Manual

■
22 GE Zenith Controls
■
MX150 Operation and Maintenance Manual (70R-2000)

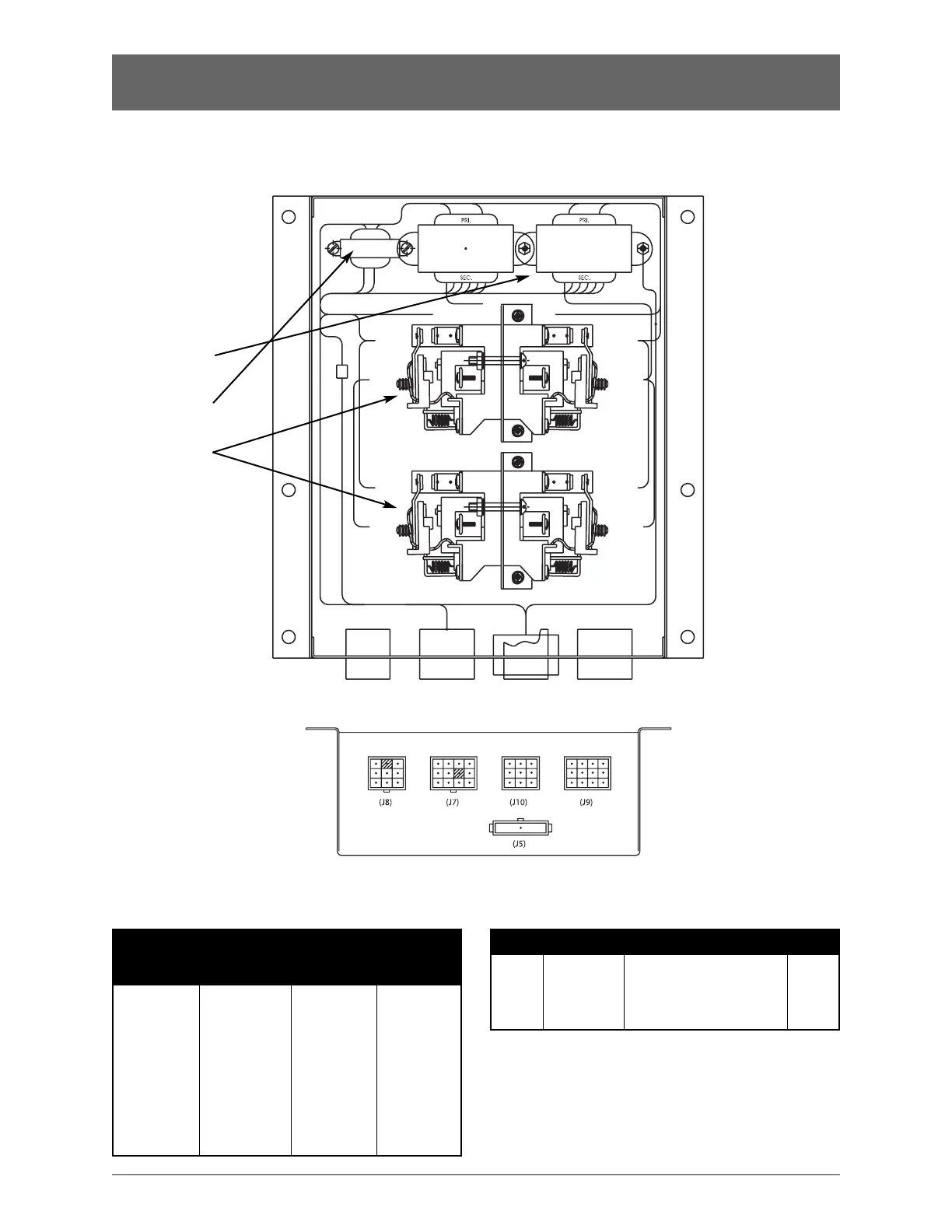

Delayed Transition
Relay/Transformer (R/T Box) (cont’d)
R/T Box Primary 1 VA 25 VA
Assembly Voltage XFMR XFMR
Part No. at 50/60 Hz Part No. Part No.
50P-1013 120V K-3216 K-3224
50P-1014 208-220V K-3217 K-3225
50P-1015 230-240V K-3218 K-3226
50P-1016 277V K-3219 K-3227
50P-1017 380-400V K-3220 K-3228
50P-1018 416-440V K-3221 K-3229
50P-1019 460-480V K-3222 K-3230
50P-1020 575-600V K-3223 K-3231
Transformer Usage
Item Part No. Description Qty
1 See Chart Transformer (25 VA) 2
2 See Chart Transformer (1 VA) 1
3 K-1260 Coil Control Relay (24V) 4
Bill of Material
SEC.
SEC.
PRI.
PRI.
1
2
3
