GRASSO SYSTEM CONTROL
01.2004/1 638660E_chapter1.doc Chap. 1 - 15
ECO system 
Inject control 
AKVA type 
ECO system: Select the type of economiser (No, A, B, C, D or 2xB)
Inject control: Select “GSC” if electronic injection mounted, otherwise “No”
AKVA type: Select AKVA type mounted (No, 10-1 through 20-5)

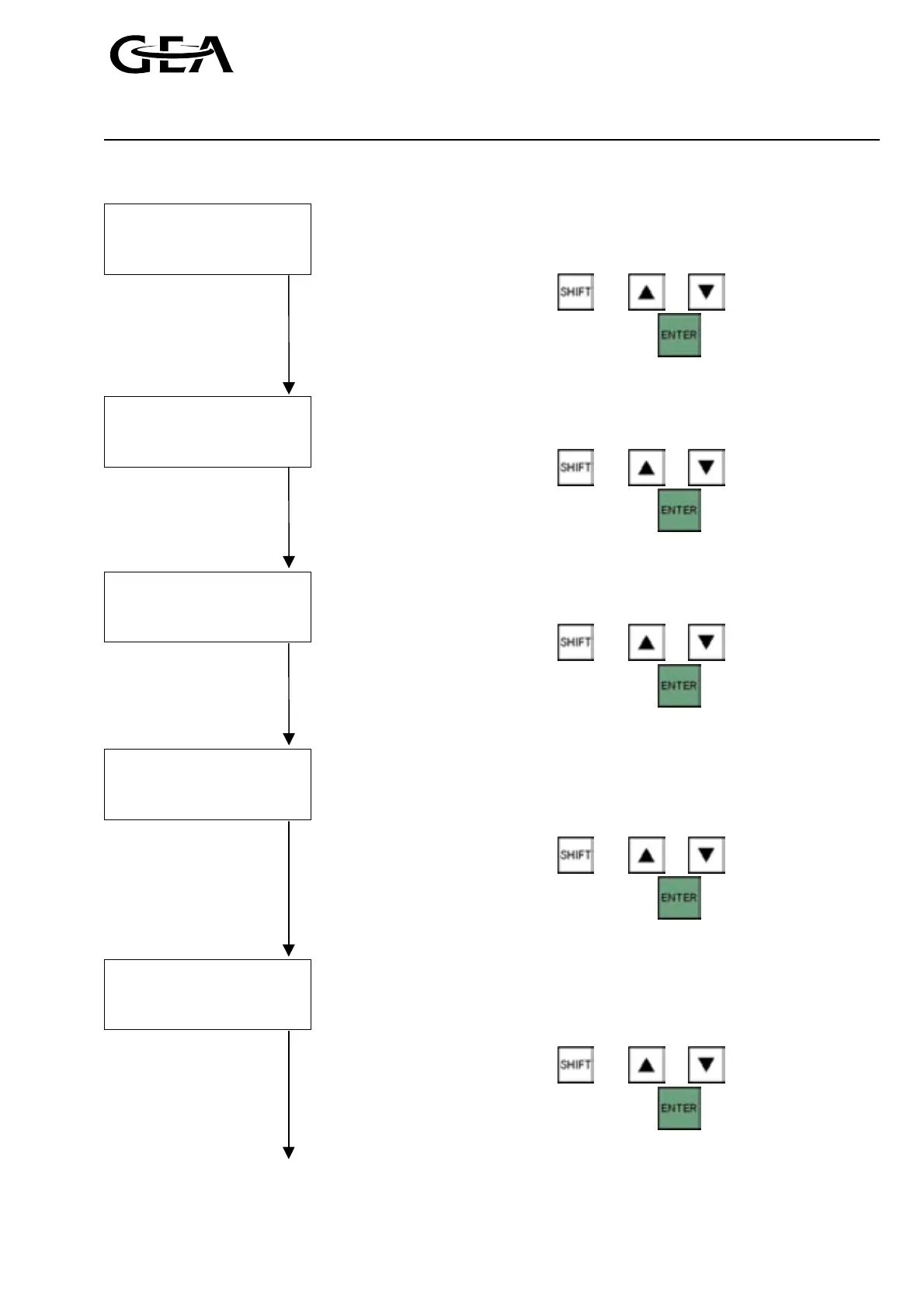

<< Configuration >>
Select using and or .
Confirm the selection with
Nom speed 
Aux output 
Nom speed: Enter the nominal motor speed in rpm
Aux output: Select the desired function for the auxiliary output
<< Configuration 01 >>
Select using and or
Confirm the selection with
Motor curr 
Crankc press 
Motor curr: Select “With” if sensor mounted, otherwise “Without”
Crankc press: Select “With” if sensor mounted, otherwise “Without”
<< Configuration 01 >>
Select using and or .
Confirm the selection with
Suction temp 
Oil temp 
Oil separat 
Suction temp: Select “With” if sensor mounted, otherwise “Without”
Oil temp: Select “With” if sensor mounted, otherwise “Without”
Oil separat: Select “With” if oil separator is mounted, otherwise
<< Configuration 01 >> “Without”
Select using and or .
Confirm the selection with .
Remote SP 
Ext temp 
Profibus 
Remote SP: Select “With” if sensor mounted, otherwise “Without”
Ext temp: Select “With” if sensor mounted, otherwise “Without”
Profibus: Select “With” to enable data communication via Profibus-
<< Configuration 01 >> DP, otherwise select “Without”
Select using
and or .
Confirm the selection with
