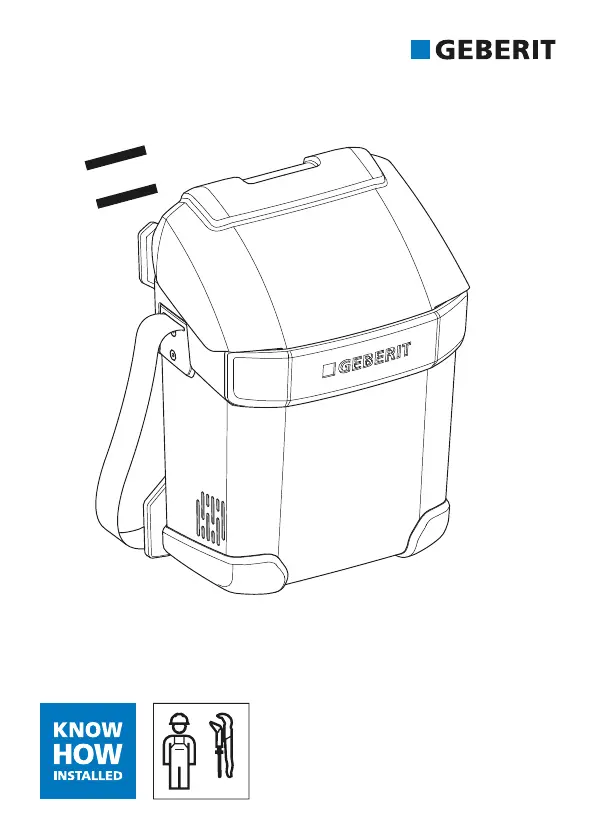

Geberit ESG 3 - User Manual

Other manuals for Geberit ESG 3

Maintenance Manual28 pages

Questions and Answers

R
roberthughesAug 1, 2025
Why are the malfunction and mains connection LEDs lighting up on my Geberit Welding System?
- L
  leah63Aug 1, 2025
  If the Geberit Welding System's malfunction and mains connection LEDs are lit, it could be due to mains voltage being too low or too high. If the voltage is too low, switch off non-essential consumers or use a power generator with the correct output voltage. If the voltage is too high, disconnect the mains plug and contact your power supplier or ensure the power generator's output voltage is correct.
S
Steven CooleyAug 5, 2025
What to do if the malfunction and welding procedure LEDs light up on my Geberit ESG 3?
- B
  burkerichardAug 5, 2025
  If the malfunction and welding procedure LEDs are lit on your Geberit Welding System, it could be due to a defective Geberit electro-fusion coupling, tape, or coupling with an integrated thermal fuse, or the coupling connection plug was removed during the welding procedure. First, disconnect the mains plug. Inspect the contacts on the coupling connection plugs; dry or clean them if necessary. Use a new Geberit electrofusion coupling, a new Geberit electro-fusion tape for anchor point or a new Geberit electrofusion coupling with integrated thermal fuse. Alternatively, press and hold the start button for three seconds and repeat the welding procedure with a cooled Geberit electro-fusion coupling or tape.
G
Glenn ReyesAug 9, 2025
Why are the malfunction and welding complete LEDs lighting up on my Geberit ESG 3 Welding System?
- W
  Wesley MooreAug 9, 2025
  If the malfunction and welding complete LEDs light up on your Geberit Welding System, the electrofusion machine may be overheating or operating at too high an ambient temperature. Allow the electrofusion machine to cool down until the trouble indication goes out, ensuring it remains connected to the power supply so the fan operates. Avoid exposing the machine to direct sunlight.
T
Thomas BarberAug 14, 2025
What does it mean when the malfunction, welding procedure, and ready for welding LEDs are all lit on my Geberit ESG 3?
- L
  Laura RuizAug 14, 2025
  If the malfunction, welding procedure, and ready for welding LEDs light up on your Geberit Welding System, it indicates a fault current during welding, possibly due to moisture on electrical connections. Disconnect the mains plug and ensure the electrofusion tool, all cables, and the Geberit electro-fusion coupling, tape, or coupling with integrated thermal fuse are dry and clean.
E
Ebony HooperAug 18, 2025
Why are the mains connection, ready for welding, and welding complete LEDs lit and the malfunction LED flashing on my Geberit ESG 3 Welding System?
- U
  ulucasAug 18, 2025
  If the mains connection, ready for welding, and welding complete LEDs are lit and the malfunction LED is flashing on your Geberit Welding System, it suggests worn coupling connection plugs or too many interruptions from removing the coupling connection plugs during the welding procedure. Disconnect the mains plug. Visually inspect the coupling connection plugs and coupling connection cables and replace the connecting cables if necessary.
W
William WelchAug 22, 2025
What to do if malfunction and ready for welding LEDs light up on Geberit ESG 3 Welding System?
- L
  Lisa HarrisonAug 23, 2025
  If the malfunction and ready for welding LEDs light up on your Geberit Welding System, it indicates that the ambient temperature is too low. Operate the electrofusion machine only within the permitted temperature range.
T
Tracey TranAug 27, 2025
Why is the ready for welding LED flashing and the malfunction LED lit on my Geberit Welding System?
- M
  Melissa ThomasAug 27, 2025
  If the ready for welding LED flashes and the malfunction LED is lit on your Geberit Welding System, it indicates too many serial welding joints. Reduce the number of welding joints.

Summary

General Information and Intended Use

Document Notes and Language

Notes on the original German instructions and translations in other languages.

Intended Use of Electrofusion Tool

Specifies the permitted welding applications for the Geberit ESG 3 electrofusion tool.

User Qualifications and Safety

Required User Training and Skills

Details the necessary training, qualifications, and adherence to safety regulations for users.

General Handling Warnings

WARNING regarding injury risk from inattention and incorrect handling of the device.

Electrical Shock Hazards

DANGER statement concerning the risk of death or serious injury from electric shock.

Operational Safety Precautions

WARNING about injury risk from incorrect handling and ATTENTION for device damage.

Maintenance, Symbols, and Product Description

Authorized Repair Shops

Maintenance and repair work may only be performed by authorised repair shops.

EN 62841-1 Compliance Notes

Notes regarding safety standards compliance for power tools.

Explanation of Symbols

Key to understanding various symbols used in the operating instructions.

Geberit ESG 3 Components

Overview of the electrofusion tool, remote control, and connecting cables included.

Technical Data and Operation

Electrofusion Tool Specifications

Lists key technical specifications like voltage, power consumption, temperature, and welding cycles.

Preparing for Welding

Steps for connecting the correct coupling cable to the remote control for welding.

Performing the Welding Process

Detailed instructions on how to operate the tool during the welding procedure.

Troubleshooting Common Issues

Guide to identifying and resolving malfunctions based on LED indicators and causes.

Maintenance Procedures

Regular maintenance tasks and regulations to ensure safe and proper operation of the machine.

Product Disposal Guidelines

Instructions for the environmentally responsible disposal of the electrofusion equipment.

Contact Information and Resistance Table

Geberit Company Contact

Official contact details for Geberit International AG, including address and website.

Documentation Contact Person

Contact details for the person responsible for product documentation at Geberit.

Electrofusion Component Resistance

Table detailing the resistance values (Ω) for various Geberit couplings and tapes by diameter.

Geberit ESG 3 Specifications

General

Brand	Geberit
Model	ESG 3
Category	Welding System
Language	English
