72 MSPA-MP Metapacks Service Manual
Instructions to replace an MSPA-MP pack heater configured for
horizontal/back/bottom position.
Note: Make sure to turn power to the pack off before proceeding.

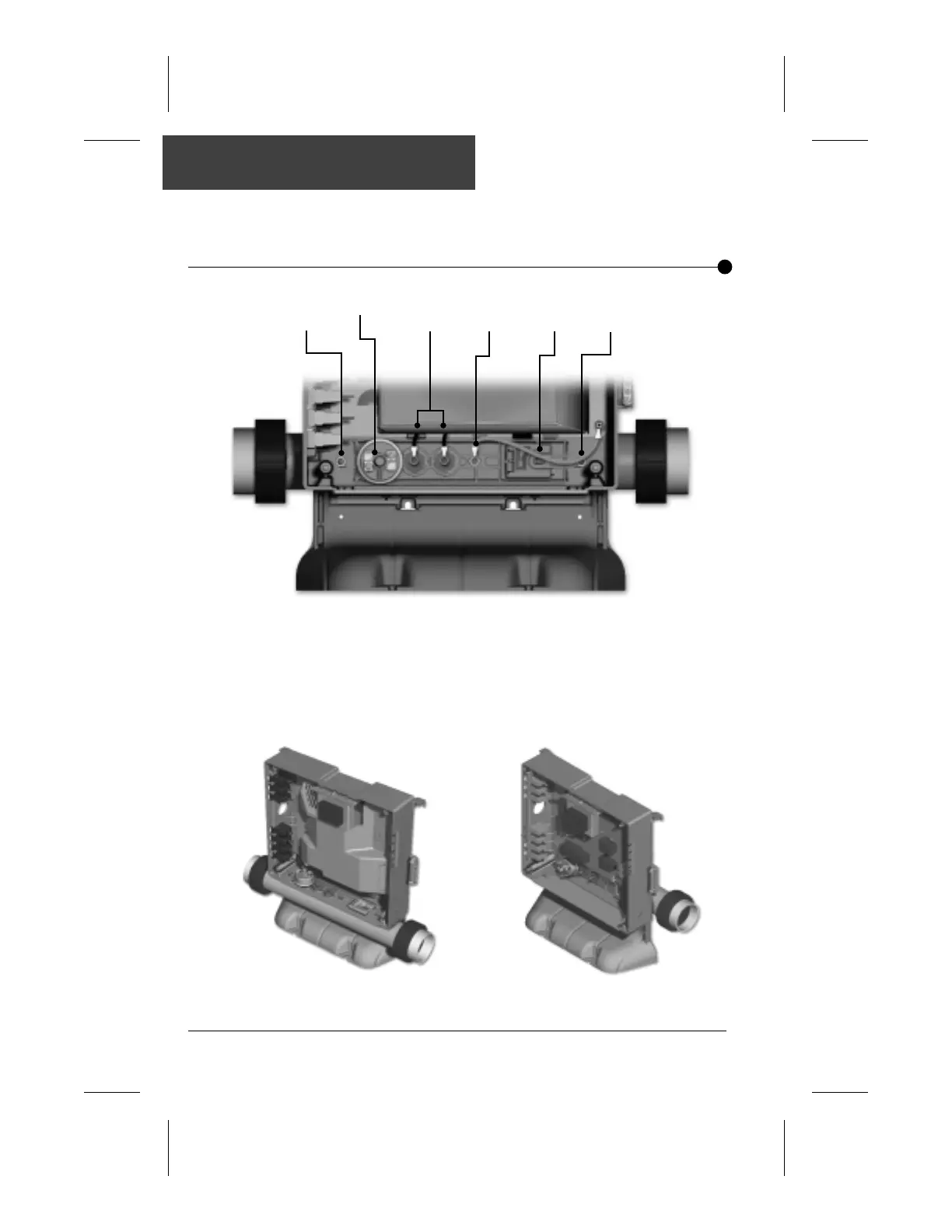

Front/horizontal heater position
To change the heater on a spa configured for back/horizontal heater position
follow the same instructions as for the front/horizontal heater position (shown
on previous pages). The main difference is in the position of the blue plastic
support plate, which sits on the top of the heater in the front position, but is
positioned sideways at the bottom of the pack in the back/horizontal position.
Back/horizontal heater position
Pressure
switch
Heater
connectors
& nuts
High limit
wing nut
& plate
Heater
lock nut
Heater
lock nut
Ground
connector
& nut
How To Replace The Heater
To Next Page
