78 MSPA-MP Metapacks Service Manual

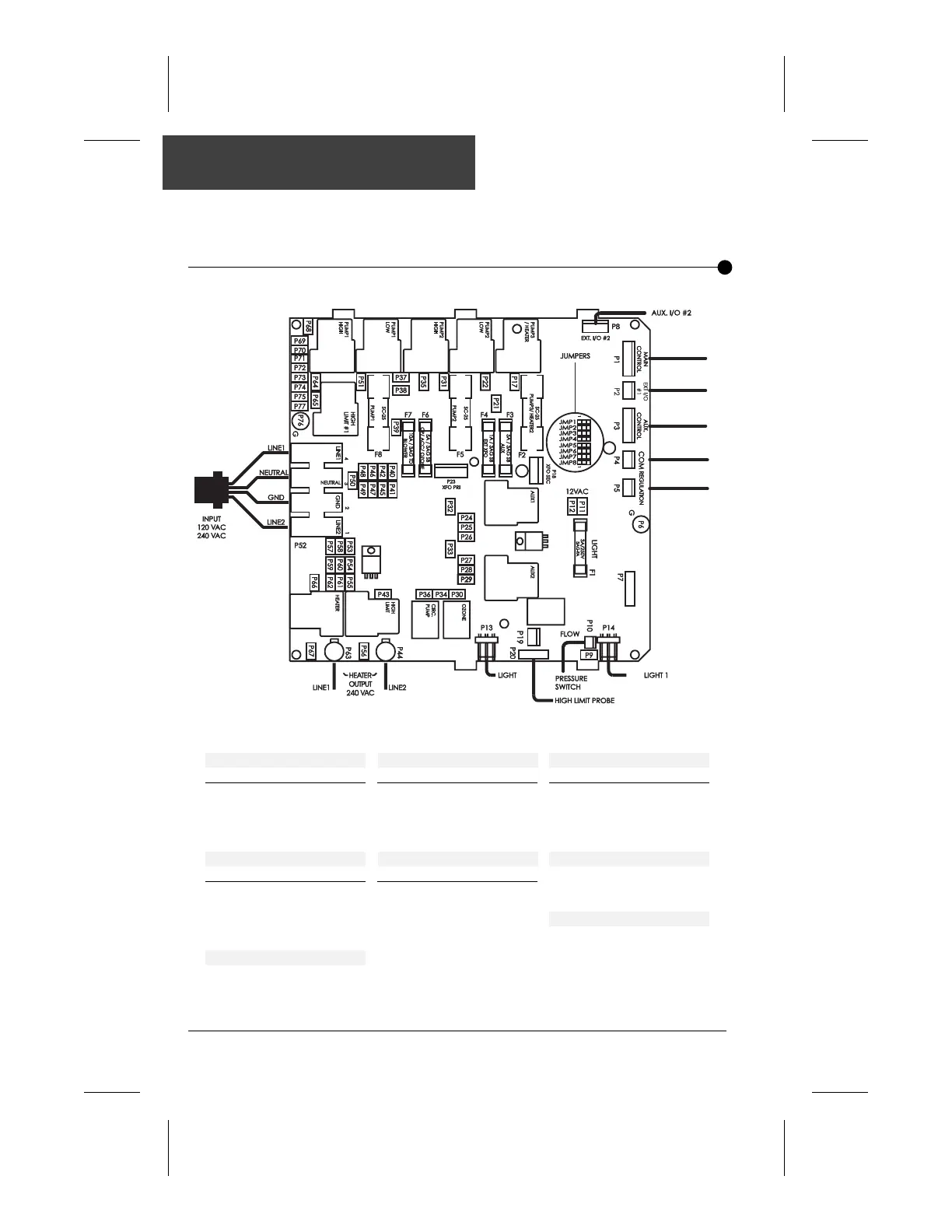

Wiring Diagram (Horizontal)
Pump 1
Voltage 120 v 240 v
Green / Ground P69 P69
Red / Low Speed P37 P37
Black / High Speed P64 P64
White / Com P48 P57
Pump 2
Voltage 120 v 240 v
Green / Ground P70 P70
Red / Low Speed P22 P22
Black / High Speed P35 P35
White / Com P45 P58
Jumper Settings
Refer to page 8
Blower
Voltage 120 v 240 v
Green / Ground P72 P72
Black / High Speed P43 P43
White / Com P49 P49
Ozone
Voltage 120 v 240 v
Green / Ground P73 P73
Black / High Speed P30 P30
White / Com P46 P60
Circulation Pump
Voltage 120 v 240 v
Green / Ground P74 P74
Black / High Speed P36 P36
White / Com P41 P54
Light Connector
Light 1 P14
Light 2 P13
Heater
Black 1 P63
Black 2 P44
Green / Ground Ground
The wiring diagram below provides a general idea of MSPA-MP wiring, but it is impor-
tant to note that it may not apply to all systems. The wiring diagram including on inside
power box cover is the one to be used as main reference for the spa you are servicing.
To Next Page
