Configurable serial
line isolated to 1500V
RS422/485 or RS232
Passive current loop
(max. 1200 baud)
(optional
R60 special version)
• Serial line
27
26
25
24
-
+
-
+
Tx
Rx
A (Data +)
B (Data -)
RS485 2 wires
GND
RS232
Tx
Rx
• Pt100 2-wires or PTC• Linear (V)
3 • DESCRIPTION OF FACEPLATE
User configurable
generic output
- 5A/250Vac relay, cosϕ=1
- 11Vdc logic,
Rout=220Ω (6V/20mA)
Standard:
100...240Vac/dc ±10%
Optional:
20...27Vac/dc ±10%
50/60Hz
Digital inputs isolated
1500V
- NPN 24V, 4,5mA
- PNP 24V, 3,6mA
(12V, 1,2mA)
Linear input in
dc current
0...20mA, 4...20mA
• Digital inputs

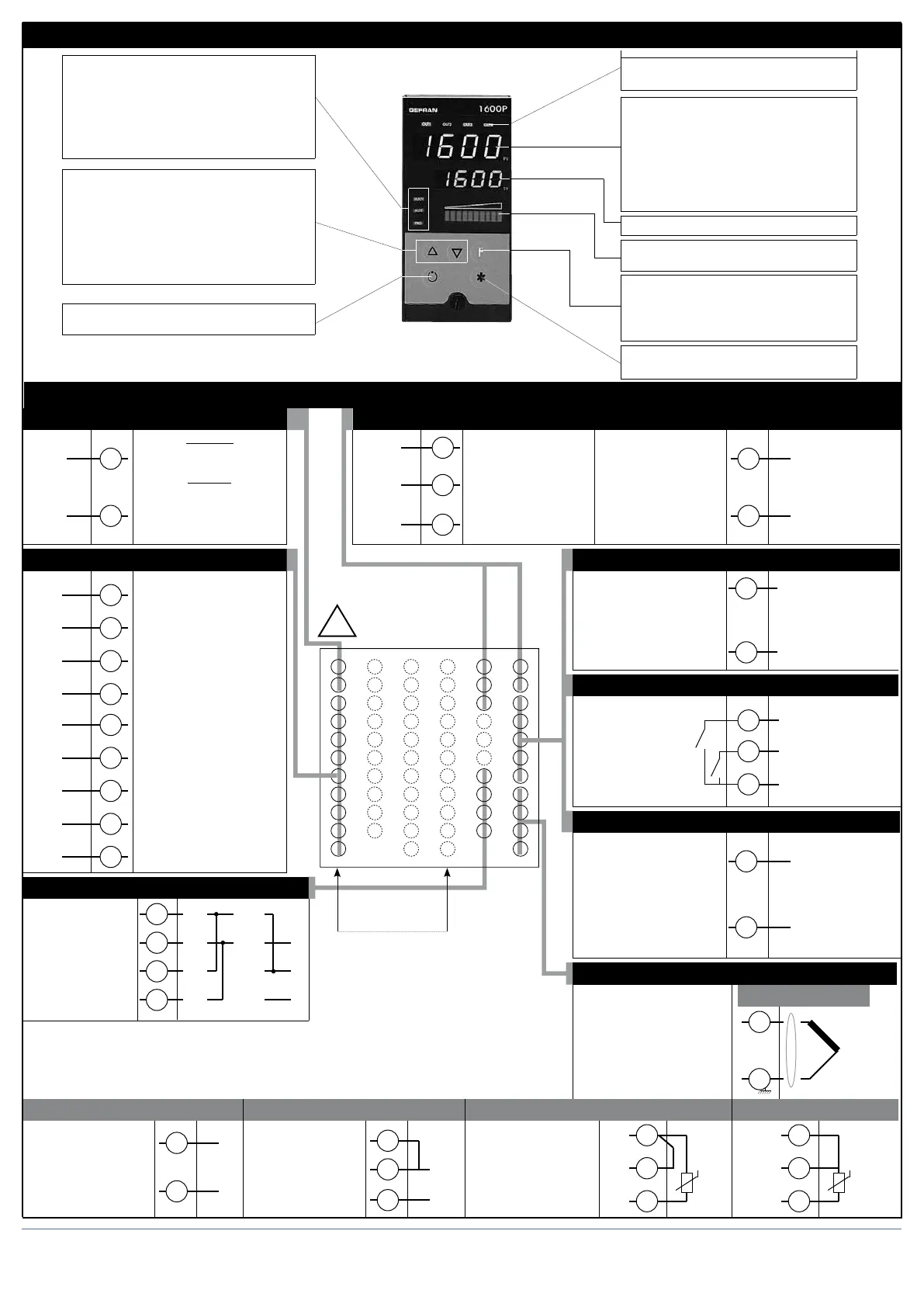

4 • CONNECTIONS
• Outputs
+
-
User configurable
generic outputs
- 5A/250Vac relay, cosϕ=1
- 11Vdc logic, Rout=220Ω
(6V/20mA)
Available thermocouples:
J, K, R, S, T, B, E, N,
Ni-Ni18Mo, L NiCr-CuNi
- Observe polarities
- For extensions, use the
correct compensating cable for
the type of TC used
• Inputs
• TC
Use wires of adequate
diameter (min. 1mm
2
)
PT100, JPT100, PTC
2
1
• Linear (I)
Linear input in
dc voltage
0...50mV, 10...50mV,
0...10V, 2...10V
2
1
+
-
• Pt100 3-wires
4
1
2
-
+
8
5
7
14
16
15
17
Out3 (AL2)
IN1
IN2
COM
• Power Supply
12
13
~
~
Auxiliary input isolated
1500V
Current transformer
50mAac; 1,5Ω; 50/60Hz
Remote setpoint
0...20mA, 4...20mA, 5Ω,
0...1V, 0...10V,> 1MΩ
• Auxiliary input
6
5
~
~
• Outputs
User configurable
generic output
analogue output isolated
to 1500V
(0 ... 10V, 0 ... 20mA,
4 ... 20mA)
11
10
+
-
Out4
(AL3/HB)
33
31
0V
+W2
Transmitter supply isolated
1500V
10/24Vdc, max. 30mA
short-circuit protection
9
5
+
-
18
20
19
21
22
Out2 (AL1) Out1 (Main)
C
32
+W1
• Transmitter supply
GND
+ Vt
1
2
3
4
5
6
7
8
9
10
11
24
25
26
27
28
29
30
31
32
33
22
21
20
19
18
17
16
15
14
13
12
1800 1600
(-) NC
(-) NC
(-) NC
(+) NO
(+) NO
(+) NO
C
C
!
PWR
3
1
2
T
3
1
2
T
Key “
”:
Function defined with but. 2 parameter
M/A key
Function defined with butt parameter
PV Display: Indication of process variable
Error Indication: LO, HI, Sbr, Err
LO = the value of process variable is < di LO_S
HI = the value of process variable is > di HI_S
Sbr = faulty sensor or input values
higher than max. limits
Err = PT100 third wire opened for PT100, PTC or
input values lower than min. limits
(i.e.: TC wrong connection)
Function key
Gives access to the various configuration phases
•• Confirms change of set parameters and browses
next or previous parameter (if Auto/Man key is
pressed)
Function indicator
Indicates modes of operation
MAN = OFF (Automatic control)
MAN = ON (Manual control)
AUX = ON (program in reset)
PRG = ON (program running)
SV display: Indication of setpoint
Indication of output states
OUT 1 (Main); OUT 2 (AL 1);
OUT 3 (AL 2); OUT 4 (HB)
“Raise” and “Lower” key
Press to increment (decrement) any numerical
parameter •• Increment (decrement) speed
is proportional to time key stays pressed
The operation is not cyclic: once the maximum
(minimum) value of a field is reached, the value
will not change even if the key remains pressed.
Bargraph: Percentage display for variable defined
with bArG parameter
2 80090G_MHW_1600-1800P_04-2013_ENG
