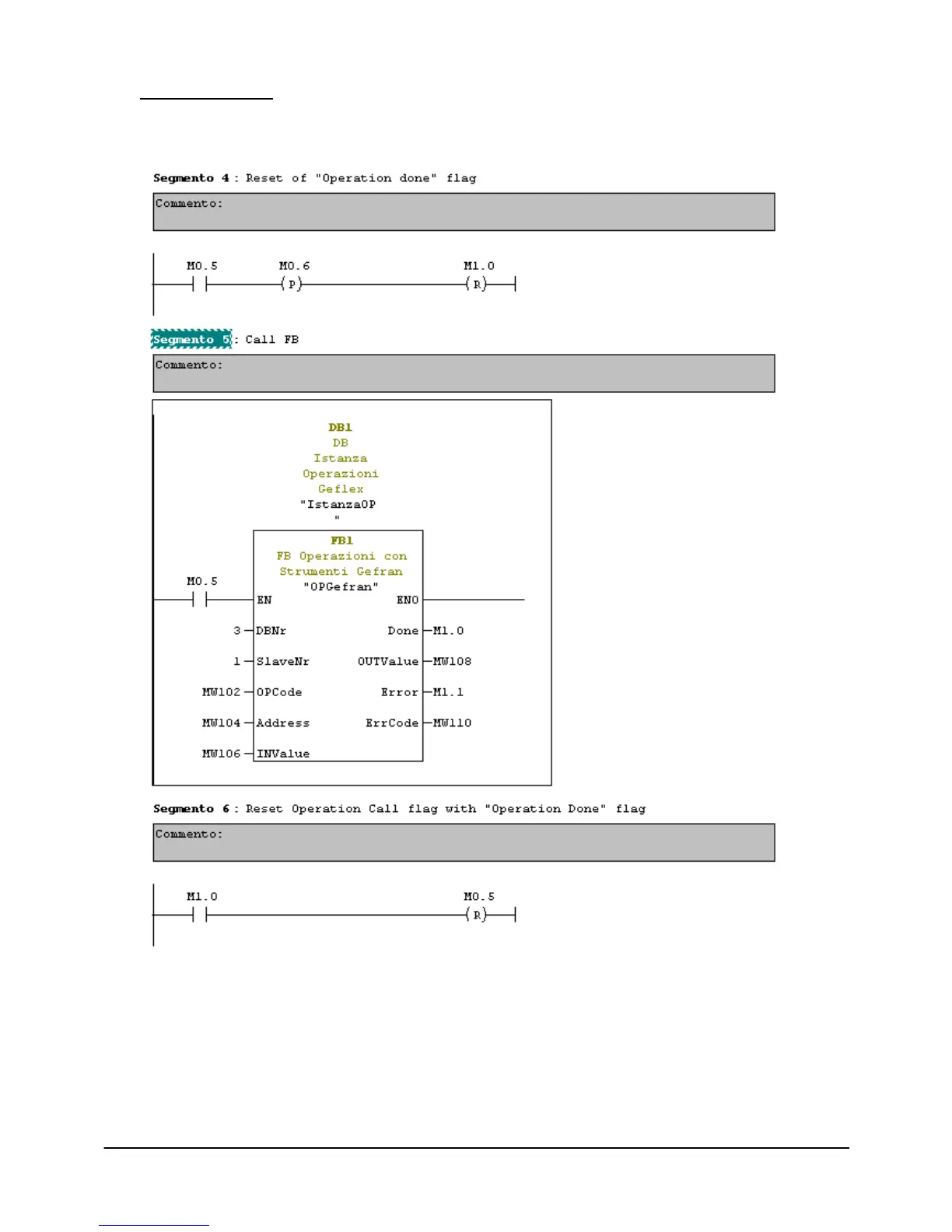

5.3.4 FB1 “OP GEFRAN”
This function block (FB) manages the fundamental operations of communicating and configurating Gefran
instruments. Bit or word reading or writing operations are available for the user.
FB needs one freely assignable istance DB.
Branch enabling must be kept high for the necessary time. It is advisable to reset it with “Operation done” flag.
The block needs 5 input parameters and replies with 4 output parameters.
