Function indicators: with standard configuration, signal the opera-
ting state of the controller
For configuration, see parameter:
LeD.1, LeD.2, LeD.3, LeD.4, LeD.5 on KRD menu
L1
MAN/AUTO = ON blinking (manual control)
OFF (automatic control)
L2
REMOTE SET POINT =
ON (IN1 = ON remote Setpoint)
OFF (IN1 = OFF local Setpoint)
L3
IN1 CALIBRATION CHECK
L4/L5
ALARM 1/2/3 = ON
OFF
Space reserved for insertion of a transparent label 8.7 x3, 7mm
(unit of measuring or symbols).
A sheet with 50 labels is content in the packaging tool

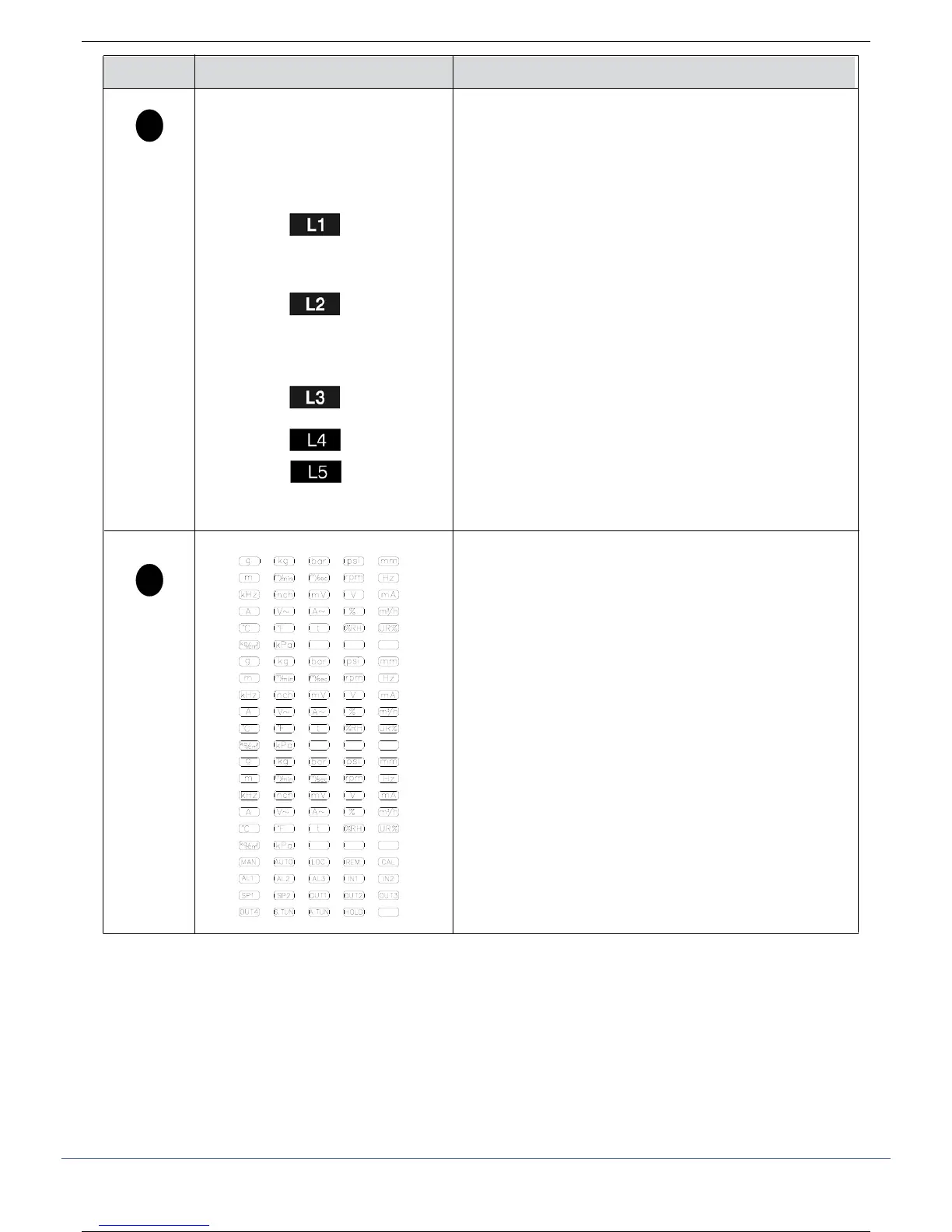

ID Symbol Function
5
6
2180291G_MHW_2500_08-2010_ENG
