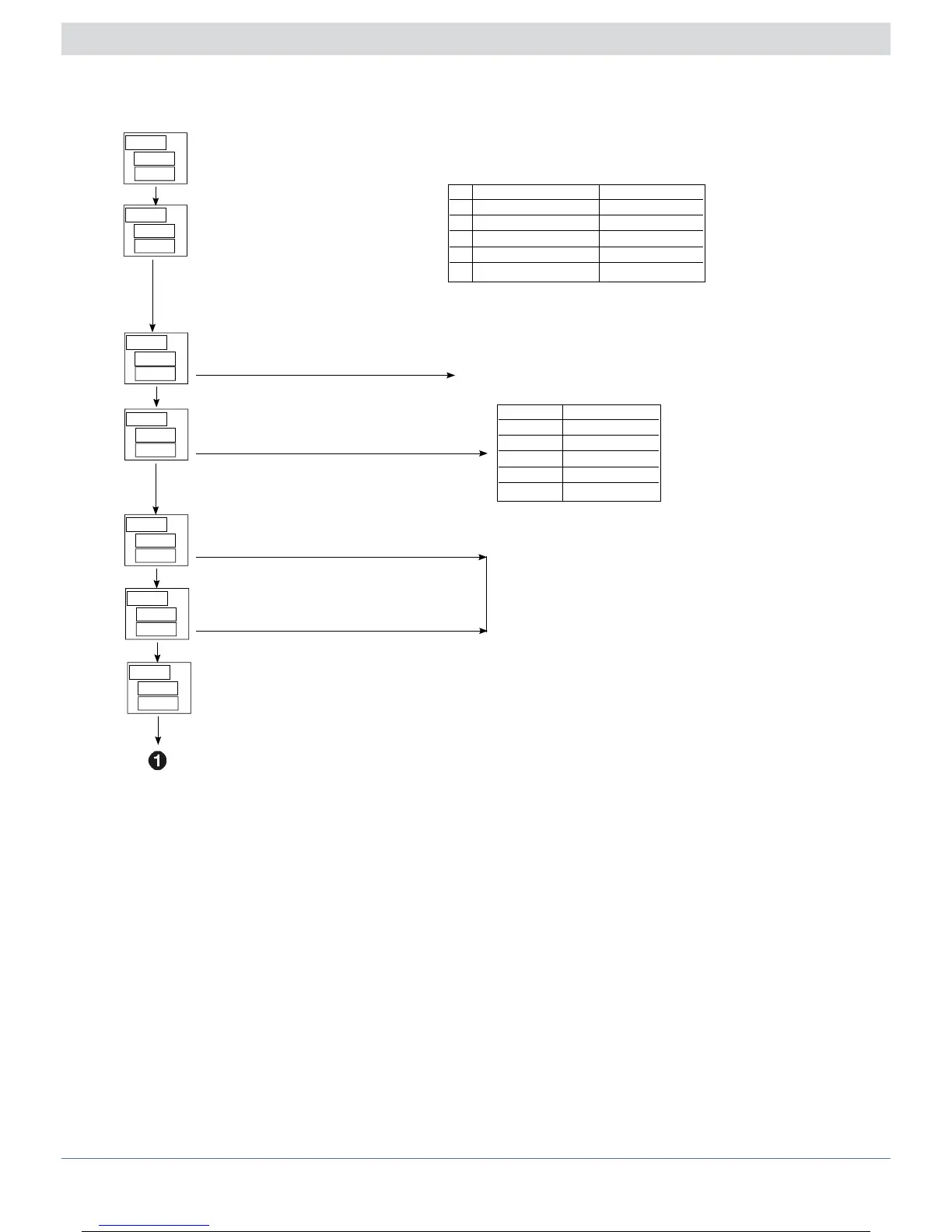

InP.4 Setting Input 4
This menu lets you configure parameters for the input 4 signals.
Probe type, signal, enable custom
linearization, and main input scale
SV
F
PV
SV
F
PV
Input 4 Digital Filter
[0.00 ... 20.00] sec
SV
F
PV
If set to “0” the average filter is excluded on the sampled
value
InP.4
tyP.4
F1t.4
SV
F
PV
Decimal Point Position for Scale
Input 4
Size
0 xxxxx
1 xxxx.x
2 xxx.xx
3 xx.xxx
4 x.xxxx
dPS..4
SV
F
PV
MIN Scale Limit Input 4
SV
F
PV
MAX Scale Limit Input 4
LoS.4
x1S.4
SV
F
PV
Offset Correction Input 4
[-999 ... +999] scale points
0FS.4
Probe type Scale limits
0 Input disabled
1 0...10V -19999/99999
2 0...20mA -19999/99999
3 4...20mA -19999/99999
4 potentiometer -19999/99999
+32 enable custom linearization
+8 disables the Lo and x1 messages
+64 disables the E.CAL.4 message
Min...Max value assigned to the input selected with
parameter TYP4
[LoS.4 must be always < than xiS.4]
