Gehl 603 User Manual

Printed in U.S.A. 1-10 918070/FP0811

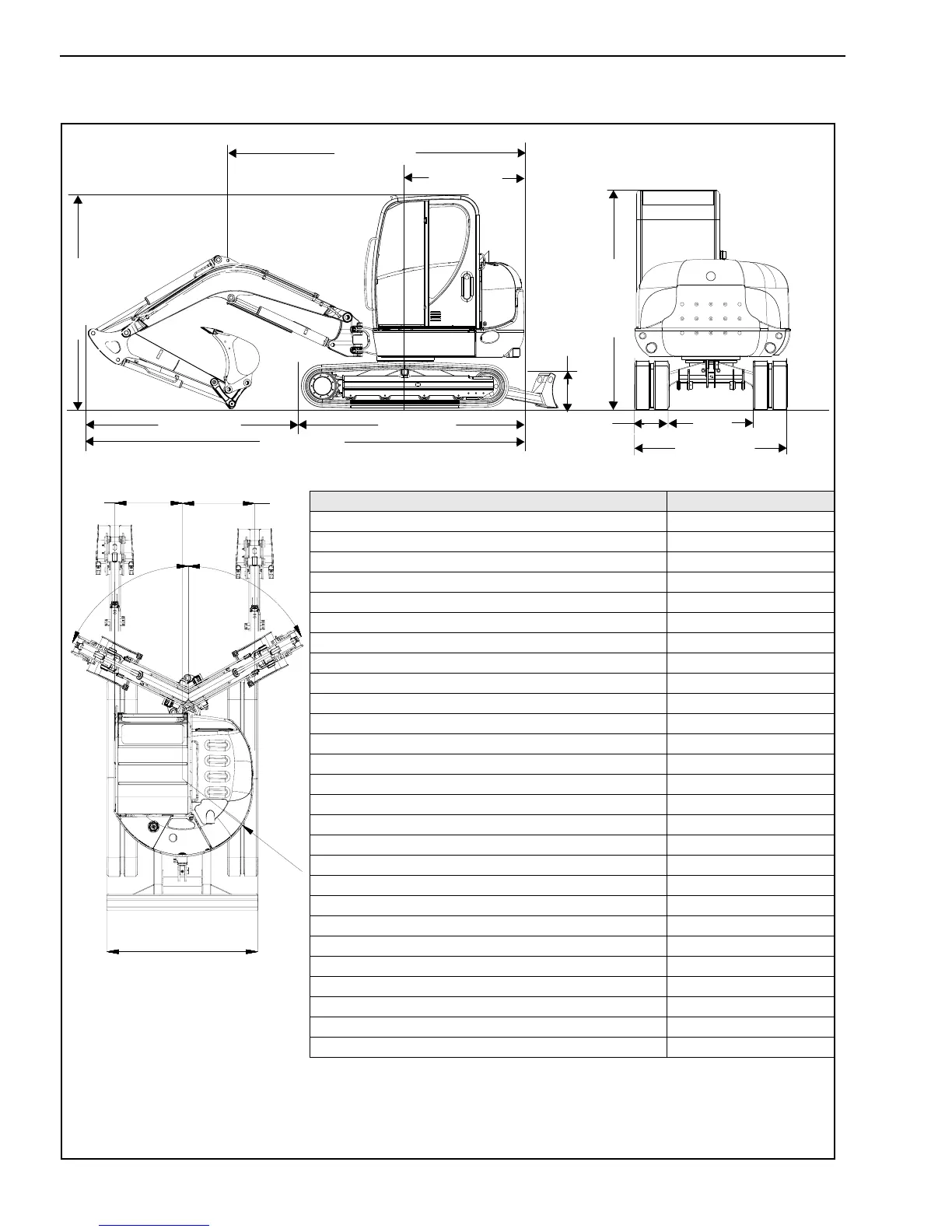

603 General Specifications
8’5” (2570 mm)
19’2” (5800 mm)
8’2” (2500 mm)
10’9” (3280 mm)
13’0” (3967 mm)
4’9” (1465 mm)
1’5” (425 mm)
6’6” (1990 mm)
1’3”
3’10”
(400 mm)
(1190 mm)
8’5” (2570 mm)
General Specifications 603
Weight 12,566 lbs. (5700 kg)
Height 8’5” (2570 mm)
Width 6’6” (1990 mm)
Transport length 19’0” (5800 mm)
Dipper arm length (Standard Arm) 5’6” (1685 mm)
Dipper arm length (Optional Long Arm) 6’6” (1985 mm)
Max. digging depth w/ Standard Arm 12’7” (3845 mm)
Max. digging depth w/ Optional Long Arm 13’7” (4140 mm)
Max. vertical digging depth w/ Standard Arm 9’4” (2855 mm)
Max. vertical digging depth w/ Optional Long Arm 10’3” (3135 mm)
Max. digging height w/ Standard Arm 18’6” (5660 mm)
Max. digging height w/ Optional Long Arm 19’2” (5850 mm)
Max. dump height w/ Standard Arm 13’1” (3995 mm)
Max. dump height w/ Optional Long Arm 13’8” (4185 mm)
Max. digging radius w/ Standard Arm 20’ 4” (6210 mm)
Max. digging radius w/ Optional Long Arm 21’3” (6490 mm)
Max. reach at ground level w/ Standard Arm 19’11” (6090 mm)
Max. reach at ground level w/ Optional Long Arm 20’11” (6380 mm)
Max. breakout force at bucket tooth 8,925 lbf (39.7 kN)
Max. tearout force (Standard Arm) 6,317 lbf (28.1 kN)
Max. tearout force (Optional Long Arm) 5,642 lbf (25.1 kN)
Min. tail end slewing radius 4’9” (1465 mm)
Max. tail end lateral projection over tracks 1’6” (470 mm)
Max. boom distance to bucket center (right side) 2’5” (745 mm)
Max. boom distance to bucket center (left side) 1’9” (535 mm)
Max. boom slew angle (left side) 75°
Max. boom slew angle (right side) 51°
5
1
°
7
5
°
(
1
4
6
5
m
m
)
6’6” (1990 mm)
2’5”
(745 mm)
1’9”
(535 mm)
R
4
’
9
”
