918070/FP0811 3-25 Printed in U.S.A.
Preheated Fresh Air
Selection of “cold” or “preheated” fresh air in winter.

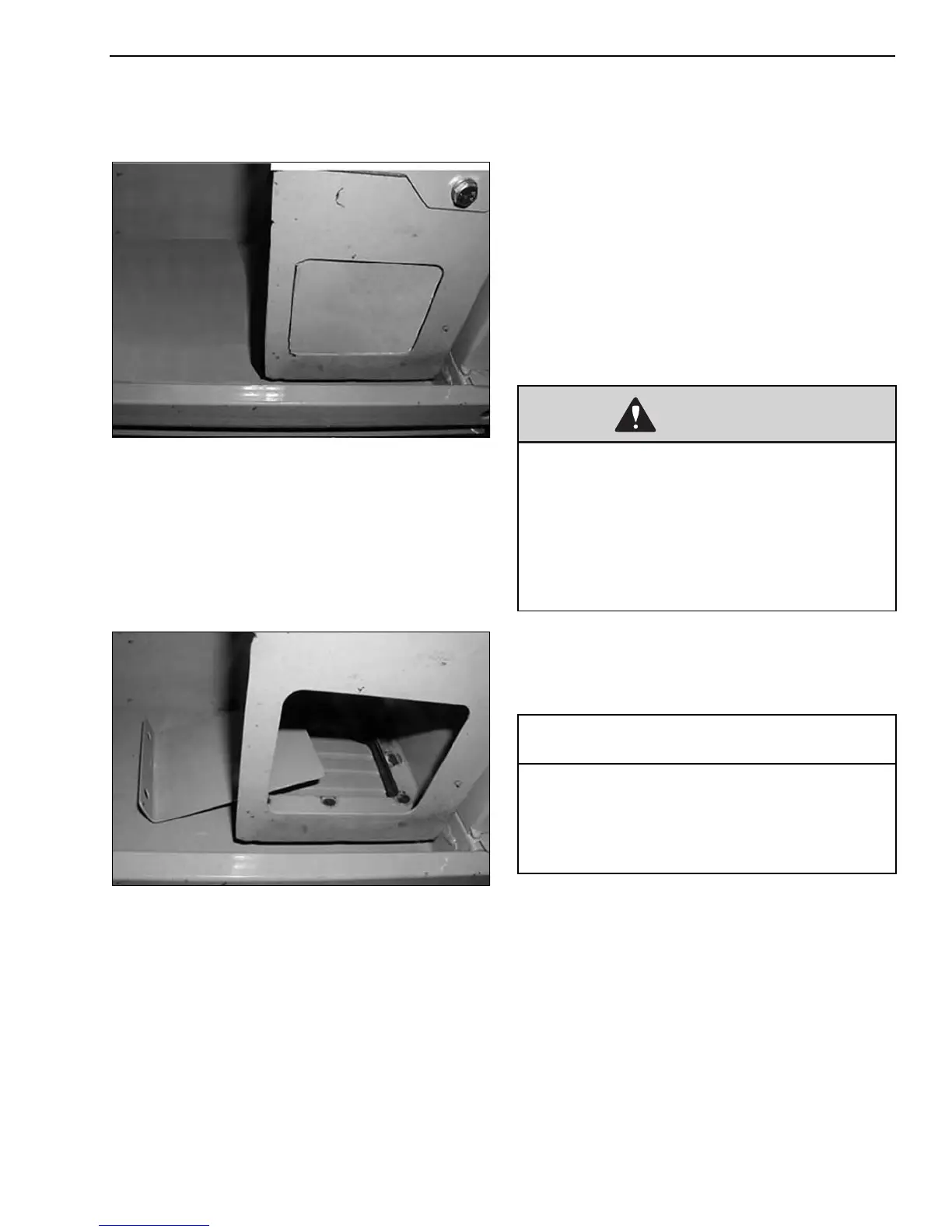

Figure 3-33 Fresh Air
A deflector plate on the heater baffle can be set to two
different positions:
• Fresh air-heater takes in air from outside the cab.
See Figure 3-33.
• Preheated fresh air-heater takes in air from the chas-
sis. See Figure 3-34.
Figure 3-34 Preheated Fresh Air
Change from fresh air to preheated fresh air as follows:
• Tilt the cab. See “Tilting the cab or canopy” on
page 3-15. The deflector plate is located on the
heater under the cab.
• Loosen both attachment screws.
• Reposition and fit the deflector plate back on again.
• Tilt the cab back down again and secure it.
Mounting/Removing Buckets
ALWAYS wear protective goggles, helmets, gloves,
steel-toed shoes, etc.
DO NOT service the bucket while the engine is
running.
DO NOT stand behind the bucket when removing the
pins.
DO NOT use your hands or fingers to align the bucket
and dipper arm holes.
ALWAYS verify the bucket is safely locked before
starting the engine and resuming operation.
Removing A Bucket
1. Lower the bucket to the ground with the flat side
facing down (1, Figure 3-35).
2. Stop the engine.
3. Remove the two lynch pins (2A and 2B, Figure 3-
35).
• DO NOT use a hammer directly on a
securing pin to loosen it. The pounding
may cause splintering, which may lead
to serious injury.
• The bucket can crush hands or feet. DO
NOT use your hands or feet as
substitutes for the correct equipment.
Place the bucket against the ground with
minimum pressure. More pressure in-
creases resistance, which will make it more
difficult to remove the pins.
