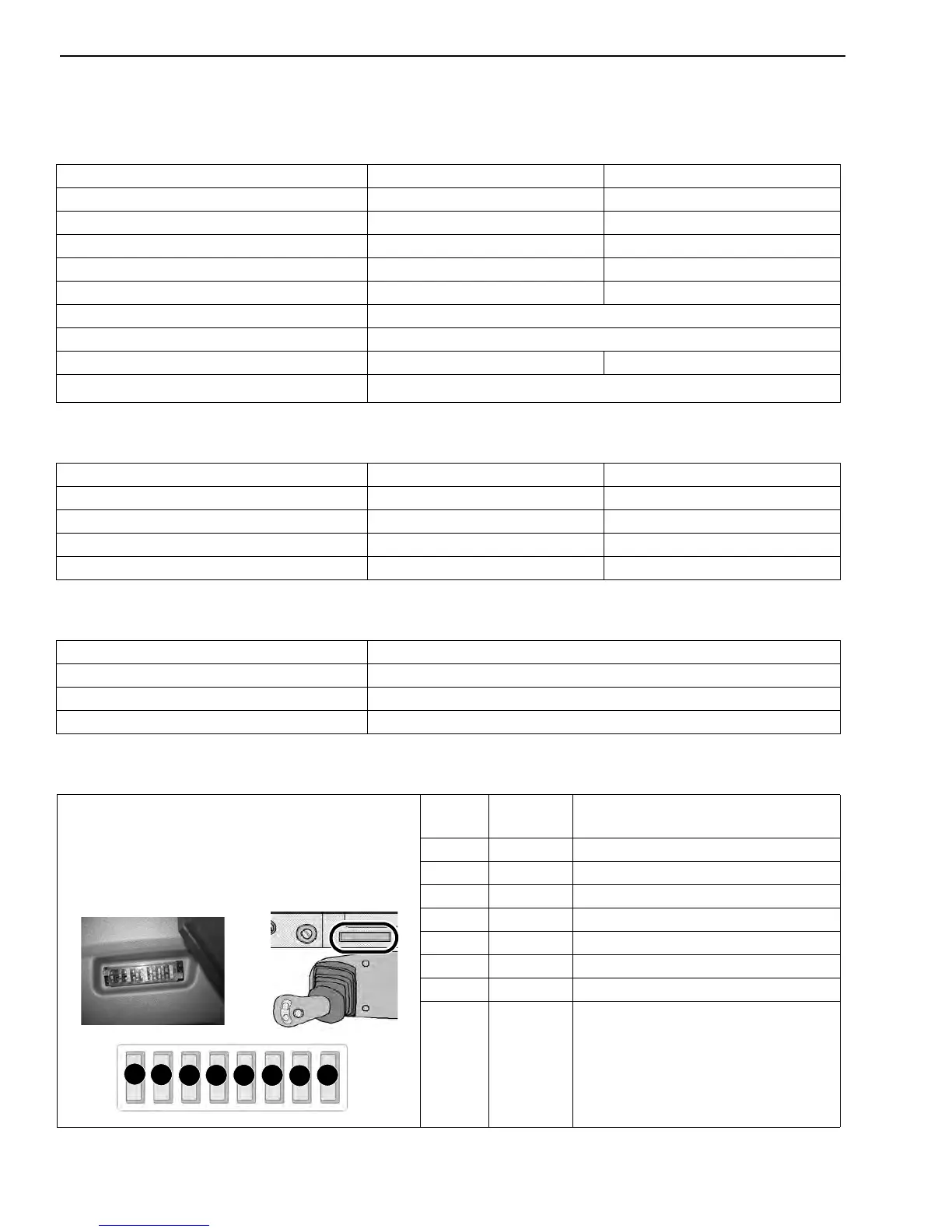

Gehl 603 User Manual

Printed in U.S.A. 1-6 918070/FP0811
Undercarriage and Swing System
Dozer Blade
Electrical System
Fuse Box in Instrument Panel
Undercarriage and Swing System 503Z 603
Travel Speed
Low Speed 1.7 mph (2.74 km/h) 1.7 mph (2.76 km/h)
High Speed 2.8 mph (4.56 km/h) 3.0 mph (4.76 km/h)
Ground Clearance 11.8” (300 mm) 13.2” (335 mm)
Swing Speed 8.7 rpm 9.0 rpm
Gradability 30
° (58%)
Rubber Track Width 15.7” (400 mm)
Number of Track Rollers 4 per side 5 per side
Average Ground Pressure
3.84 psi (0.28 kg/cm
2
)
Dozer Blade 503Z 603
Width 78.3” (1990 mm) 78.3” (1990 mm)
Height 15.0” (380 mm) 16.7” (425 mm)
Maximum Lift Above Ground 15.2” (385 mm) 15.3” (390 mm)
Maximum Depth Below Ground 15.4” (390 mm) 15.7” (400 mm)
Alternator 12-V, 55-A
Starter 12-V, 2.3-kW
Battery 12-V, 88-Ah, BCI group size 49 (93 opt.), 680 CCA
Socket 15-A max. - Cigarette lighter
Fuse
No.
Rated
Current
Protected Circuit
F3 10 Amp Indicators, cut-off solenoid, relays
F4 10 Amp Boom light
F5 15 Amp Roof lights
F6 10 Amp Valves, horn
F7 15 Amp Heating, air conditioning
F8 10 Amp Windshield wiper, interior light
F9 10 Amp Rotating beacon, radio
F10 15 Amp Socket, cigarette lighter
F3
F4
F8
F9
F10
F5 F6 F7
Serial Numbers to
AH02282
Located on top of right
inside cab/canopy
interior trim.
Serial Numbers
AJ02993 and up
Located on inside of
right cab/canopy
interior trim

Gehl 603 Specifications

General

Brand	Gehl
Model	603
Category	Compact Excavator
Language	English
