PRINTED IN U.S.A. 47 913287/BP0808
GENERAL INFORMATION
NOTE: The MAINTENANCE chapter in this
manual has provisions for recording the dates and
hourmeter readings after lubrication or other ser-
vice has been performed; use those spaces to
keep a log for maintaining a current service inter-
val record. Proper routine lubrication is an impor-
tant factor in preventing excessive part wear and
early failure.
LUBRICANTS
The chart on this page lists the locations, temperature
ranges and types of recommended lubricants to be used
when servicing the machine. Refer to the separate
engine manual for additional information regarding
recommended engine lubricants, quantities and grades
required.
NOTE: Refer to Operator Services topic in the
Service and Storage chapter of this manual for
detailed information regarding periodic checking
and replenishing of lubricants.
GREASING
Refer to the illustration and listing on the next page for
fitting locations. Wipe dirt from the fittings before
greasing them to prevent contamination. Replace any
missing or damaged fittings. To minimize dirt build-
up, avoid excessive greasing.

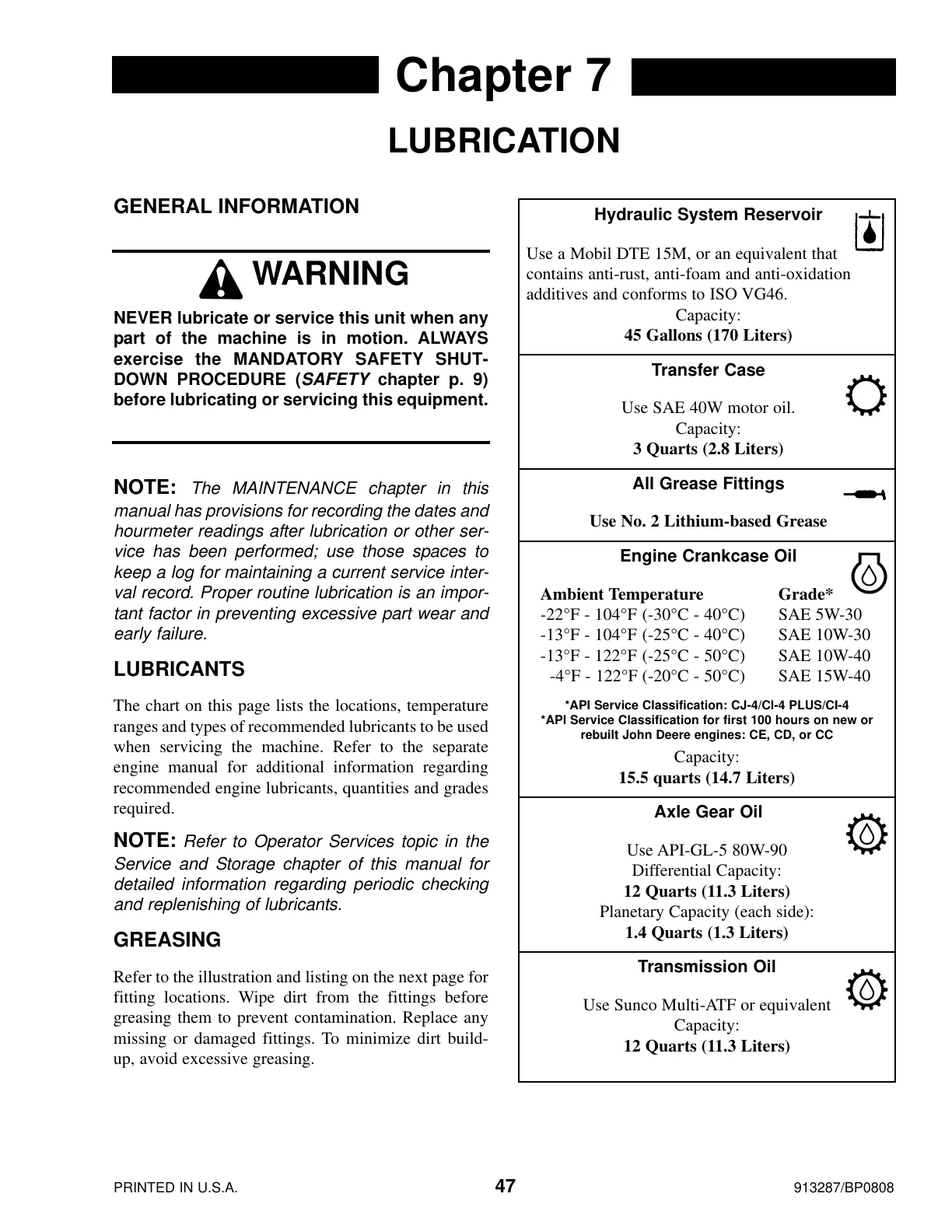

Chapter 7
LUBRICATION
WARNING
NEVER lubricate or service this unit when any
part of the machine is in motion. ALWAYS
exercise the MANDATORY SAFETY SHUT-
DOWN PROCEDURE (SAFETY chapter p. 9)
before lubricating or servicing this equipment.
Hydraulic System Reservoir
Use a Mobil DTE 15M, or an equivalent that
contains anti-rust, anti-foam and anti-oxidation
additives and conforms to ISO VG46.
Capacity:
45 Gallons (170 Liters)
Transfer Case
Use SAE 40W motor oil.
Capacity:
3 Quarts (2.8 Liters)
All Grease Fittings
Use No. 2 Lithium-based Grease
Engine Crankcase Oil
Ambient Temperature Grade*
-22°F - 104°F (-30°C - 40°C) SAE 5W-30
-13°F - 104°F (-25°C - 40°C) SAE 10W-30
-13°F - 122°F (-25°C - 50°C) SAE 10W-40
-4°F - 122°F (-20°C - 50°C) SAE 15W-40
*API Service Classification: CJ-4/Cl-4 PLUS/CI-4
*API Service Classification for first 100 hours on new or
rebuilt John Deere engines: CE, CD, or CC
Capacity:
15.5 quarts (14.7 Liters)
Axle Gear Oil
Use API-GL-5 80W-90
Differential Capacity:
12 Quarts (11.3 Liters)
Planetary Capacity (each side):
1.4 Quarts (1.3 Liters)
Transmission Oil
Use Sunco Multi-ATF or equivalent
Capacity:
12 Quarts (11.3 Liters)
