Gehl Dynalift DL12 - BASIC MACHINE GREASE FITTING LOCATIONS

913287/BP0808 48 PRINTED IN U.S.A.

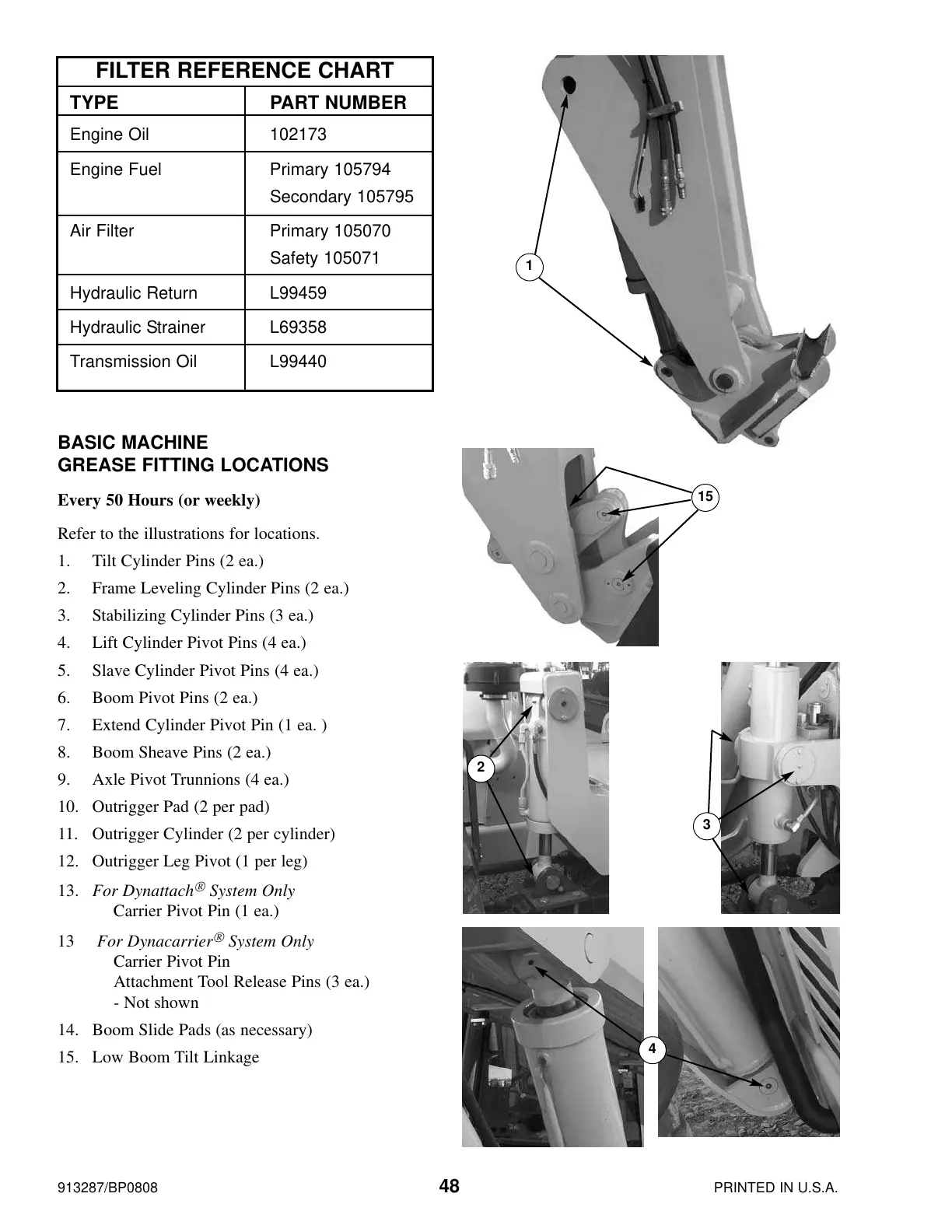

BASIC MACHINE
GREASE FITTING LOCATIONS
Every 50 Hours (or weekly)
Refer to the illustrations for locations.
1. Tilt Cylinder Pins (2 ea.)
2. Frame Leveling Cylinder Pins (2 ea.)
3. Stabilizing Cylinder Pins (3 ea.)
4. Lift Cylinder Pivot Pins (4 ea.)
5. Slave Cylinder Pivot Pins (4 ea.)
6. Boom Pivot Pins (2 ea.)
7. Extend Cylinder Pivot Pin (1 ea. )
8. Boom Sheave Pins (2 ea.)
9. Axle Pivot Trunnions (4 ea.)
10. Outrigger Pad (2 per pad)
11. Outrigger Cylinder (2 per cylinder)
12. Outrigger Leg Pivot (1 per leg)
13. For Dynattach
®
System Only
Carrier Pivot Pin (1 ea.)
13 For Dynacarrier
®
System Only
Carrier Pivot Pin
Attachment Tool Release Pins (3 ea.)
- Not shown
14. Boom Slide Pads (as necessary)
15. Low Boom Tilt Linkage
FILTER REFERENCE CHART
TYPE PART NUMBER
Engine Oil 102173
Engine Fuel Primary 105794
Secondary 105795
Air Filter Primary 105070
Safety 105071
Hydraulic Return L99459
Hydraulic Strainer L69358
Transmission Oil L99440
1
2
3
4
