GEM 1436 cPos - Direct Mounting to Quarter Turn Actuators; Dimensions of the Travel Sensor, Mounting Options and Mounting Facilities

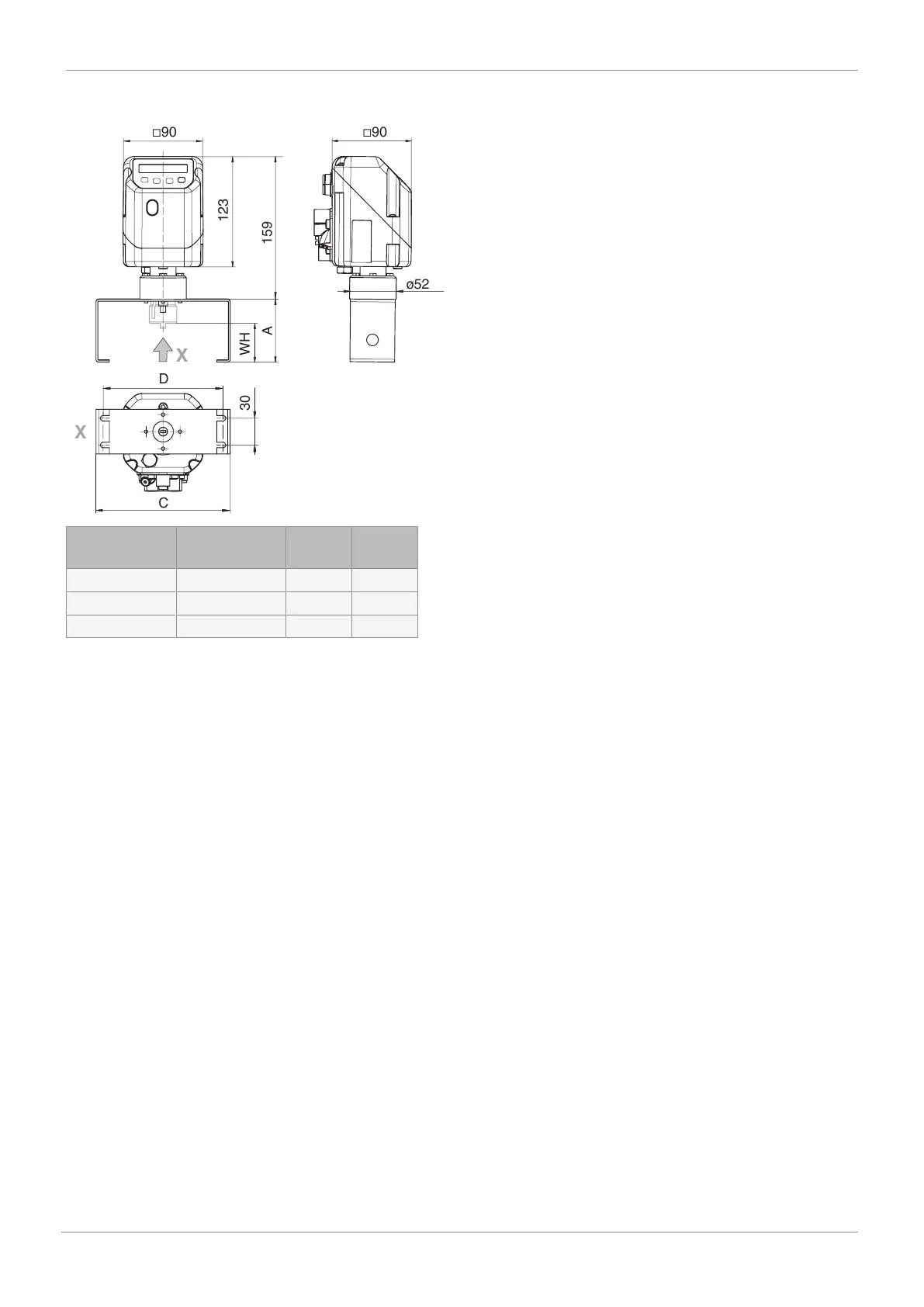

9.2 Direct mounting to quarter turn actuators
□90
123
X
□90
ø52
159
A
D
C
30
X
WH
Shaft height
WH
Hole spacing
D
A C
20.0 80.0 40.0 100.0
30.0 80.0 50.0 100.0
50.0 130.0 70.0 150.0
Dimensions in mm
9.3 Dimensions of the travel sensor, mounting options and mounting facilities
For dimensions of travel sensors 4231 and 4232, which are used to measure the travel from the process valve, as well as the
mounting bracket for wall mounting and the external mounting option with the corresponding mounting bracket for quarter turn
actuators of the 1436, see the 1436 cPos datasheet.
