geminox FCX 30 C User Manual

- 20 -

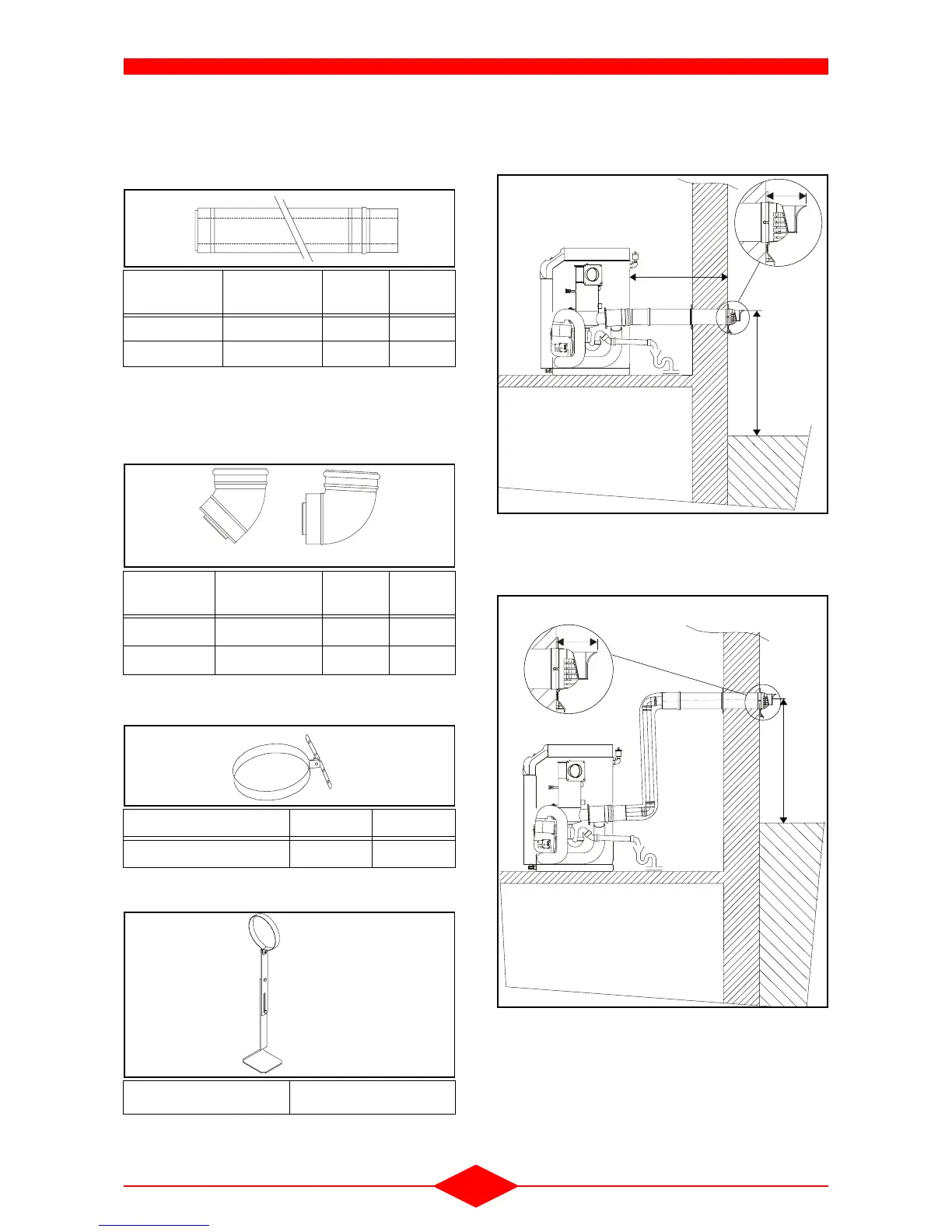

INSTALLATION
3.3.2.4 - PPtl/PVC
Concentric extension (option)
Joint fitting.
(*) Useful length after assembly - L = 0,45 m or 0,95 m
3.3.2.5 - PPtl/PVC
concentric elbow (option)
Joint fitting.
3.3.2.6 - Fastening collar (optional)
3.3.2.7 - Adjustable support
3.3.2.8 - Installation examples
3.3.2.8.1 - Straight balanced flue
Accessory:
- 1 straight horizontal balanced flue kit - l = 0,95 m
3.3.2.8.2 - Angled balanced flue with hose
Accessory:
- 1 angled horizontal balanced flue kit - l = 3 m
Reference
Length
mm
∅ int.
mm
∅ ext.
mm
N40.28397 500 80 125
N40.28398 1000 80 125
Reference Bend type
∅ int.
mm
∅ ext.
mm
N40.28395 45° 80 125
N40.28396 90° 80 125
Reference Number ∅ (mm)
B00.29727 3 125
Reference
V72.29939
AM5-23-0
Fig. 21
AM5-24-0
90° Bend
Fig. 22
45° Bend
AM5-26-0
Fig. 23
PDG-SUP
Fig. 24
2
m
m
i
n
i
m
u
m
0,77 m
F
C
X
-
1
6
-
0
130
Fig. 25
2 m
minimum
F
CX-17-0
130
Fig. 26
