geminox THR 10-100 Series User Manual


&200,66,21,1*
  2XWVLGHWHPSHUDWXUHVRXUFH
A single outside sensor is required for several linked
regulators. It can be connected to any regulator and
transmits the signal via the bus system, but it is sim-
pler to always connect it to the same regulator i.e.
the master RVA 47 regulator (segment 0,
address 1).
To control communication, the location of the out-
side sensor can be checked.
  59$5HJXODWRU
  59$5HJXODWRU
Regulators with no connected sensors receive the
outdoor temperature signal via the system with bus,
from a regulator to which a sensor is connected.
6HWWLQJ

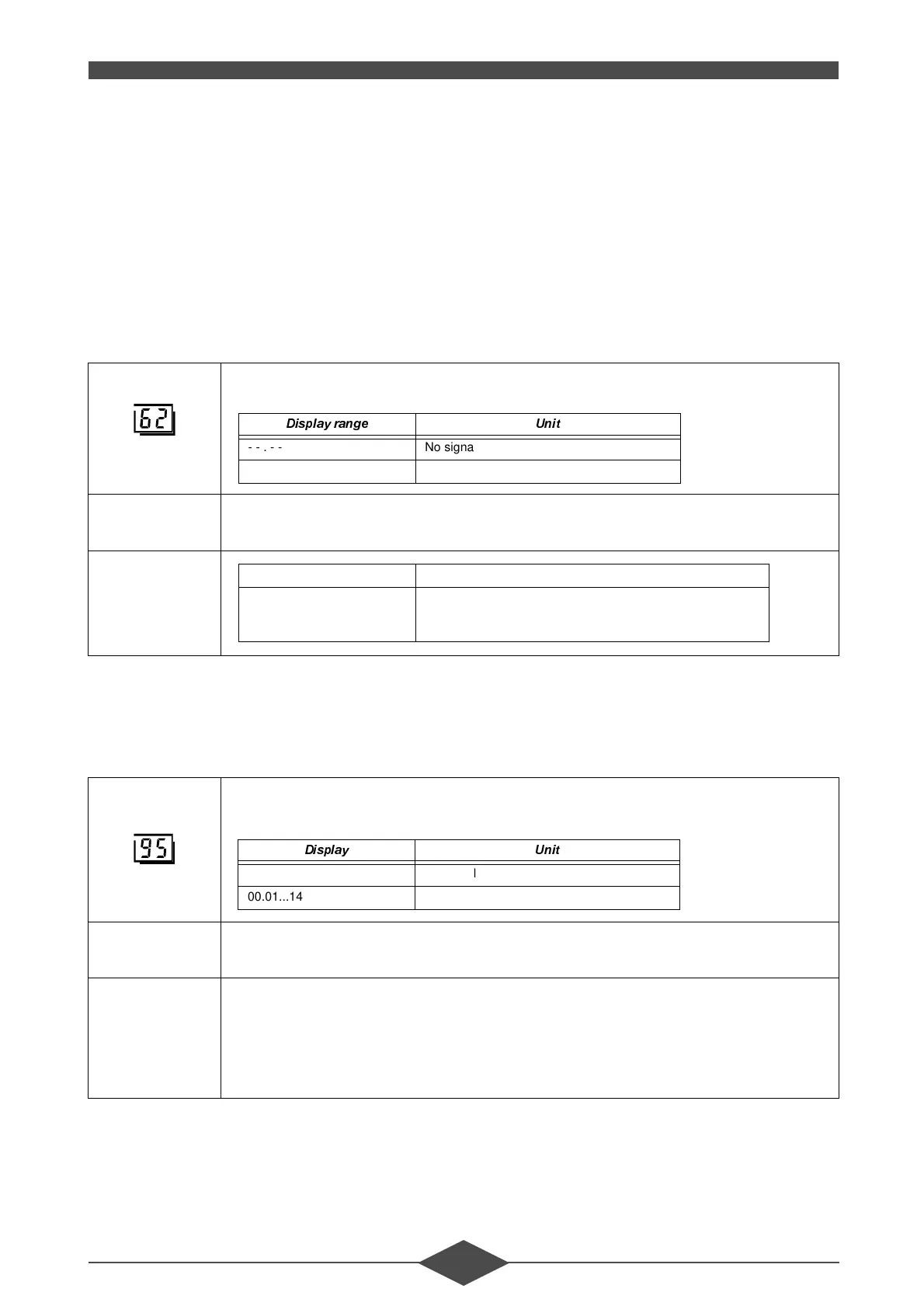

- Press the line selection buttons to select programming line 62.
- No setting can be made with the plus / minus buttons.
(IIHFW The address of the outside detector that currently delivers the outside temperature
signal will automatically be displayed on this line.
'LVSOD\V
'LVSOD\UDQJH 8QLW
- - . - - No signal
00.01...14.16 Segment and unit address
- - . - - No outside sensor signal
00.01 Segment and unit address
The first two digits represent the segment number (00.)
The second two digits represent the device number (.01)
6HWWLQJ
- Press the line selection buttons to select programming line 95.
- No settings can be made with the plus / minus buttons.
(IIHFW The address of the outdoor temperature sensor that is currently delivering the outside
temperature signal will automatically be displayed on this programming line.
'LVSOD\
'LVSOD\ 8QLW
- - . - - No signal
00.01...14.16 Segment and device address
- - . - - No outside sensor reading
00.01 Address of outside sensor
The first two digits represent the segment number (00.)
The second two digits represent the unit number (.01)
