Mounting & Connecting
Cymbal Pickups
●
●
●
●
●

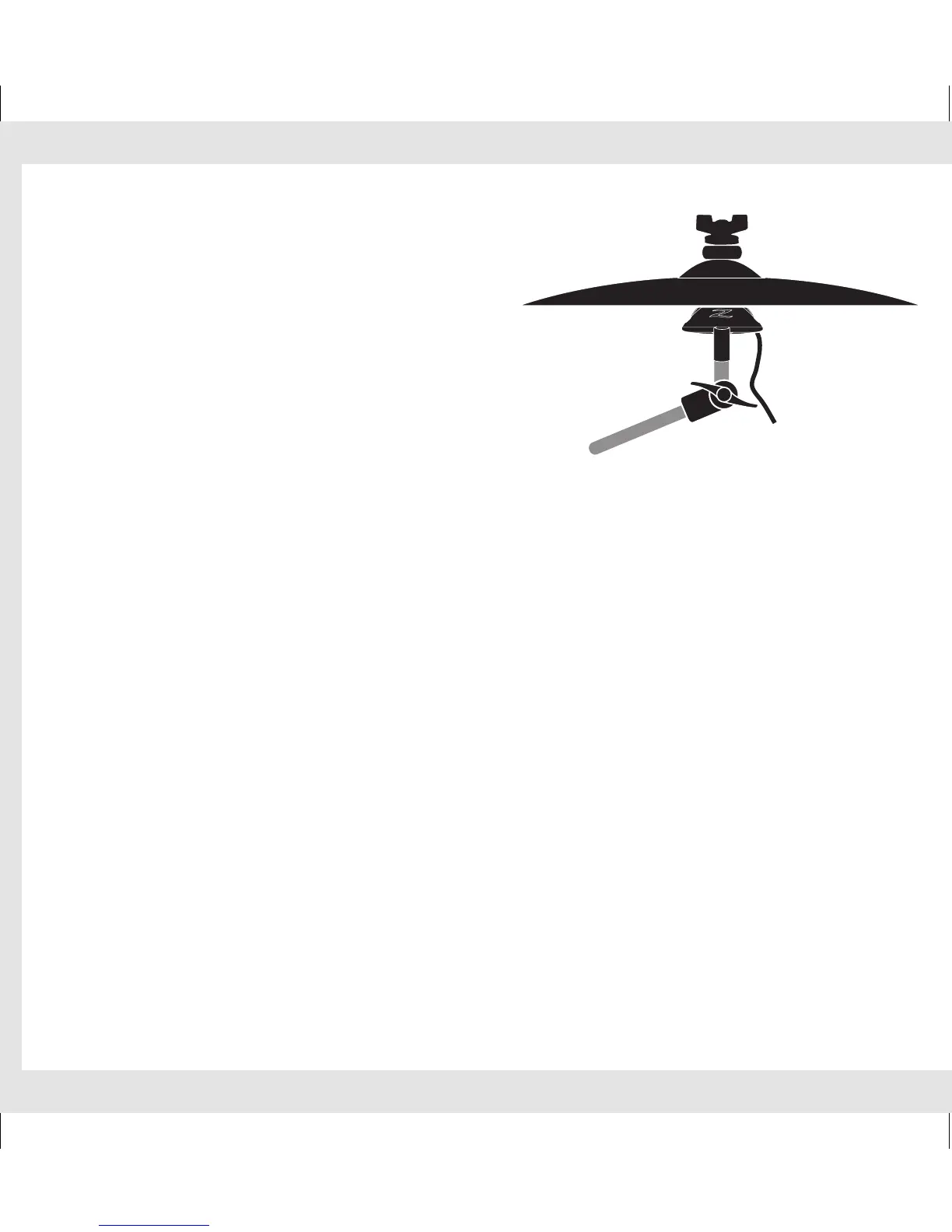

CYMBAL PICKUP:
Remove the existing cymbal felts and cymbal stand sleeve.
Place the supplied AE cymbal sleeve on the stand by simply sliding a sleeve over the
cymbal stand’s threaded shaft.
Place pickup over cymbal sleeve and align hex nut pattern. Place foam washer #1 over
top of pickup.
Place cymbal on foam washer. Place foam washer on top of cymbal #2 (If needed, place
optional second foam washer on top of cymbal). Note: Use size and amount of foam wash-
ers based on length of cymbal shaft.
Place cymbal disk on top of foam washer. Place cymbal stand wing nut on shaft above
cymbal disk and tighten.
Positioning Pickups (Chrome Mesh Microphones Holes):
Cymbals: Place at 9:00 and 3:00
Ride Cymbal: Place at 12:00 and 6:00
Note:
The Gen16 foam washers have been specially designed to provide optimum results
with your AE Cymbals.
To avoid audio wash, limit cymbal movement, by keeping cymbal secure (tighten
wing screw).
Avoid playing directly over the Chrome Mesh Microphone Holes.
