Gen16 Box Set 480 - Mounting & Connecting Hihat Pickup

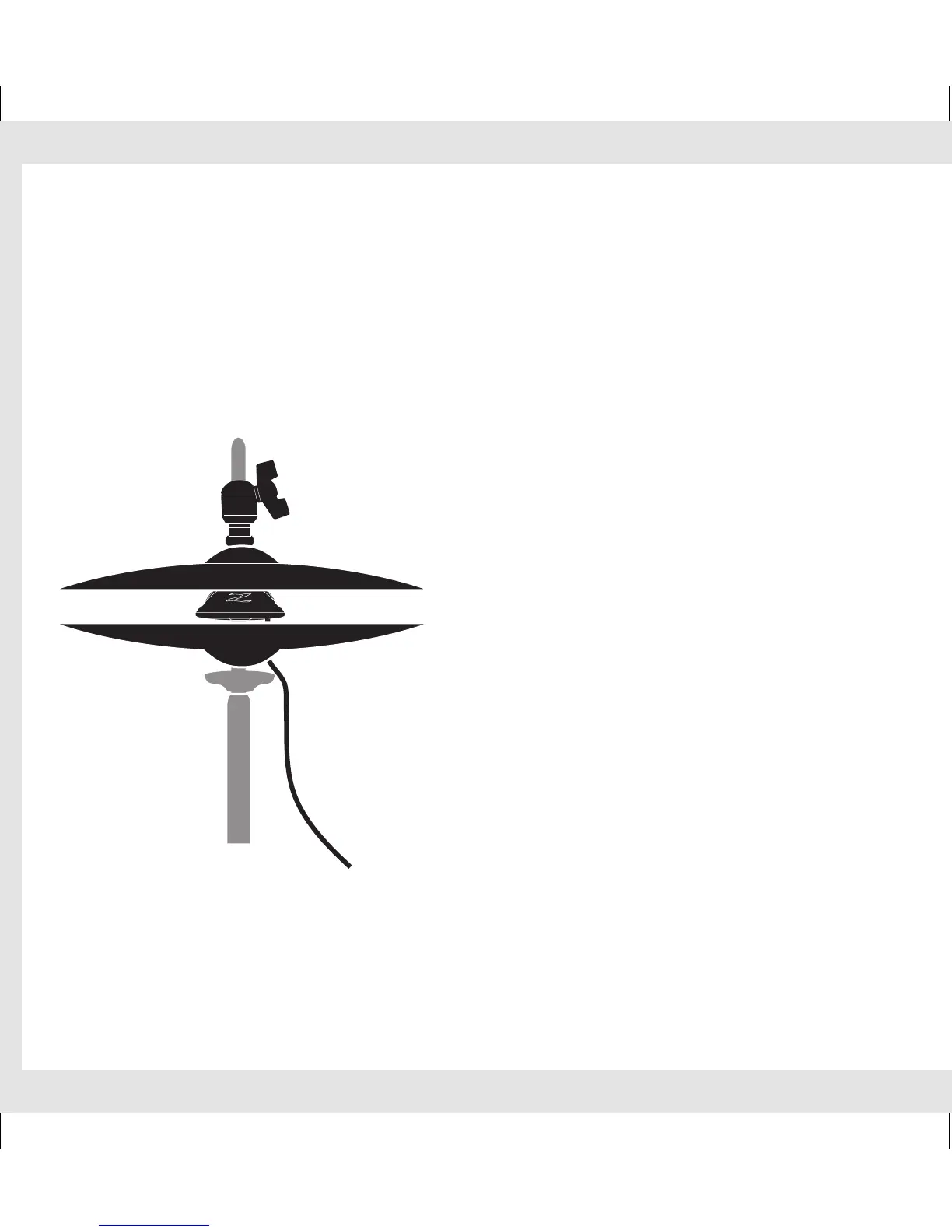

HIHAT PICKUP:
Remove bottom clutch nut and lower foam washer.
Leave upper foam washer on the clutch!
Place top HiHat cymbal on clutch shaft (bell up)
below the upper foam washer (the top HiHat cymbal
should rest over black area on HiHat clutch shaft).
Slide lower foam washer on HiHat clutch shaft over
black area. Place pickup on HiHat shaft (light ring
towards bottom).
Insert clutch nut (hex nut up) into bottom of pickup.
Screw until tight (do not overtighten).
Pass HiHat cable (right angle end) through bottom
HiHat cymbal.
Place bottom HiHat cymbal on stand. Insert cable
(plug) into HiHat pickup jack.
Slide clutch with top HiHat cymbal on to the HiHat
stand pull rod (HiHat stand sold separately).
Mounting & Connecting
HiHat Pickup
