Note: The positioner leaves the factory with the SPAN stroke adjustment device in the "DA"
(direct action) position.
In the case of it being necessary to change the action direction (Reverse Action), proceed
as follows:
• Remove the cover of the positioner.
• Remove the support screw from the Regulation lever.
• Rotate the Span Regulation device 180º until the span adjustment screw is in the
position opposite the gauge (see diagram).
• Secure the Regulation Lever in place with the screw.
• If it is necessary to reverse the position of the lever, remove the spring holding it in
place and then when the lever is in place once again place it in its original position.
6.4 Air Connection
Caution: Ensure that the supply air to be used is dry, clean and filtered

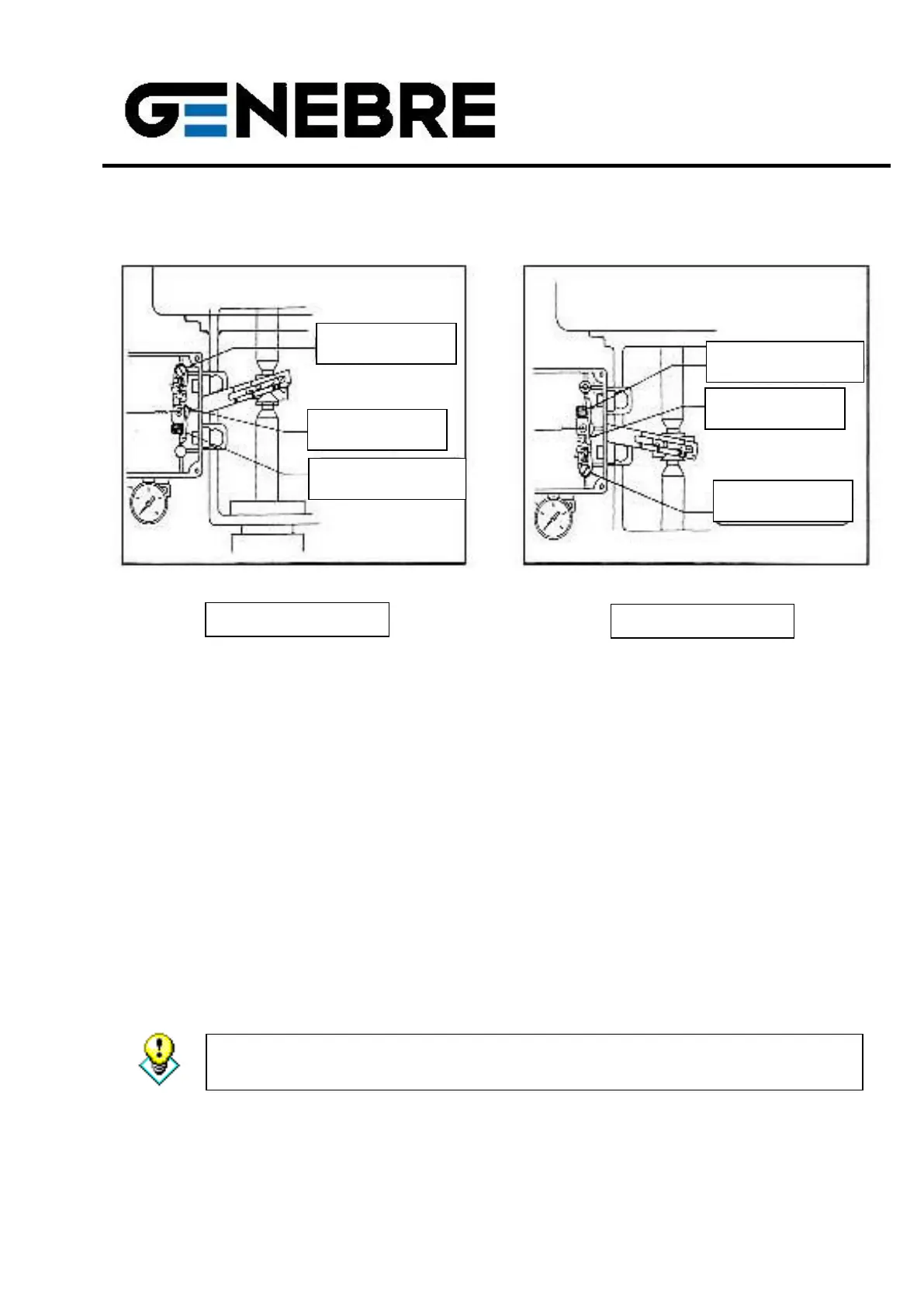

Direct Action
Reverse Action
Support Screw
for regulation lever
Span Regulation
Device
Stroke Adjustment
Screw
Support Screw
for regulation lever
Span Regulation
Device
Stroke Adjustment
Screw
