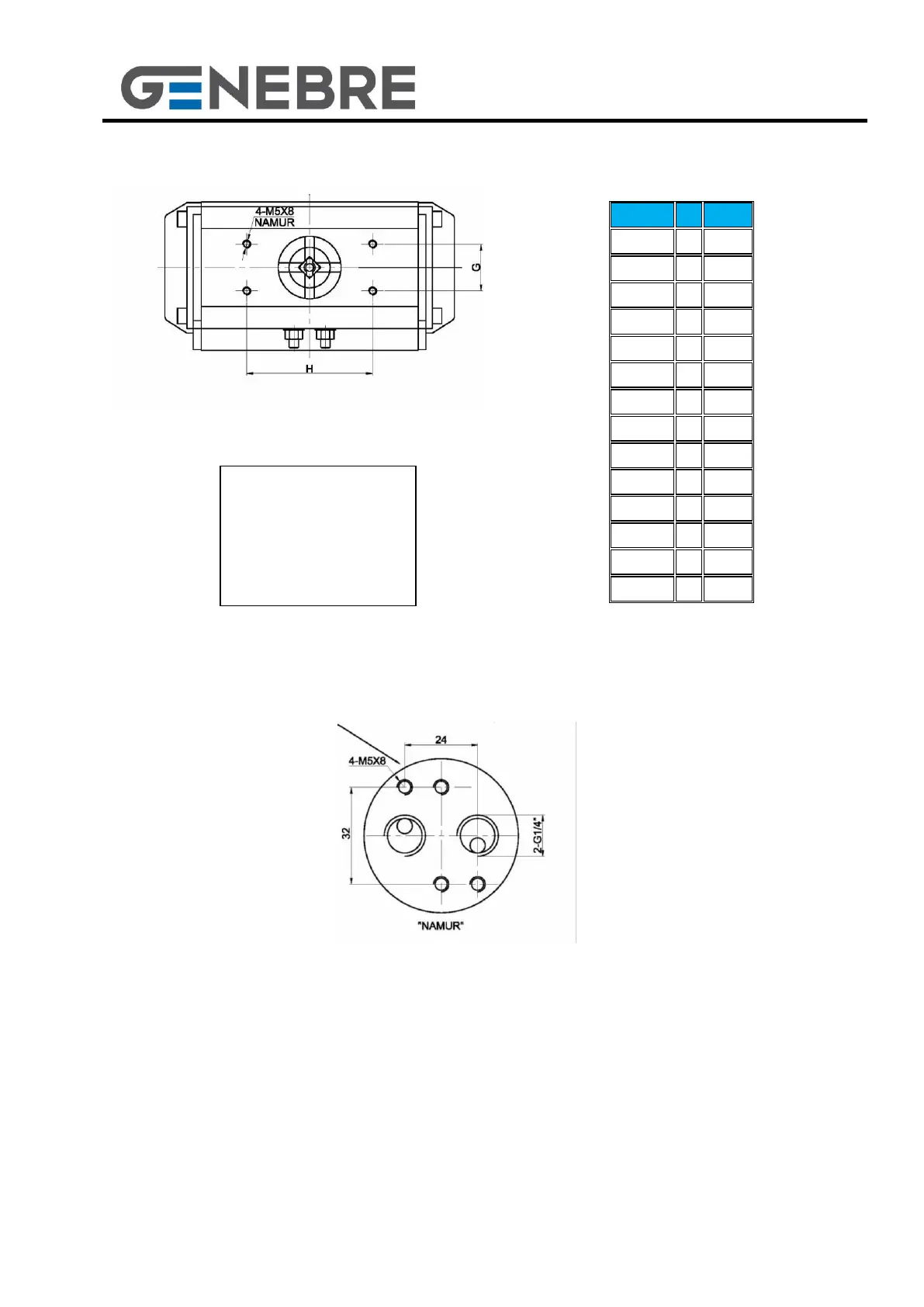

Figura 3.b
The Ports are NAMUR standard for easy solenoid valve connection
Installation procedure.
1. Check the coupling female pinion drive – valve stem.
2. Make sure that the valve and the actuator are both in the closed position before
proceeding (see Figure 3.b).
3. Install mounting bracket on the valve and hand tighten all fasteners; be sure not to fully
torque bolts until entire assembly is correctly aligned and installed.
Model
G
H
GNP14
30
80
GNP24
30
80
GNP44
30
80
GNP60
30
80
GNP94
30
80
GNP135
30
80
GNP198
30
80
GNP300
30
80
GNP513
30
80
GNP800
30
80
GNP1280
30
80/130
GNP1600
30
80/130
GNP2300
30
80/130
GNP2500
30
80/130
Figure 3.b shows an
actuator in the normal
position (closed) with the
pinion flats and the
indicator – drive milling
perpendicular to the
body
