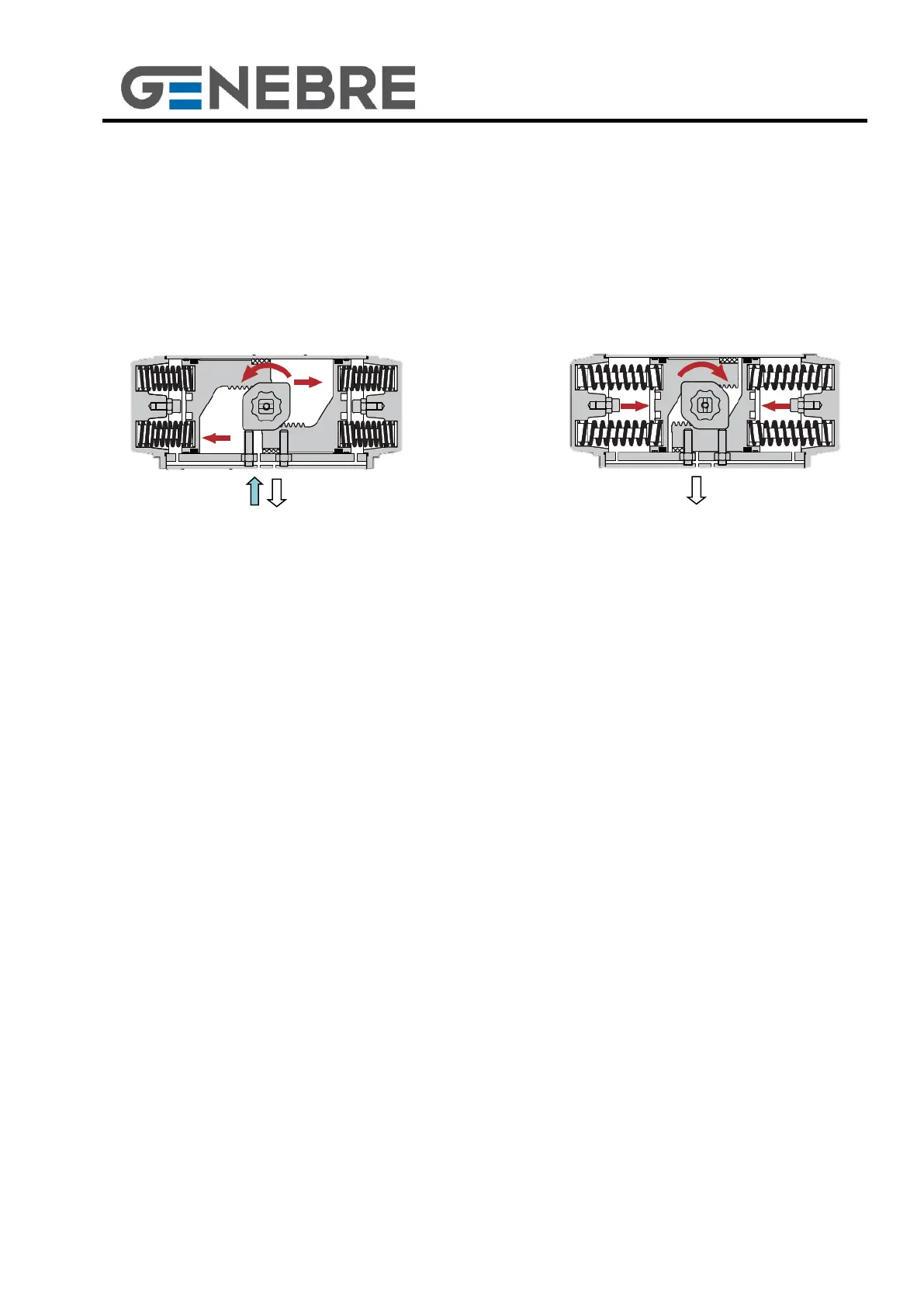

• Relieving pressure from the inboard cavity through Port A, as shown in Figure
Standard rotation, allows the spring cartridges (ref. 13) to push both pistons (ref. 16)
inward. As the pistons retract they rotate the pinion (ref. 10) clockwise (when viewed from
the top of the actuator).
Standard Rotation
3.2) Technical Data & Working Conditions
• Operating Media – Dry or lubricated air, non-corrosive and inert gas or light hydraulic
oil.
• Air supply: 2 Bar (30 PSIG) to 8 Bar (120 PSIG) maximum. A safety valve is normally
recommended.
• Temperature: Standard from –20°C a +80°C and –15°C +150°C available on request.
• Lubrication: Factory lubricated for life under normal working conditions with Exxon
CAZAR K2 or equivalent
• Application: Suitable for both indoor and/or outdoor applications.
3.3) Special Conditions
• Operating the actuator beyond its designed temperature limitations may damage
internal and external components and, therefore, could prove potentially dangerous for
operating and maintenance personnel.
• Operating the actuator beyond its designated pressure limitations may result in either an
actuator malfunction or an actuator explosion and, therefore, could prove potentially
dangerous for operating and maintenance personnel.
