Genelec 6010A - Page 6

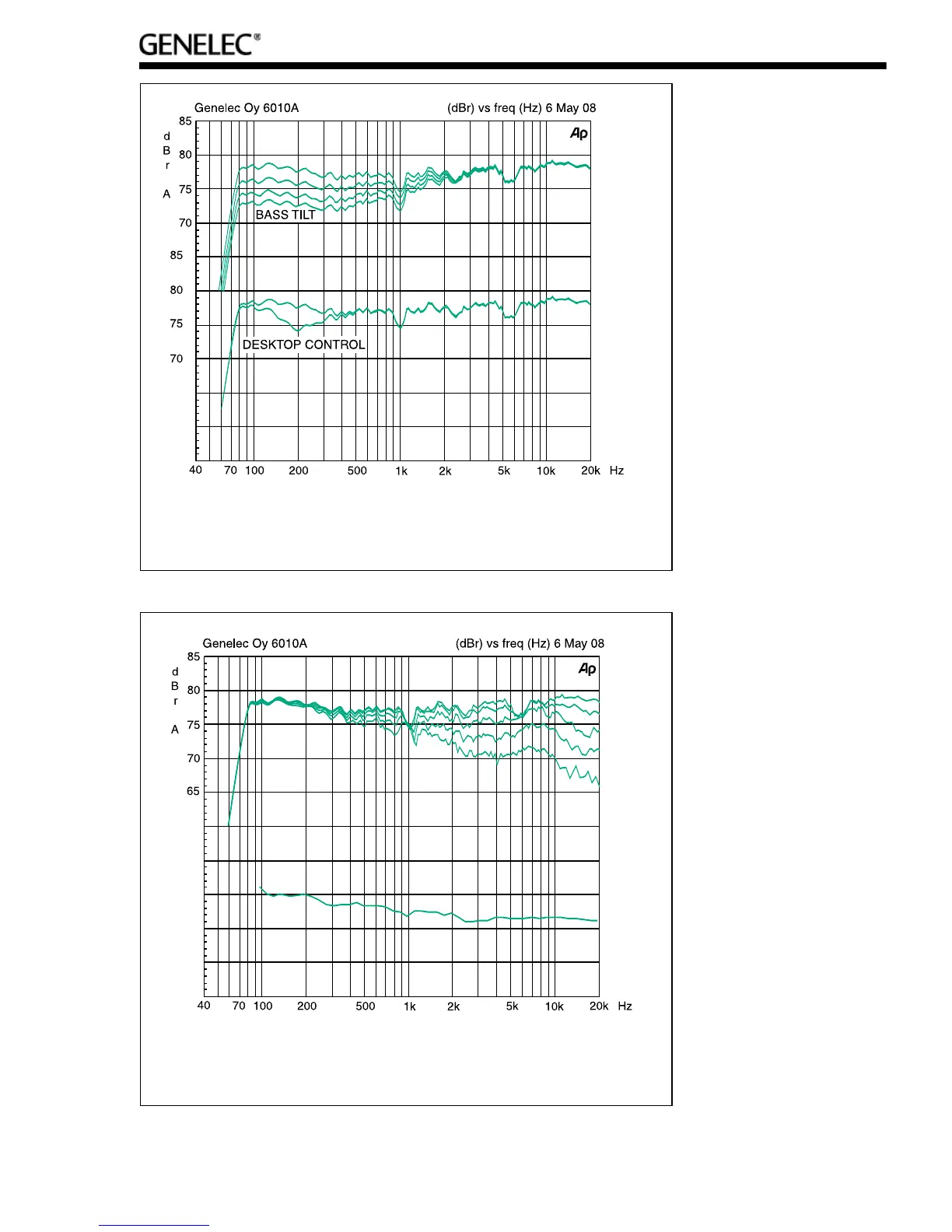

Figure 4. The curves above show the effect of the “Bass Tilt” and
“Desktop” controls on the free field response of the 6010A.
Figure 5. The upper curve group shows the horizontal directivity
characteristics of the 6010A measured at 1 m. The lower curve
shows the system's power response.
