ceiling. This results in a precise and stable
sound image
If the AIW26B loudspeakers are used
in an application where their capability for
precise sound imaging is needed, such as
the front channels of a Surround Sound
system or a Stereo system, we recommend
that the loudspeakers are placed as far
as possible from wall cornersand other
reective surfaces. The loudspeakers should

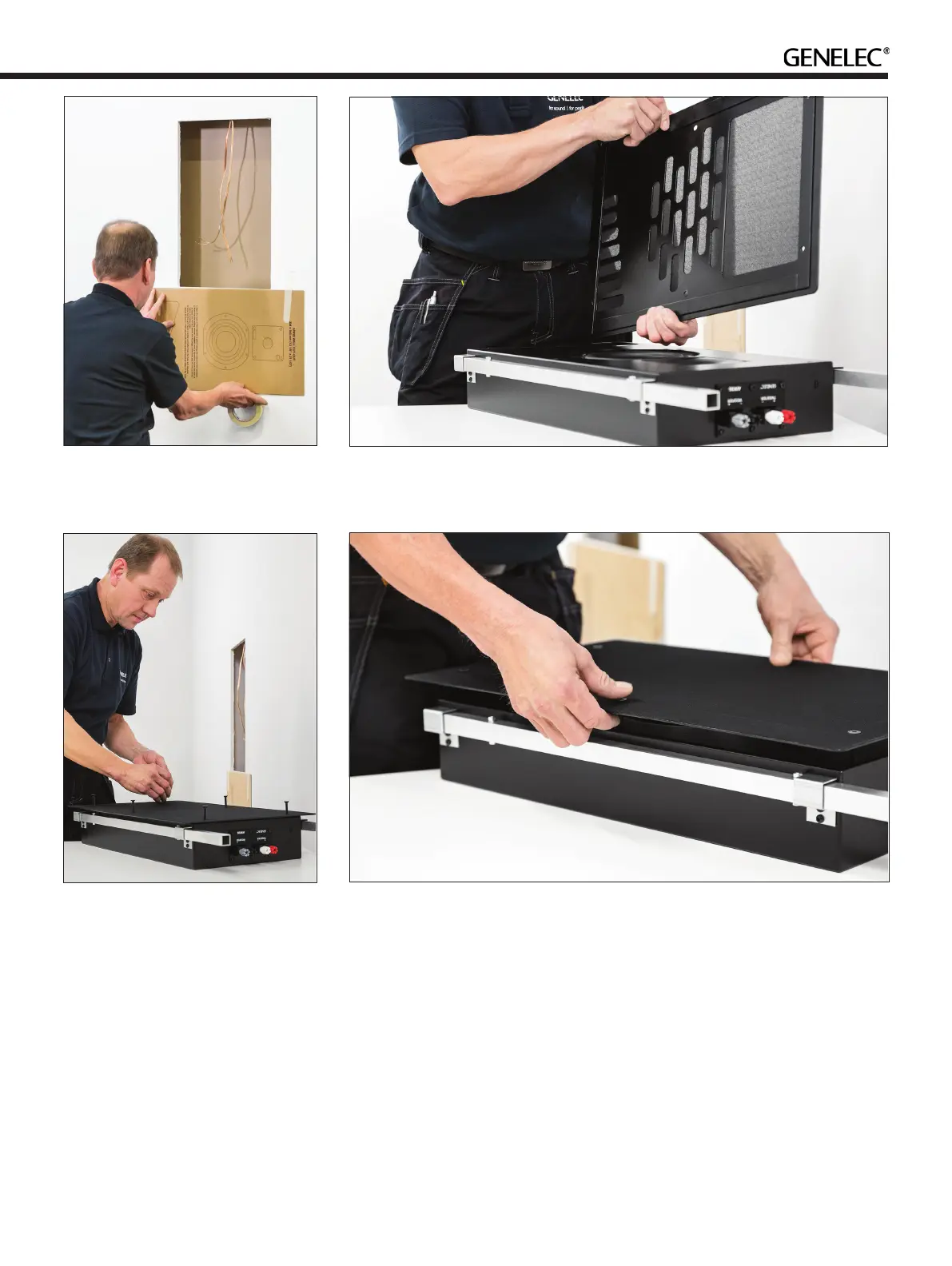

Figure 4. Place the mounting ange on the loudspeaker. Note that the large opening goes
on top of the tweeter. Check the ID number on the loudspeaker and ensure that the RAM1
amplier with the same ID number will be connected to this loudspeaker.
Figure 5. Attach the six Torx screws by
screwing them in a few turns.
Figure 3. Attach the cut-out template under
the hole for protection against scratches.
Figure 6. Take a grip on the mounting ange just below the middle screws and lift the
loudspeaker enclosure up. Do not put pressure on the cloth, as it stretches easily.
be placed symmetrically in relation to the
listening position and there should be no
obstructions between the loudspeaker
and the listener. This guarantees clear
dialogue in lms and a good stereo image
with music. Figure 2 shows a Left-Center-
Right arrangement that works well both as
Surround Sound front channels and a Stereo
pair.
If you prefer a diuse sound eld, which
is less critical to the listening position, for
instance in a rear/side channel setup in a
Home Theater system, you may actually
benet from the acoustical reections from
nearby boundaries. In this case, place the
loudspeakers close to the ceiling or another
wall, or have them face away from the
listening position, so that the proportion of
reected sound increases.
