Genelec AIW26B Operating Manual

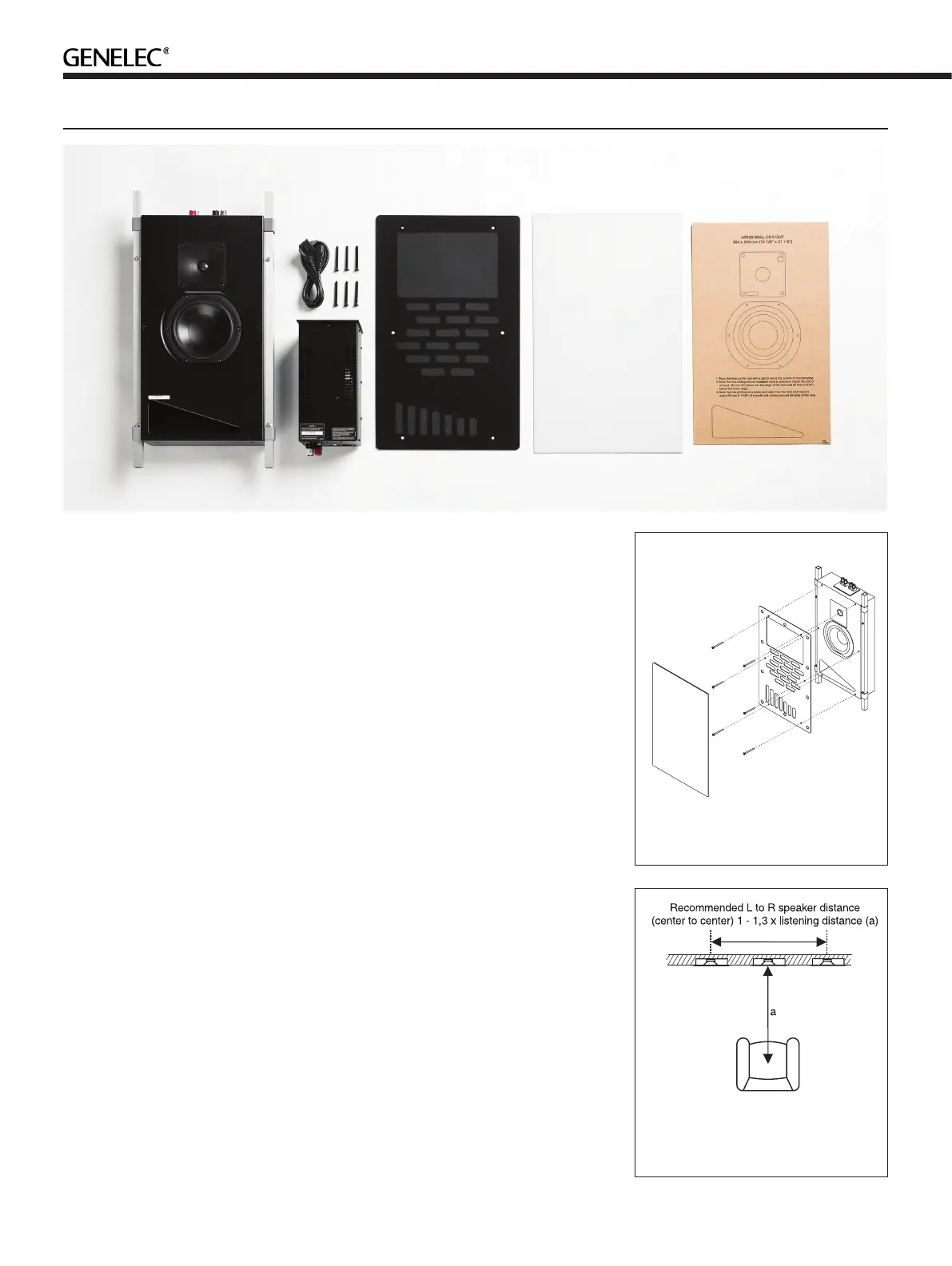

Figure 1. The grille, mounting ange
and loudspeaker unit of the AIW26B
Figure 2. Symmetrical L-C-R
loudspeaker placement
The Genelec AIW26B Active In-wall
loudspeaker system consists of a bass
reflex type two-way loudspeaker and
a matched remote amplifier module,
RAM1. It has been designed to the same
rigorous standards as Genelec’s high-
performance HT series active Home
Theater loudspeakers. The AIW26B
can be used in the most demanding
applications, like the main L-C-R array of
a Home Theater system, critical Stereo
listening or rear/side channels of a large,
state-of-the-art Home Theater.
Unpacking
A Genelec AIW26B set includes the items
listed below. Check that nothing is missing
or damaged during transport and delivery.
If there is a problem with the product,
contact your local Genelec dealer.
• AIW26B loudspeaker unit with two
mounting brackets attached.
• Mounting ange and grille
• AIW26B cardboard cut-out
template
• RAM1 amplier unit
• Mains power cable
• Six M6x60 Torx 30 screws
• Plexiglass cover for the control
switches
• This Operating Manual
Installation
Genelec recommends that you use the
services of an authorized installation
specialist or other competent and
experienced installation company for the
installation of the AIW26B system. Ask your
local Genelec dealer for recommended
installation companies in your region.
Matching loudspeakers
and amplifiers
Each AIW26B loudspeaker unit has been
factory calibrated for optimum performance
with the RAM1 amplifier it is shipped
with. Never mix these matched amplifier-
loudspeaker systems in the installation
process. The matching units are marked with
the same ID number on the reex port of the
AIW26B and the top panel of the RAM1 .
Loudspeaker placement
Genelec AIW26B loudspeakers are
equipped with Genelec’s proprietary
Directivity Control Waveguide (DCW). One
of the main characteristics of the DCW
technology is that the loudspeakers give
a very even and consistent frequency
response over a larger listening area than
conventional loudspeakers. A secondary
function of the DCW is to reduce the o-axis
radiated sound energy, thereby minimizing
the reections from the side walls, oor and
