Model No. 1450–0 (2400 PSI Pressure Washer) Manual No. 185694GS Revision 5 (06/03/2002)

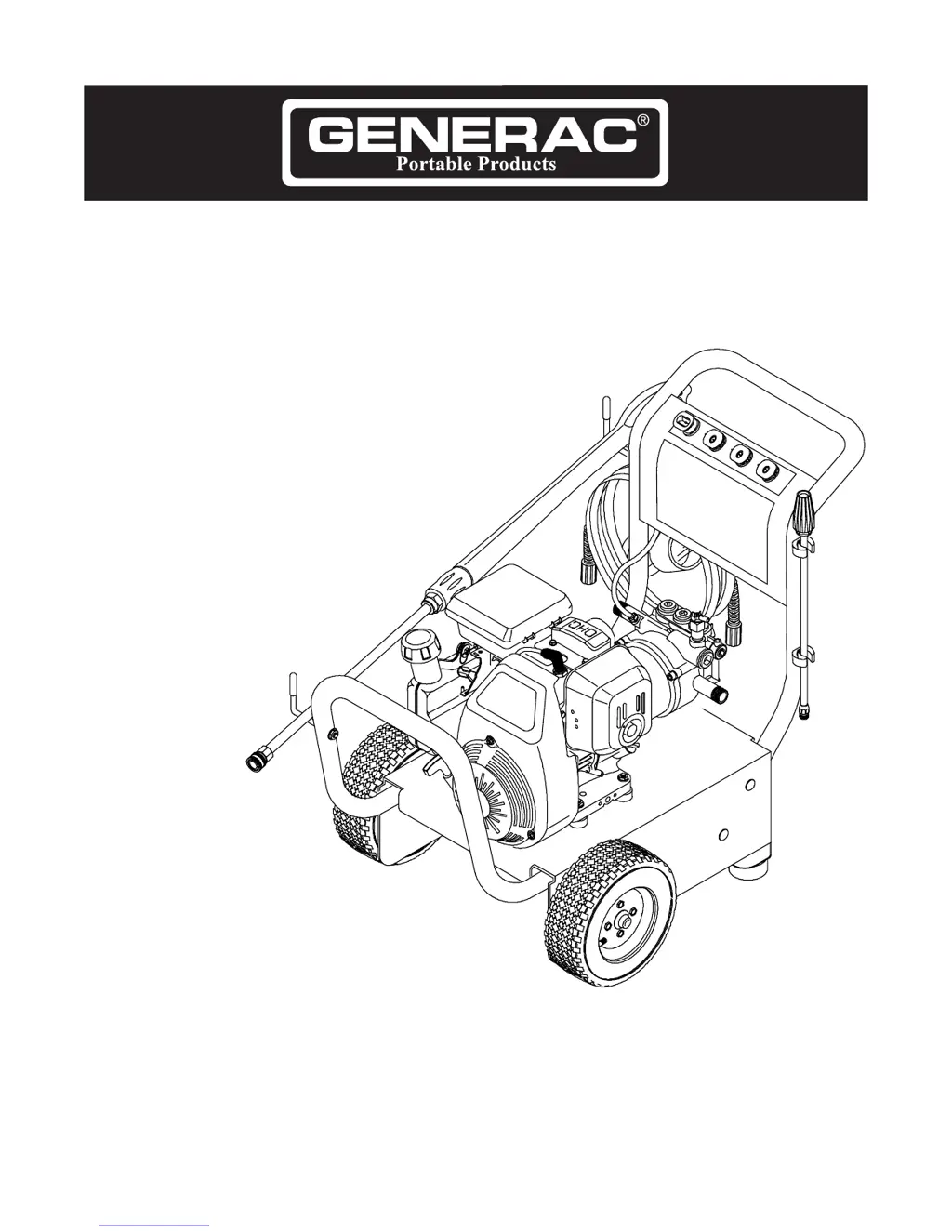

Pressure Washer Owner’s Manual
2400PSI
Questions? Help is just a moment away!
Call: Generac Generator Helpline - 1-800-270-1408 M-F 8-5 CT
Web: www.generac-portables.com

Questions and Answers

  • S
    Sarah WheelerSep 12, 2025
    Why won't my Generac Portable Products 2400PSI engine start or runs rough?
    • Z
      Zachary PenningtonSep 12, 2025
      If your Generac Portable Products Pressure Washer engine won't start or runs roughly, consider these possibilities: the oil level may be low (fill the crankcase), the air cleaner could be dirty (clean or replace it), you might be out of gasoline (fill the tank), the gasoline could be stale (drain and refill with fresh fuel), the spark plug wire may not be connected (connect it), or the spark plug might be bad (replace it). Also, check for water in the gasoline (drain and refill), or overchoking (open choke fully and crank engine).
  • R
    rschroederSep 18, 2025
    What should I do if my Generac Portable Products 2400PSI Pressure Washer engine hunts or falters?
    • J
      James PopeSep 18, 2025
      If your Generac Portable Products Pressure Washer engine “hunts” or falters, it might be because the choke is opened too soon. To fix this, move the choke to the halfway position until the engine runs smoothly.
  • B
    Benjamin BoltonSep 3, 2025
    Why does my Generac Portable Products 2400PSI Pressure Washer have low pressure?
    • J
      Jason KeithSep 3, 2025
      There are several reasons why your Generac Portable Products Pressure Washer might have low pressure. It could be due to the nozzle being in low pressure mode—try pulling the nozzle backward for high pressure. Other potential causes include a blocked water inlet (clear it), inadequate water supply (provide adequate flow), a kinked or leaking inlet hose (straighten or patch), a clogged inlet hose strainer (check and clean it), water supply being over 140°F (use cooler water), a blocked or leaking high pressure hose (clear blockages), a leaking gun (replace it), or an obstructed nozzle (clean it). If none of these resolve the issue, the pump may be faulty, and you should contact a Generac service facility.
  • T
    Tracy EdwardsAug 26, 2025
    How to fix detergent not mixing with spray in Generac Portable Products Pressure Washer?
    • N
      natasha29Aug 27, 2025
      If the detergent is not mixing with the spray from your Generac Portable Products Pressure Washer, here are a few things to check: 1. Ensure the detergent siphoning tube is fully submerged in the detergent. 2. Check and clean the chemical filter; replace it if necessary. 3. Make sure the nozzle is in low-pressure mode by pushing it forward.
  • S
    sfieldsAug 27, 2025
    Why does my Generac Portable Products Pressure Washer engine shut down?
    • R
      Richard ParkerAug 27, 2025
      If your Generac Portable Products Pressure Washer engine shuts down during operation, the most likely cause is that it is out of gasoline. Simply fill the fuel tank.
  • R
    Rebecca Hernandez PhDAug 28, 2025
    How to restore power to my Generac Portable Products Pressure Washer engine?
    • M
      Mary BrownAug 28, 2025
      If your Generac Portable Products Pressure Washer engine lacks power, the air filter might be dirty. Try replacing the air filter.
  • E
    Erika PaceSep 18, 2025
    Why is my Generac Portable Products Pressure Washer pump not building pressure?
    • V
      vrussoSep 19, 2025
      There are several reasons why your Generac Portable Products Pressure Washer pump might not be building pressure. It could be due to the nozzle being in low pressure mode—pull it backward for high pressure. Other potential causes include a blocked water inlet (clear it), inadequate water supply (provide adequate flow), a kinked or leaking inlet hose (straighten or patch it), a clogged inlet hose strainer (check and clean it), water supply being too hot (use cooler water), a blocked or leaking high pressure hose (clear the block), a leaking gun (replace it), or an obstructed nozzle (clean it).
  • J
    John HolderSep 23, 2025
    Why does my Generac Portable Products 2400PSI engine hunt or falter?
    • A
      Amy MartinezSep 23, 2025
      If your Generac Portable Products Pressure Washer engine hunts or falters, it might be because the choke is opened too soon. Try moving the choke to the halfway position until the engine runs smoothly.
  • W
    William EricksonSep 12, 2025
    What to do if detergent fails to mix with spray in my Generac Portable Products 2400PSI Pressure Washer?
    • J
      jeffreymorenoSep 12, 2025
      If the detergent fails to mix with the spray in your Generac Portable Products Pressure Washer, make sure the detergent siphoning tube is submerged in the detergent. Another cause might be a clogged chemical filter, which you should clean or replace. Finally, check if the nozzle is in high pressure mode, and if so, push it forward for low pressure mode.
  • L
    Lisa HoltSep 5, 2025
    How to fix detergent not mixing in my Generac Portable Products Pressure Washer?
    • T
      Thomas MillerSep 5, 2025
      If detergent fails to mix with the spray in your Generac Portable Products Pressure Washer, make sure the detergent siphoning tube is submerged in the detergent. Also, check the chemical filter for clogs and clean or replace the filter/detergent siphoning tube if necessary. Finally, ensure the nozzle is in low pressure mode by pushing it forward.

Summary

SAFETY RULES

Operational and Hazard Safety

Covers fuel handling, electrical safety, high pressure water risks, and engine exhaust dangers.

Mechanical and Thermal Hazards

Warns about risks from rotating parts, hot surfaces, and entanglement.

KNOW YOUR PRESSURE WASHER

ASSEMBLY

Unpacking and Initial Setup

Steps for removing the unit from the carton and attaching the main handle.

Connecting Hoses and Water Supply

Guides on attaching the high-pressure hose, garden hose, and ensuring water supply.

OPERATION

MAINTENANCE

TROUBLESHOOTING

Common Problem Diagnosis and Solutions

Addresses issues like low pressure, engine bogging, and starting difficulties with causes and fixes.

Generac Portable Products 2400PSI Specifications

General IconGeneral
Max Pressure2400 PSI
Flow Rate2.0 GPM
Power SourceGasoline
Weight48 lbs
Hose Length25 ft
EngineGenerac OHV
Nozzle Types0°, 25°, 40°, Soap
Flow Rate (GPM)2.0 GPM
