1.1 UNPACKING
• Remove all packaging material.
• Remove separate accessory box.
• Remove carton off the generator.
1.1.1 ACCESSORY BOX
Check all contents (Figure 1). If any parts are missing or damaged
locate an authorized dealer at 1-888-775-6937.
Contents include:
• Wheel Axle • Oil Funnel
• 2 – Washers • 2 – Wheels
• 2 – Cotter Pins • Extension Cord
• Spark Plug • 12 Volt Adaptor Plug Charger
• Air Filter • Spark Plug Wrench
• Oil Filter • Shop Towel
• 2 – 1 Quart SAE 30 Oil Bottles

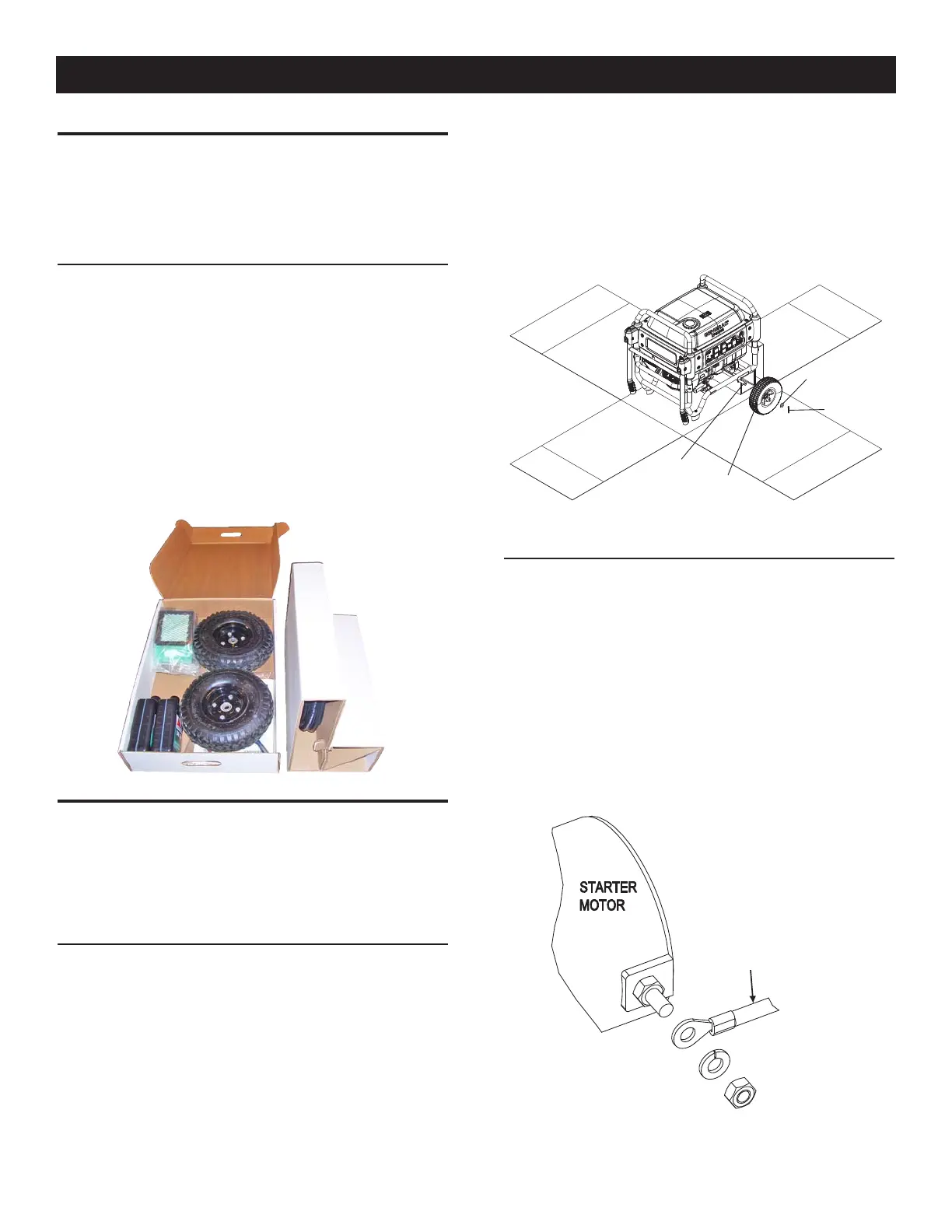

Figure 1 – Accessory Boxes
1.2 ASSEMBLY
Read entire Owner's Manual before attempting to assemble or
operate the generator. The generator requires some assembly
prior to using it. If problems arise when assembling the generator,
please call the Generator Helpline at 1-888-775-6937.
1.2.1 ASSEMBLING THE WHEEL KIT
The wheel kit is designed to greatly improve the portability of the
generator. A pair of pliers is needed for assembling the wheel kit.
NOTE:
The wheel kit is not intended for over-the-road use.
• Refer to Figure 2 and install the wheel kit as follows:
• Generator will be resting on an accessory box after box is cut
back.
• Open end of accessory box to remove contents.
• Slide the axle through the holes on the axle brackets.
• Slide one wheel with flat washer to the outside.
• Insert retaining pin and using pliers, bend out the ends to
prevent the pins from falling out of the axle. Repeat for other
side.
• Lift the engine side of the generator to pull out the insert.
Figure 2 – Wheel Assembly
Axle
Wheel
Cotter Pin
Flat Washer
1.2.2 BATTERY CONNECTION
NOTE:
The battery shipped with the generator has been fully charged.
A battery may lose some of its charge when not in use for
prolonged periods of time. If the battery is unabel to crank the
engine, plug in the 12V charger included in the accessory box
(see the Charging a Battery section). RUNNING THE GENERATOR
DOES NOT CHARGE THE BATTERY.
This wire was deliberately left detached for shipping. To operate
unit, attach this wire to terminal on starter motor as shown. Do not
overtighten. See Figure 3.
Figure 3 - Battery Connections
Starter Wire
(RED to Contactor)
4
General Information
