5

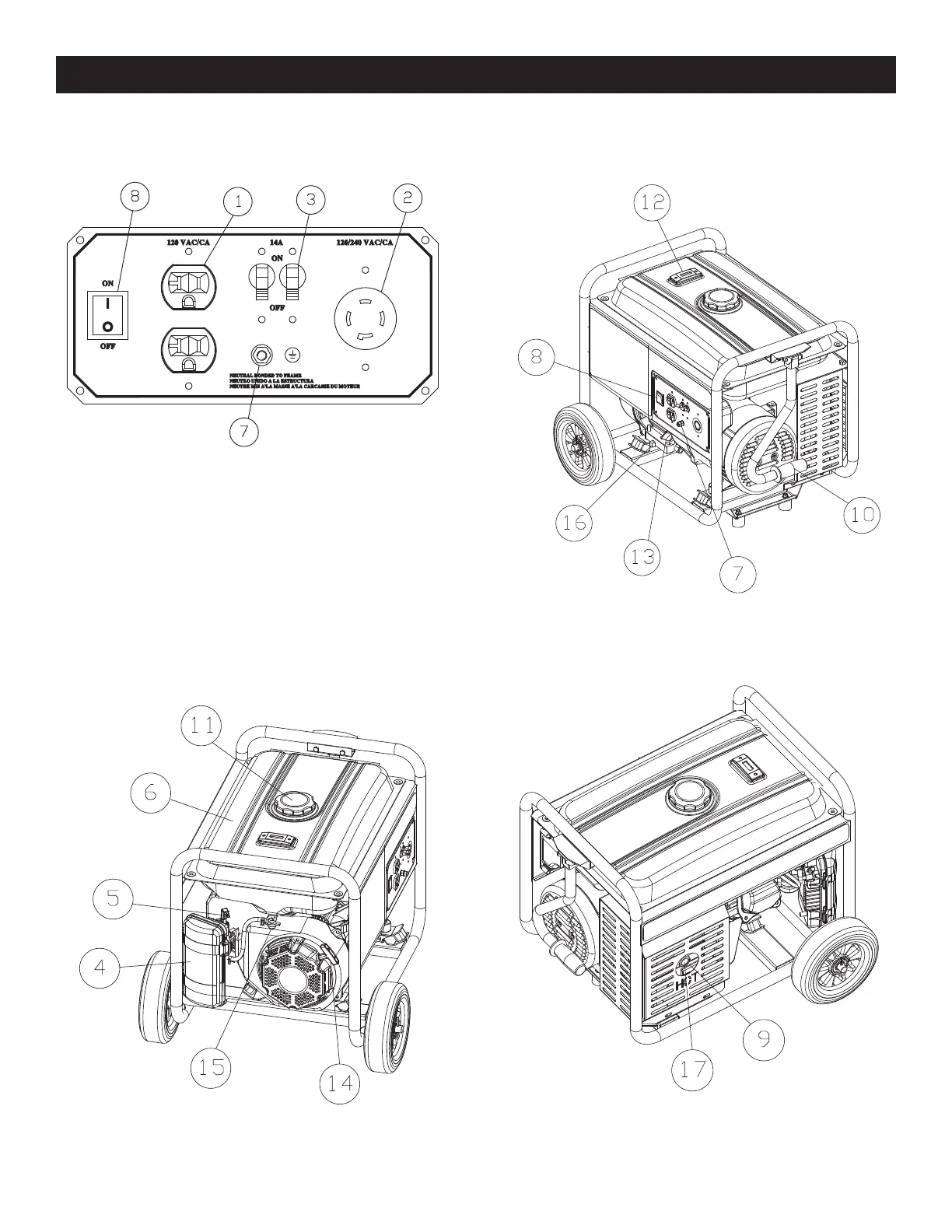

Figure 3 - Control Panel
9. Muffler – Quiets the engine.
10. Handle – Pivot and retract for storage.
11. Gas Cap – Fuel fill location.
12. Fuel Gauge – Shows fuel level in tank.
13. Oil Check/Fill – Check and fill oil here.
14. Recoil Starter – Use to start engine manually.
15. Fuel Shut Off – Valve between fuel tank and carburetor.
16. Oil Drain Plug – Used to drain engine oil.
17. Spark Arrestor – Reduces fire hazard by containing sparks.
Figure 4 - Generator Controls
Figure 5 - Generator Controls
Figure 6 - Muffler
Operation
