Generac Power Systems 10000EXL User Manual

Generac 10000EXL Extended Life Generator

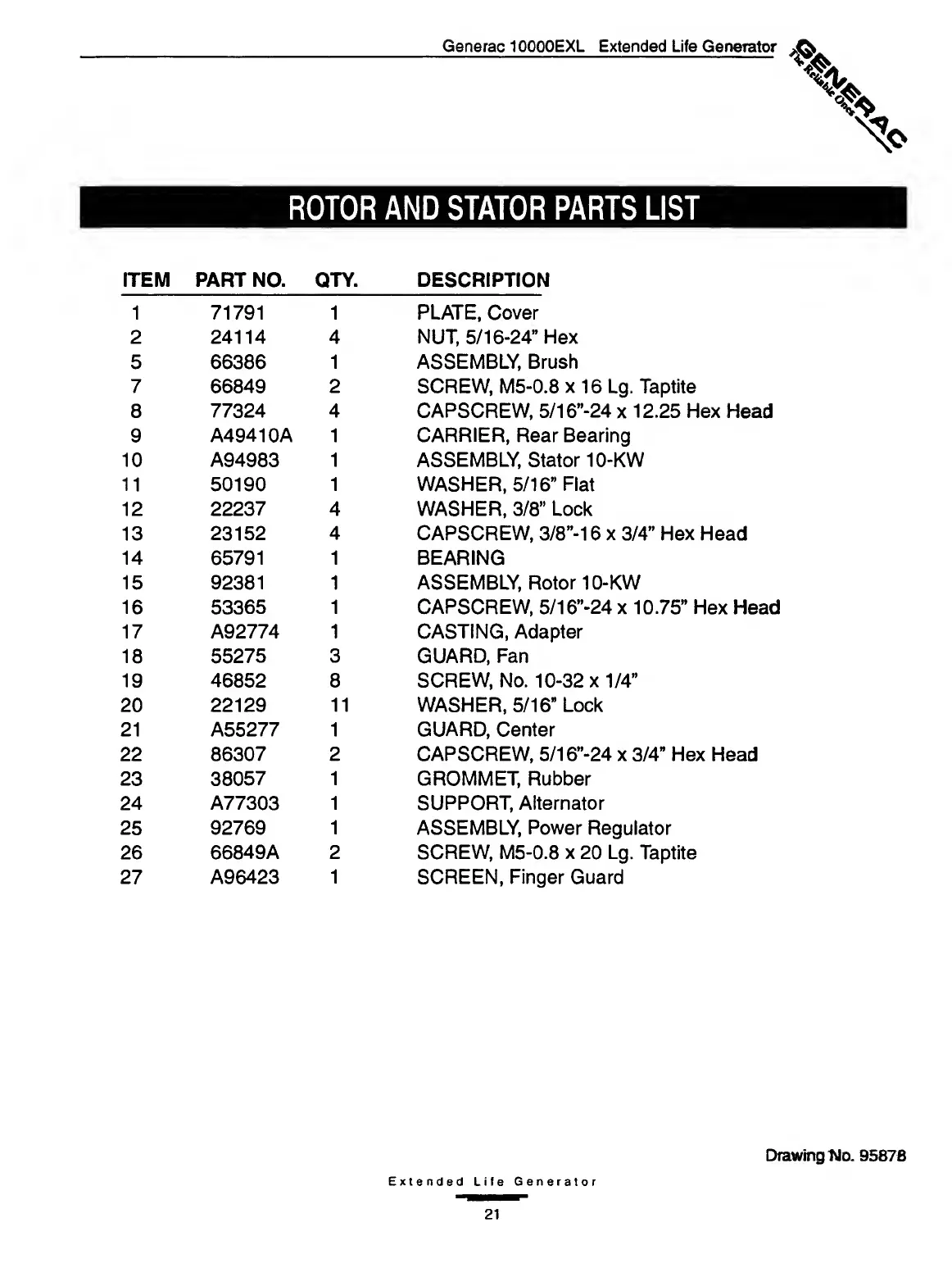

ROTOR AND STATOR PARTS LIST
ITEM PART NO.
QTY.
DESCRIPTION
1 71791 1 PLATE, Cover
2 24114 4 NUT, 5/16-24" Hex
5 66386
1 ASSEMBLY, Brush
7
66849
2
SCREW, M5-0.8 x 16 Lg. Taptite
8
77324 4
CAPSCREW, 5/16"-24 x 12.25 Hex Head
9
A49410A 1 CARRIER, Rear Bearing
10 A94983
1
ASSEMBLY Stator 10-KW
11 50190
1
WASHER, 5/16” Flat
12
22237
4 WASHER, 3/8” Lock
13
23152
4
CAPSCREW, 3/8”-16 x 3/4” Hex Head
14
65791
1
BEARING
15
92381 1
ASSEMBLY Rotor 10-KW
16
53365
1 CAPSCREW, 5/16”-24 x 10.75” Hex Head
17 A92774
1
CASTING, Adapter
18
55275 3
GUARD, Fan
19
46852 8 SCREW, No. 10-32 x 1/4”
20 22129
11
WASHER, 5/16” Lock
21
A55277
1 GUARD, Center
22
86307 2 CAPSCREW, 5/16”-24 x 3/4” Hex Head
23
38057
1
GROMMET, Rubber
24
A77303
1
SUPPORT Alternator
25
92769 1
ASSEMBLY, Power Regulator
26
66849A 2
SCREW, M5-0.8 x 20 Lg. Taptite
27 A96423
1
SCREEN, Finger Guard
Drawing Mo. 95878
Extended Lite Generator
21
