OPl-RATinN

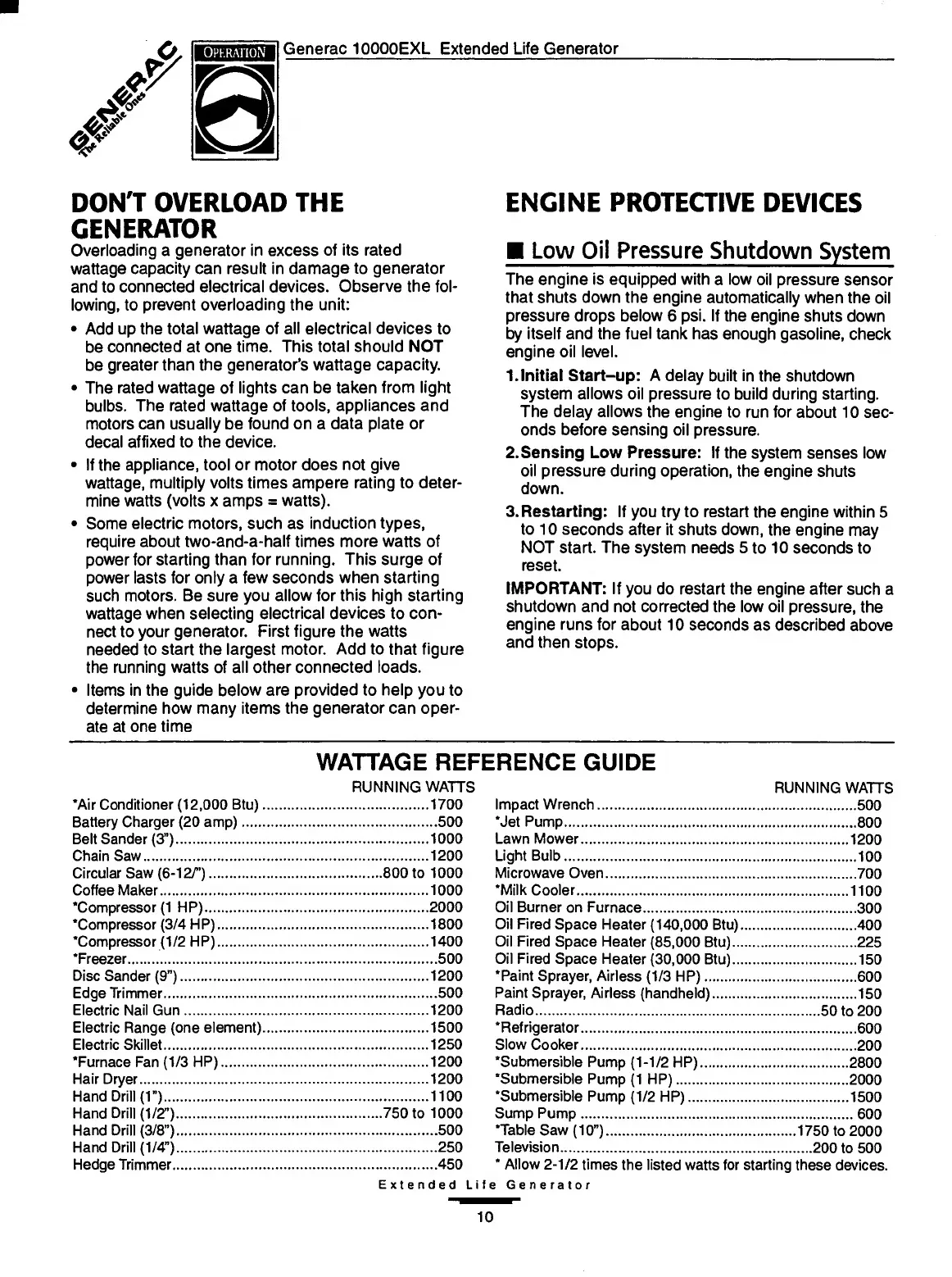

Generac 10000EXL Extended Life Generator
DON'T OVERLOAD THE
GENERATOR
Overloading a generator in excess of its rated
wattage capacity can result in damage to generator
and to connected electrical devices. Observe the fol¬
lowing, to prevent overloading the unit:
• Add up the total wattage of all electrical devices to
be connected at one time. This total should NOT
be greater than the generator’s wattage capacity.
• The rated wattage of lights can be taken from light
bulbs. The rated wattage of tools, appliances and
motors can usually be found on a data plate or
decal affixed to the device.
• If the appliance, tool or motor does not give
wattage, multiply volts times ampere rating to deter¬
mine watts (volts x amps = watts).
• Some electric motors, such as induction types,
require about two-and-a-half times more watts of
power for starting than for running. This surge of
power lasts for only a few seconds when starting
such motors. Be sure you allow for this high starting
wattage when selecting electrical devices to con¬
nect to your generator. First figure the watts
needed to start the largest motor. Add to that figure
the running watts of all other connected loads.
• Items in the guide below are provided to help you to
determine how many items the generator can oper¬
ate at one time
ENGINE PROTECTIVE DEVICES
M Low Oil Pressure Shutdown System
The engine is equipped with a low oil pressure sensor
that shuts down the engine automatically when the oil
pressure drops below 6 psi. If the engine shuts down
by itself and the fuel tank has enough gasoline, check
engine oil level.
1. Initial Start-up: A delay built in the shutdown
system allows oil pressure to build during starting.
The delay allows the engine to run for about 10 sec¬
onds before sensing oil pressure.
2. Sensing Low Pressure: If the system senses low
oil pressure during operation, the engine shuts
down.
3. Restarting: If you try to restart the engine within 5
to 10 seconds after it shuts down, the engine may
NOT start. The system needs 5 to 10 seconds to
reset.
IMPORTANT: If you do restart the engine after such a
shutdown and not corrected the low oil pressure, the
engine runs for about 10 seconds as described above
and then stops.
'Air Conditioner (12,000 Btu)
Battery Charger (20 amp).
Belt Sander (3”).
Chain Saw.
Circular Saw (6-12/”).
Coffee Maker.
'Compressor (1 HP).
'Compressor (3/4 HP).
'Compressor (1/2 HP).
'Freezer.
Disc Sander (9").
Edge Trimmer.
Electric Nail Gun.
Electric Range (one element)
Electric Skillet.
'Furnace Fan (1/3 HP).
Hair Dryer.
Hand Drill (1”).
Hand Drill (1/2”).
Hand Drill (3/8”).
Hand Drill (1/4”).
Hedge Trimmer.
WATTAGE REFERENCE GUIDE
RUNNING WATTS RUNNING WATTS
.1700 Impact Wrench.500
.500 'Jet Pump.800
.1000 Lawn Mower.1200
.1200 Light Bulb.100
.800 to 1000 Microwave Oven.700
.1000 'Milk Cooler.1100
.2000 Oil Burner on Furnace.300
.1800 Oil Fired Space Heater (140,000 Btu).400
.1400 Oil Fired Space Heater (85,000 Btu).225
.500 Oil Fired Space Heater (30,000 Btu).150
.1200 'Paint Sprayer, Airless (1/3 HP).600
.500 Paint Sprayer, Airless (handheld).150
.1200 Radio.50 to 200
.1500 'Refrigerator.600
.1250 Slow Cooker.200
.1200 'Submersible Pump (1-1/2 HP).2800
.1200 "Submersible Pump (1 HP).2000
.1100 'Submersible Pump (1/2 HP).1500
.750 to 1000 Sump Pump.600
.500 'Table Saw (10”).1750 to 2000
.250 Television.200 to 500
.450 * Allow 2-1/2 times the listed watts for starting these devices.
Extended Life Generator
10
