Generac 10000EXL Extended Life Generator
Operation
■ 120/240 Volt, 30 Amp Locking
Type Receptacle _
Use NEMA L14-30P type plug with this receptacle.
You can order one from Generac (Part # 43438). Con¬
nect a 4-wire cord set rated 250 volt at 30 AC amps
(or greater) (Figure 10). You can use the same 4-wire
cord if the you plan only to run a 120 volt load. This
receptacle powers 120/240 volt AC, 60 Hz, single
phase loads requiring up to 3600 watts of power (3.6
kW) at 30 AC Amps for 120 volts; 7200 watts of power
(7.2 kW) at 30 AC amps for 240 volts. The outlet is
protected by a 30 amp push-to-reset circuit breaker.

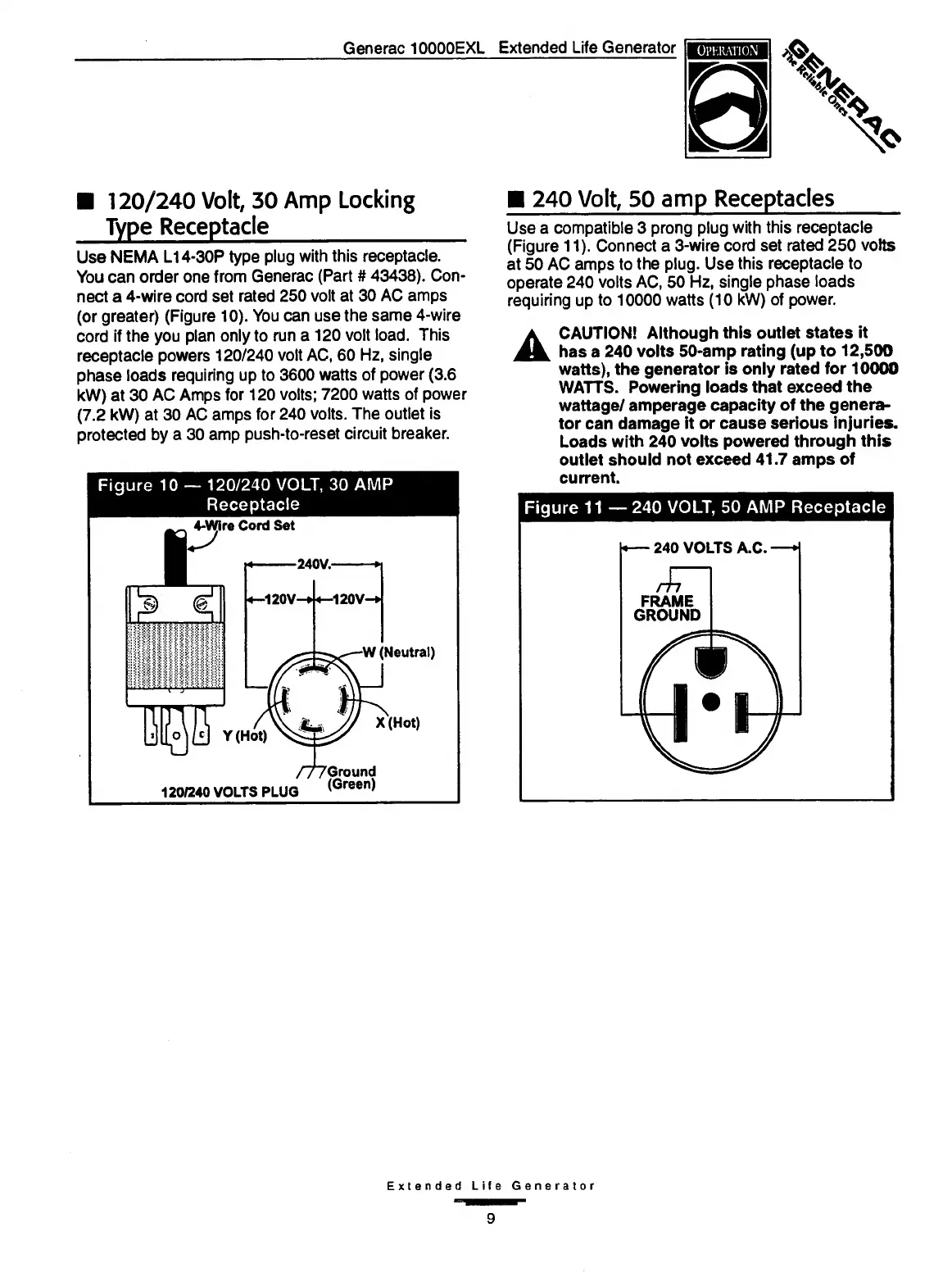

Figure 10 — 120/240 VOLT, 30 AMP
Receptacle
■ 240 Volt, 50 amp Receptacles
Use a compatible 3 prong plug with this receptacle
(Figure 11). Connect a 3-wire cord set rated 250 volts
at 50 AC amps to the plug. Use this receptacle to
operate 240 volts AC, 50 Hz, single phase loads
requiring up to 10000 watts (10 kW) of power.
CAUTION! Although this outlet states it
has a 240 volts 50-amp rating (up to 12,500
watts), the generator is only rated for 10000
WATTS. Powering loads that exceed the
wattage/ amperage capacity of the genera¬
tor can damage it or cause serious injuries.
Loads with 240 volts powered through this
outlet should not exceed 41.7 amps of
current.
Figure 11 — 240 VOLT, 50 AMP Receptacle
