Generac 10000EXL Extended Life Generator

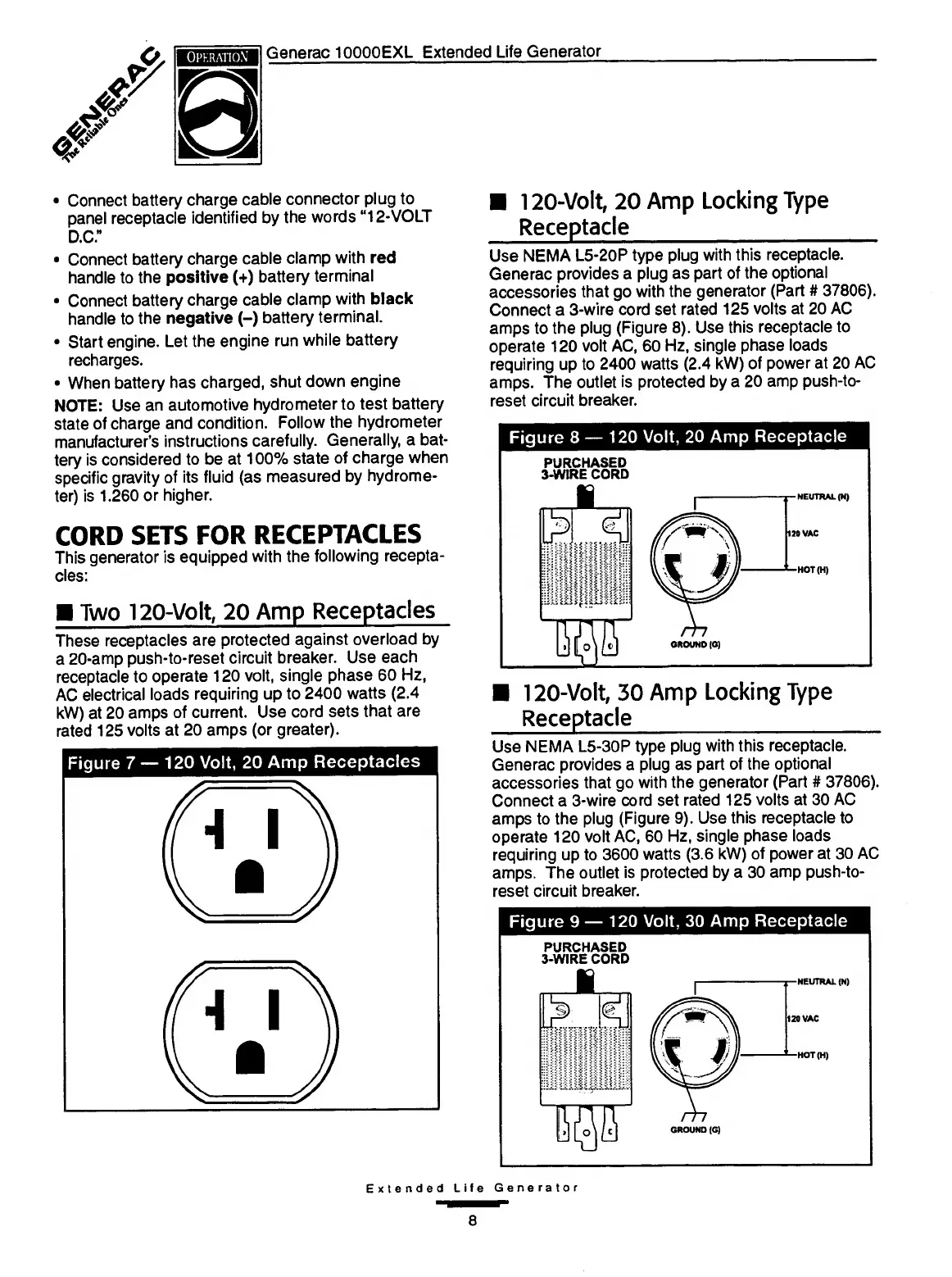

• Connect battery charge cable connector plug to
panel receptacle identified by the words “12-VOLT
D.C.”
• Connect battery charge cable clamp with red
handle to the positive (+) battery terminal
• Connect battery charge cable clamp with black
handle to the negative (-) battery terminal.
• Start engine. Let the engine run while battery
recharges.
• When battery has charged, shut down engine
NOTE: Use an automotive hydrometer to test battery
state of charge and condition. Follow the hydrometer
manufacturer’s instructions carefully. Generally, a bat¬
tery is considered to be at 100% state of charge when
specific gravity of its fluid (as measured by hydrome¬
ter) is 1.260 or higher.
CORD SETS FOR RECEPTACLES
This generator is equipped with the following recepta¬
cles:
■ Two 120-Volt, 20 Amp Receptacles
These receptacles are protected against overload by
a 20-amp push-to-reset circuit breaker. Use each
receptacle to operate 120 volt, single phase 60 Hz,
AC electrical loads requiring up to 2400 watts (2.4
kW) at 20 amps of current. Use cord sets that are
rated 125 volts at 20 amps (or greater).
■ 120-Volt, 20 Amp Locking Type
Receptacle _
Use NEMA L5-20P type plug with this receptacle.
Generac provides a plug as part of the optional
accessories that go with the generator (Part # 37806).
Connect a 3-wire cord set rated 125 volts at 20 AC
amps to the plug (Figure 8). Use this receptacle to
operate 120 volt AC, 60 Hz, single phase loads
requiring up to 2400 watts (2.4 kW) of power at 20 AC
amps. The outlet is protected by a 20 amp push-to-
reset circuit breaker.
Figure 8 — 120 Volt, 20 Amp Receptacle
■ 120-Volt, 30 Amp Locking Type
Receptacle _
Use NEMA L5-30P type plug with this receptacle.
Generac provides a plug as part of the optional
accessories that go with the generator (Part # 37806).
Connect a 3-wire cord set rated 125 volts at 30 AC
amps to the plug (Figure 9). Use this receptacle to
operate 120 volt AC, 60 Hz, single phase loads
requiring up to 3600 watts (3.6 kW) of power at 30 AC
amps. The outlet is protected by a 30 amp push-to-
reset circuit breaker.
Figure 9 — 120 Volt, 30 Amp Receptacle
PURCHASED
3-WIRE CORD
Extended Life Generator
