Generac Portable Products 3200PSI Pressure Washer
Air Cleaner Dry type filter element limits the
amount of dirt and dust that gets in the engine.
Engine RUN/STOP Switch Enables and disables
the ignition system.
Guide Handle Provides ease of handling when
moving or storing pressure washer.
Gun and Wand Assembly Controls the
application of water onto cleaning surface with trigger
device. Includes safety latch.
High Pressure Hose Transfers water under high
pressure to gun assembly.
High Pressure Outlet Connection for high
pressure hose.
Muffler Disperses exhaust gas and quiets engine.
Pressure Regulator Allows you to adjust the
pressure of the outlet stream.
Recoil Starter Pulling the starter grip operates the
recoil starter to crank the engine.
Water Inlet Connection for garden hose.
High Pressure Outlet
Water Inlet
Pressure Regulator
Recoil Starter
Guide Handle
Gun and Wand Assembly
High Pressure Hose
Air Cleaner
Muffler
Engine RUN/STOP
Switch

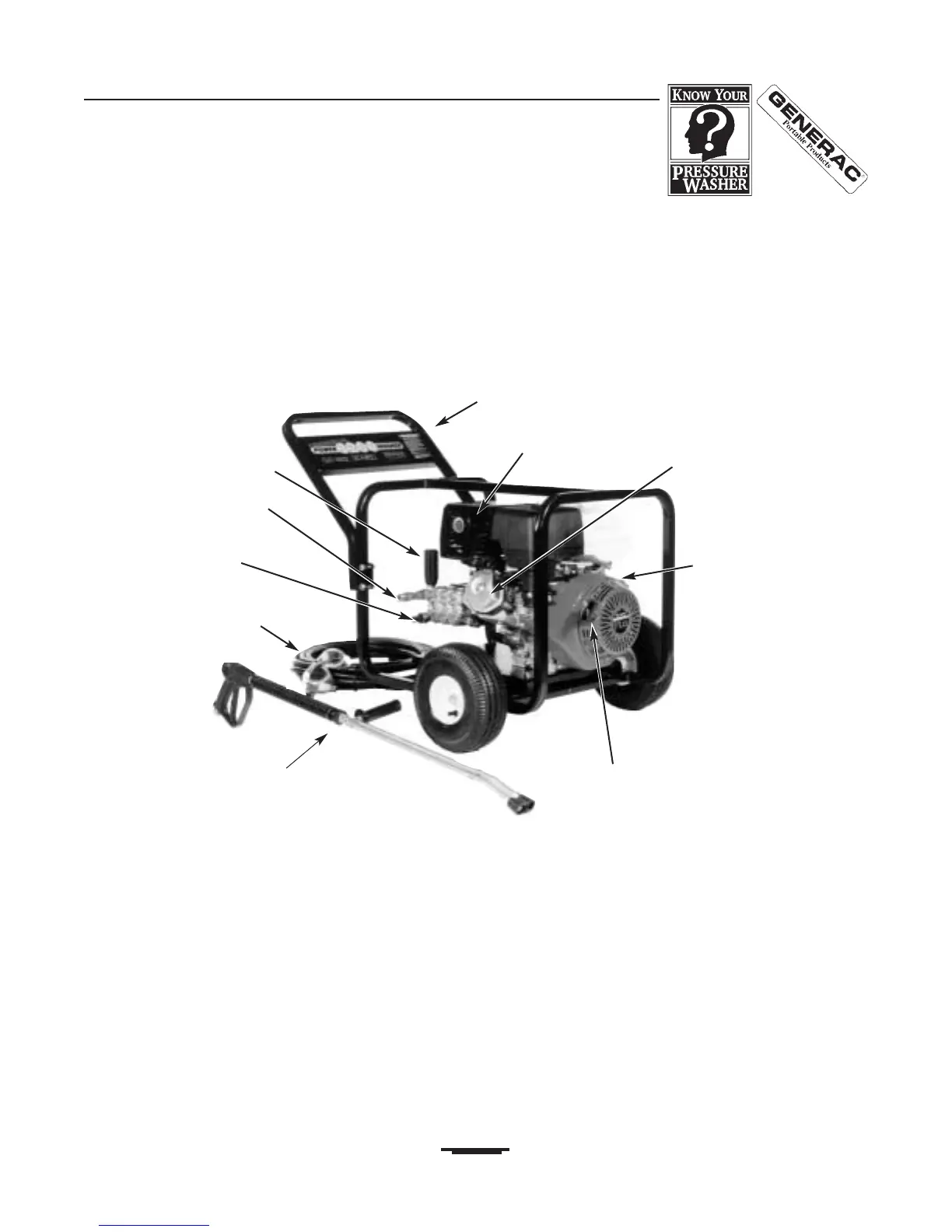

KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your high pressure washer.
Compare this illustration with your high pressure washer to familiarize yourself with the location of the controls.
Save this manual for future reference.
